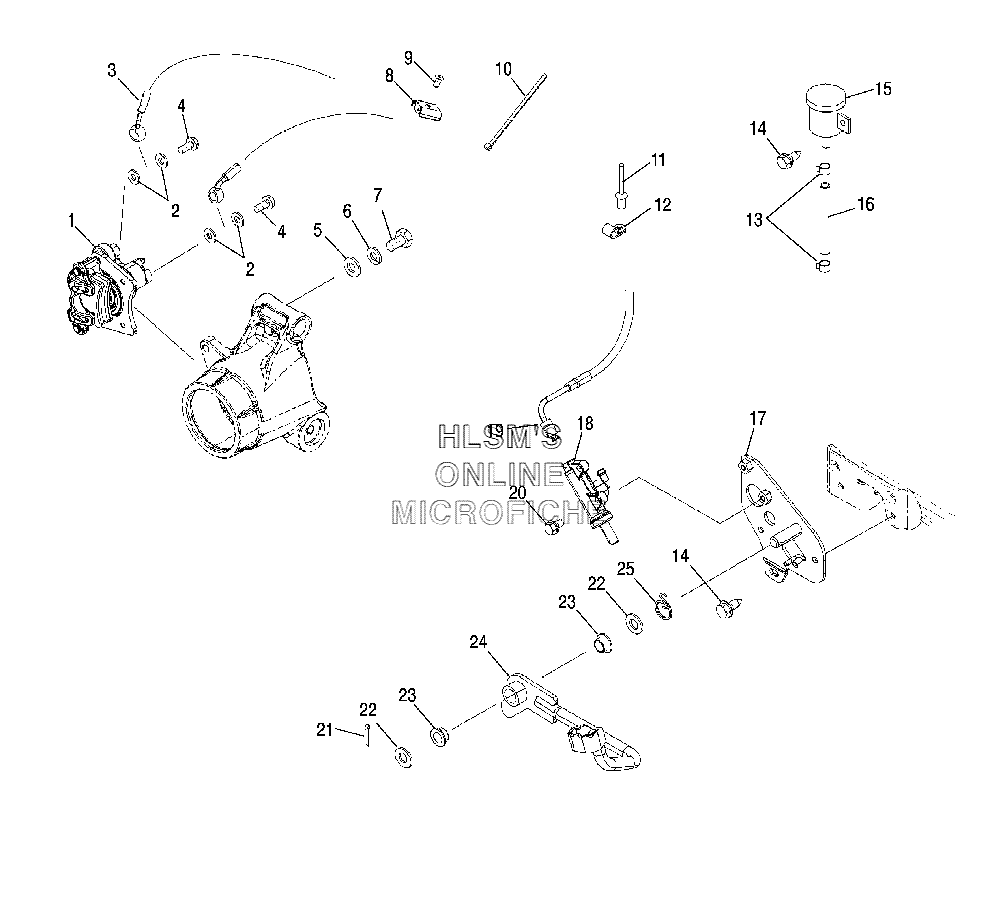

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris Sportsman 800 EFI (06MH76AQ) (NBU SUB CAMO) - 2006 года выпуска`
-
№АртикулНазвание
-
25410988 SEALSEAL
-
41910499 BOLT, BANJO (10MMX1.00)BOLT, BANJO (10MMX1.00)
-
57558402 WASHER, FLATWASHER, FLAT
-
67552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77512365 SCREW, CAPSCREW, CAP
-
87670126 CLIP, RETAINING, DUALCLIP, RETAINING, DUAL
-
97517756 SCREWSCREW
-
107080138 CABLE TIECABLE TIE
-
117621462 RIVETRIVET
-
127080960 CLAMP, CABLE, NYLON (5/16")CLAMP, CABLE, NYLON (5/16")
-
137080003 CLAMP, HOSECLAMP, HOSE
-
147517386 SCREWSCREW
-
151930854 RESERVOIR ASSY., REAR BRAKERESERVOIR ASSY., REAR BRAKE
-
161910438 HOSE, RES.HOSE, RES.
-
171013414-067 BRAKE MOUNT (BLACK)BRAKE MOUNT (BLACK)
-
181910790 MASTER CYLINDER ASSY., BRAKE (REAR)MASTER CYLINDER ASSY., BRAKE (REAR)
-
207515158 SCREWSCREW
-
217661401 PIN, COTTERPIN, COTTER
-
227555919 WASHERWASHER
-
235433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
241015423-067 WELD, BRAKE ROD (BLACK)WELD, BRAKE ROD (BLACK)
-
257041750 SPRING, TORSION, BRAKESPRING, TORSION, BRAKE
-
-2202709 LINE, BREAK KIT REAR (M/C T) (FOOT) (INCL. 2, 4, 19)LINE, BREAK KIT REAR (M/C T) (FOOT) (INCL. 2, 4, 19)
-
-2202644 LINE, BRAKE KIT REAR FROM J/B (HAND) (INCL. 2, 4)LINE, BRAKE KIT REAR FROM J/B (HAND) (INCL. 2, 4)
