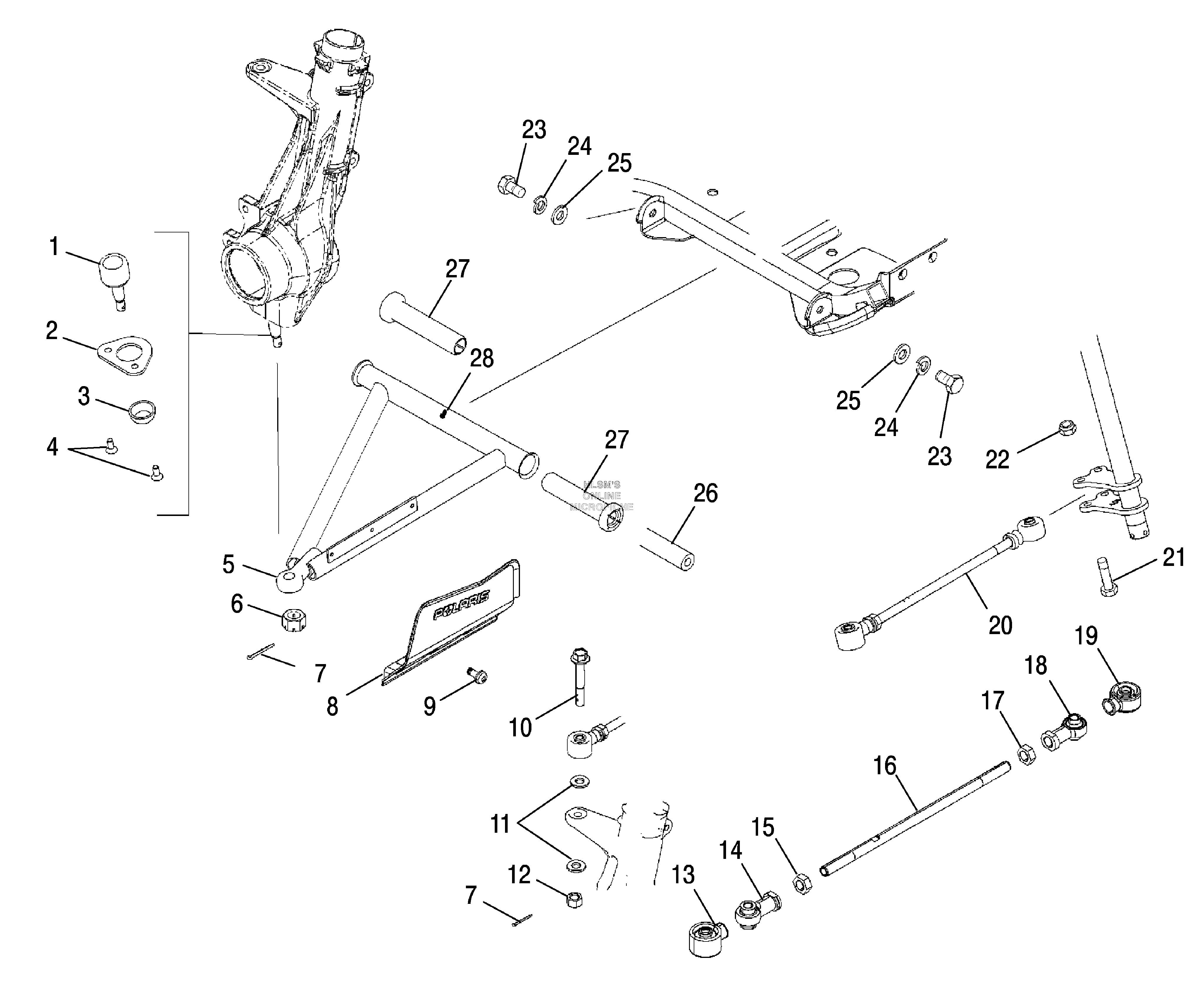

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Sportsman 500 HO EFI (A06MH50AX) (CAMO GREEN METALLIC) - 2006 года выпуска`
-
№АртикулНазвание
-
17080927 BALL-JOINT, 52 DEGBALL-JOINT, 52 DEG
-
25211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
35410548 BOOT, RUBBERBOOT, RUBBER
-
47512284 BOLT, SOCKETBOLT, SOCKET
-
52202906 A-FRAME KIT (LEFT) (INCL. 7, 23, 24, 26, 27)A-FRAME KIT (LEFT) (INCL. 7, 23, 24, 26, 27)
-
52202907 A-FRAME KIT (RIGHT) (INCL. 7, 23, 24, 26, 27)A-FRAME KIT (RIGHT) (INCL. 7, 23, 24, 26, 27)
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD-CV, FRONT (LEFT/BLACK)SHIELD-CV, FRONT (LEFT/BLACK)
-
85435029-070 SHIELD-CV, FRONT (RIGHT/BLACK)SHIELD-CV, FRONT (RIGHT/BLACK)
-
97512084 SCREWSCREW
-
107517909 BOLTBOLT
-
117556099 WASHERWASHER
-
127547177 NUTNUT
-
135411920 BOOT, SEAL, ROD END (10MM) (IF BUILT BEFORE 10/01/05)BOOT, SEAL, ROD END (10MM) (IF BUILT BEFORE 10/01/05)
-
135412929 BOOT, SEAL, ROD END (10MM) (IF BUILT AFTER 10/01/05)BOOT, SEAL, ROD END (10MM) (IF BUILT AFTER 10/01/05)
-
147061054 ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT BEFORE 10/01/05)ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT BEFORE 10/01/05)
-
147061138 ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)ROD-END, 10MM, 1/2-20 (LEFT) (IF BUILT AFTER 10/01/05)
-
157547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
165134242 ROD-TIEROD-TIE
-
177542711 NUT-JAMNUT-JAM
-
187061034 ROD-END, 3/8, 1/2-20 (RIGHT) (44DEG)ROD-END, 3/8, 1/2-20 (RIGHT) (44DEG)
-
187061139 ROD-END, 3/8, 1/2-20 (RIGHT) (44DEG) (IF BUILT AFTER 10/01/05)ROD-END, 3/8, 1/2-20 (RIGHT) (44DEG) (IF BUILT AFTER 10/01/05)
-
195411291 SEAL, BOOT, ROD END (1/2 IN) (IF BUILT BEFORE 10/01/05)SEAL, BOOT, ROD END (1/2 IN) (IF BUILT BEFORE 10/01/05)
-
195412928 BOOT-SEAL, ROD END (1/2 IN) (IF BUILT AFTER 10/01/05)BOOT-SEAL, ROD END (1/2 IN) (IF BUILT AFTER 10/01/05)
-
201821498 TIE ROD ASSY (1/2-20X13.4) (INCL. 14-19) (IF BUILT BEFORE 10/01/05)TIE ROD ASSY (1/2-20X13.4) (INCL. 14-19) (IF BUILT BEFORE 10/01/05)
-
201822851 TIE ROD ASSY (1/2-20X14.16) (INCL. 14-19) (IF BUILT AFTER 10/01/05)TIE ROD ASSY (1/2-20X14.16) (INCL. 14-19) (IF BUILT AFTER 10/01/05)
-
217515415 SCREWSCREW
-
227542439 NUT, NYLOKNUT, NYLOK
-
237512492 SCREWSCREW
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257555832 WASHERWASHER
-
265133806 SHAFT-A-ARMSHAFT-A-ARM
-
275434551 BUSHING-A-ARM, LONG (BLACK)BUSHING-A-ARM, LONG (BLACK)
-
287080433 FITTING, LUBRICATIONFITTING, LUBRICATION
