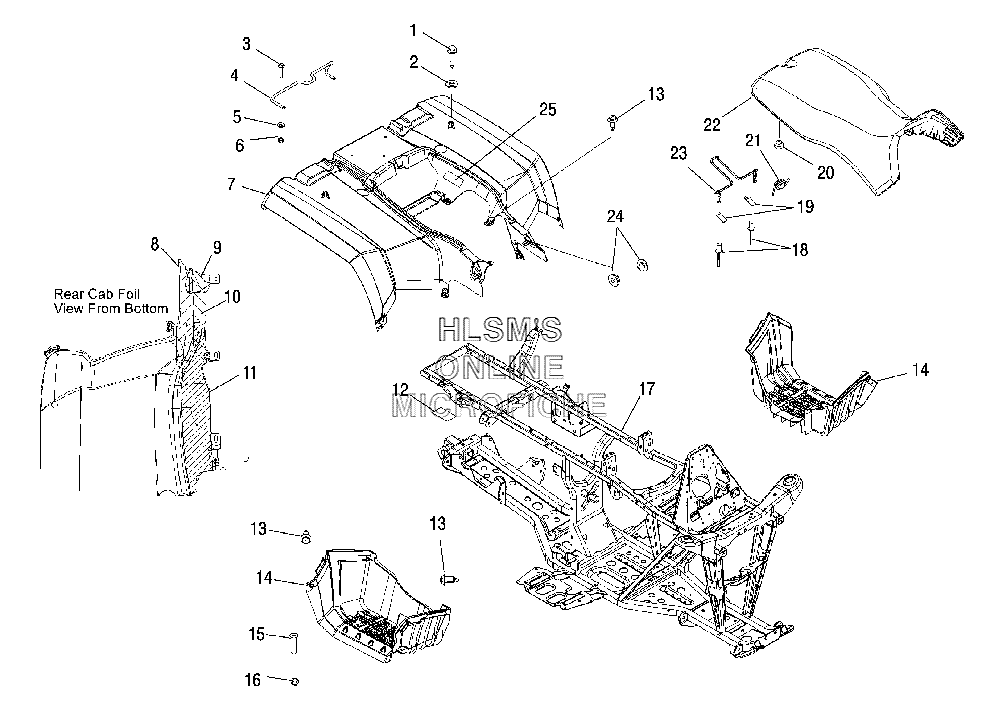

FENDER - REAR W/ SEAT для Polaris Sportsman 500 HO EFI (A06MH50AQ) (SUB CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512095 SCREW
    SCREW
  • 2
    7555798 WASHER
    WASHER
  • 3
    7511930 SCREW
    SCREW
  • 4
    5246076 RETAINER-SEAT LATCH
    RETAINER-SEAT LATCH
  • 5
    7555792 WASHER
    WASHER
  • 6
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 7
    5435664-455 CAB-REAR (NBU SUB CAMO)
    CAB-REAR (NBU SUB CAMO)
  • 8
    5812703 FOIL-FRONT, TOP
    FOIL-FRONT, TOP
  • 8
    5813028 FOIL-REAR CAB, FRONT (IF BUILT AFTER 10/05/05)
    FOIL-REAR CAB, FRONT (IF BUILT AFTER 10/05/05)
  • 9
    5812702 FOIL-FRONT, BOTTOM (IF BUILT BEFORE 10/05/05)
    FOIL-FRONT, BOTTOM (IF BUILT BEFORE 10/05/05)
  • 9
    5813029 FOIL-REAR CAB, EDGE (IF BUILT AFTER 10/05/05)
    FOIL-REAR CAB, EDGE (IF BUILT AFTER 10/05/05)
  • 10
    5813030 FOIL-REAR CAB, MIDDLE (IF BUILT AFTER 10/05/05)
    FOIL-REAR CAB, MIDDLE (IF BUILT AFTER 10/05/05)
  • 11
    5812701 FOIL (IF BUILT BEFORE 10/05/05)
    FOIL (IF BUILT BEFORE 10/05/05)
  • 11
    5813043 FOIL-REAR CAB, REAR (IF BUILT AFTER 10/05/05)
    FOIL-REAR CAB, REAR (IF BUILT AFTER 10/05/05)
  • 12
    7170911 DECAL-HITCH (1225 LBS.)
    DECAL-HITCH (1225 LBS.)
  • 13
    7661855 RIVET-TUFLOK
    RIVET-TUFLOK
  • 14
    5435354-070 FOOTWELL (LEFT/BLACK)
    FOOTWELL (LEFT/BLACK)
  • 14
    5435355-070 FOOTWELL (RIGHT/BLACK)
    FOOTWELL (RIGHT/BLACK)
  • 15
    7517230 SCREW
    SCREW
  • 16
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 17
    1015330-067 WELD-MAIN FRAME (BLACK)
    WELD-MAIN FRAME (BLACK)
  • 18
    7621403 BLIND RIVET
    BLIND RIVET
  • 19
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 20
    5412067 BUMPER-RUBBER
    BUMPER-RUBBER
  • 21
    7041370 SPRING, LATCH
    SPRING, LATCH
  • 22
    2683661-070 SEAT ASSY (BLACK)
    SEAT ASSY (BLACK)
  • 22
    2683434-070 COVERING-SEAT (BLACK)
    COVERING-SEAT (BLACK)
  • 23
    1040387 LATCH, SEAT
    LATCH, SEAT
  • 24
    5412623 GROMMET-RUBBER MOUNT
    GROMMET-RUBBER MOUNT
  • 25
    7172921 DECAL-FILTER CLEANING
    DECAL-FILTER CLEANING
