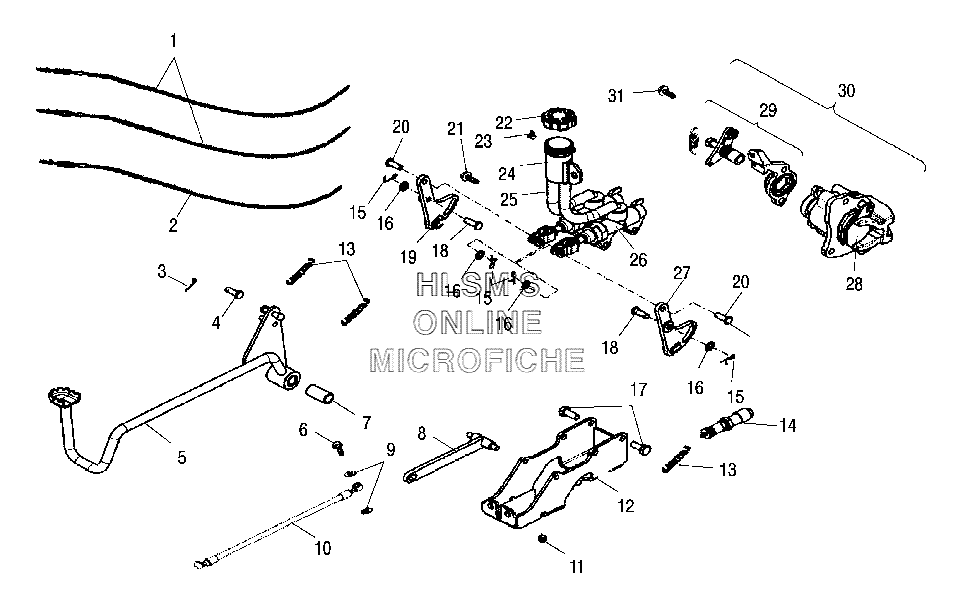

BRAKE - REAR для Polaris Sawtooth Quad (A06PB20VA) (CAMO GREEN METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0453272 CABLE, BRAKE, FRONT
    CABLE, BRAKE, FRONT
  • 2
    0452873 CABLE, HAND BRAKE, REAR
    CABLE, HAND BRAKE, REAR
  • 3
    0450719 PIN, COTTER
    PIN, COTTER
  • 4
    0453363 BOLT
    BOLT
  • 5
    0453273 LEVER, BRAKE, FOOT
    LEVER, BRAKE, FOOT
  • 6
    0452871 BOLT, BANJO
    BOLT, BANJO
  • 7
    0453274 BUSHING
    BUSHING
  • 8
    0453278 ROD, CONNECTING
    ROD, CONNECTING
  • 9
    0453313 WASHER, PLAIN
    WASHER, PLAIN
  • 10
    0453301 BRAKE HOSE
    BRAKE HOSE
  • 11
    0450282 NUT, LOCK
    NUT, LOCK
  • 12
    0453298 PLATE, MOUNTING, MASTER CYLINDER
    PLATE, MOUNTING, MASTER CYLINDER
  • 13
    0452686 SPRING, BRAKE LEVER
    SPRING, BRAKE LEVER
  • 14
    0453015 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 15
    0453281 PIN
    PIN
  • 16
    0453279 WASHER, PLAIN
    WASHER, PLAIN
  • 17
    0453126 BOLT, HEX, W/LOCK WASHER
    BOLT, HEX, W/LOCK WASHER
  • 18
    0453280 PIN
    PIN
  • 19
    0453276 LEVER, ARM (RIGHT)
    LEVER, ARM (RIGHT)
  • 20
    0453282 BOLT
    BOLT
  • 21
    0452816 BOLT, FLANGE, HEX
    BOLT, FLANGE, HEX
  • 22
    0453023 CAP ASSY., BRAKE RESERVOIR (REAR)
    CAP ASSY., BRAKE RESERVOIR (REAR)
  • 23
    0453300 CLAMP
    CLAMP
  • 24
    0453299 RESERVOIR, BRAKE
    RESERVOIR, BRAKE
  • 25
    0453277 HOSE, BRAKE LINE
    HOSE, BRAKE LINE
  • 26
    0453293 LENS, SIGNAL
    LENS, SIGNAL
  • 27
    0453275 LEVER, ARM (LEFT)
    LEVER, ARM (LEFT)
  • 28
    0453200 PAD, BRAKE, REAR
    PAD, BRAKE, REAR
  • 29
    0453199 ARM ASSY., BRAKE LEVER
    ARM ASSY., BRAKE LEVER
  • 30
    0453201 CALIPER ASY. (INCL. 28, 29)
    CALIPER ASY. (INCL. 28, 29)
  • 31
    0452888 BOLT, HEX, WASHER FACE
    BOLT, HEX, WASHER FACE
