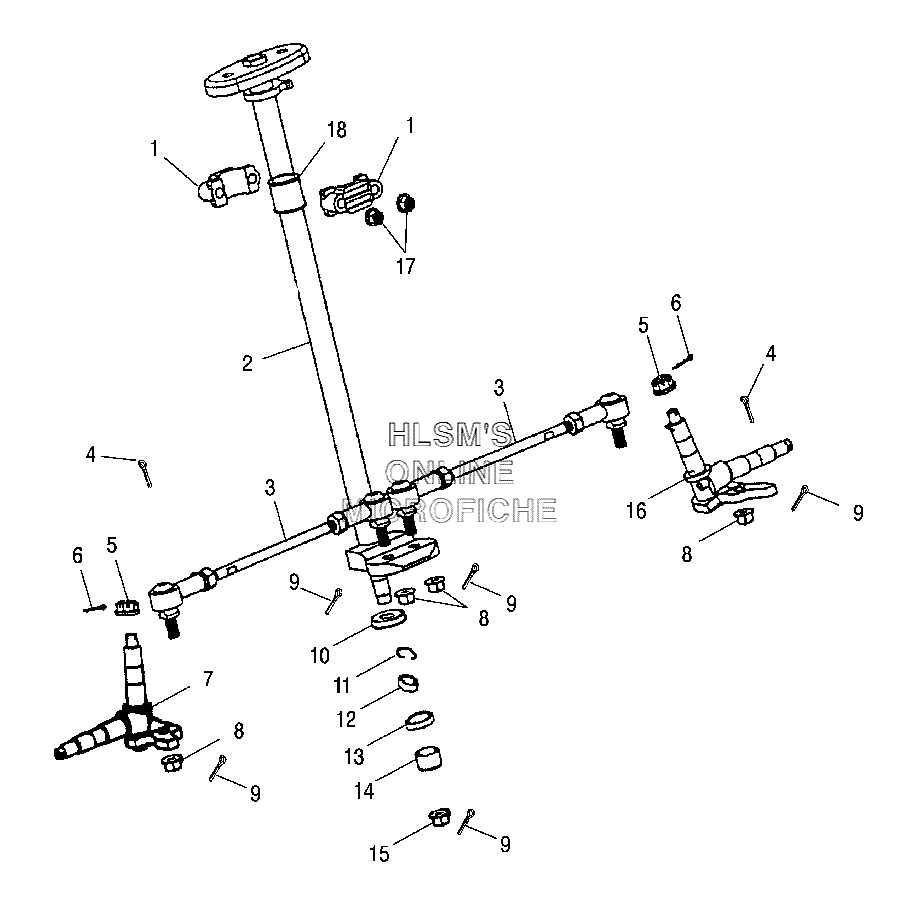

STEERING POST для Polaris Predator 90 (A06KA09CC) (BLACK METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
10450505 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
20450839-067 STEERING, POSTSTEERING, POST
-
30451690 TIE ROD ASSYTIE ROD ASSY
-
40450395 PIN COTTERPIN COTTER
-
50450502 NUT LOCKNUT LOCK
-
60450507 PIN COTTERPIN COTTER
-
70450916 KNUCKLE (LEFT)KNUCKLE (LEFT)
-
80450276 NUT LOCKNUT LOCK
-
90450719 PIN COTTERPIN COTTER
-
100450491 SEAL OILSEAL OIL
-
110450161 CIRCLIP INTERNALCIRCLIP INTERNAL
-
120450493 BEARING BALLBEARING BALL
-
130450389 SEAL OILSEAL OIL
-
140450390 SPACER (INNER)SPACER (INNER)
-
150450878 NUT LOCK, NYLONNUT LOCK, NYLON
-
160450917 KNUCKLE (RIGHT)KNUCKLE (RIGHT)
-
170450268 NUT FLANGENUT FLANGE
-
180450499 SLEEVE, STEERING, SHAFTSLEEVE, STEERING, SHAFT
