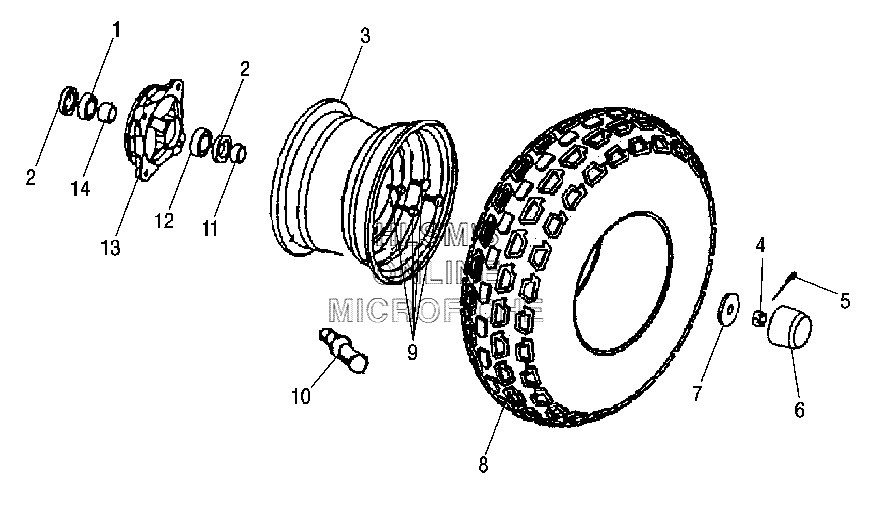

WHEEL - FRONT для Polaris Predator 90 (A06KA09CB) (BRIGHT WHITE) - 2006 года выпуска`
-
№АртикулНазвание
-
10450393 BEARINGBEARING
-
20450389 SEAL OILSEAL OIL
-
30450386 RIM WHEELRIM WHEEL
-
40450394 NUT LOCKNUT LOCK
-
50450395 PIN COTTERPIN COTTER
-
60450829 CAP RUBBERCAP RUBBER
-
70450397 WASHERWASHER
-
80450870 TIRE (19X7 8)TIRE (19X7 8)
-
80453180 TIRE (18X7 8)TIRE (18X7 8)
-
90450398 BOLT CARRIAGEBOLT CARRIAGE
-
100450401 VALVE, RIMVALVE, RIM
-
110450391 SPACER, OUTERSPACER, OUTER
-
120450392 BEARINGBEARING
-
130453047 DRUM BRAKE (FRONT)DRUM BRAKE (FRONT)
-
140450390 SPACER (INNER)SPACER (INNER)
