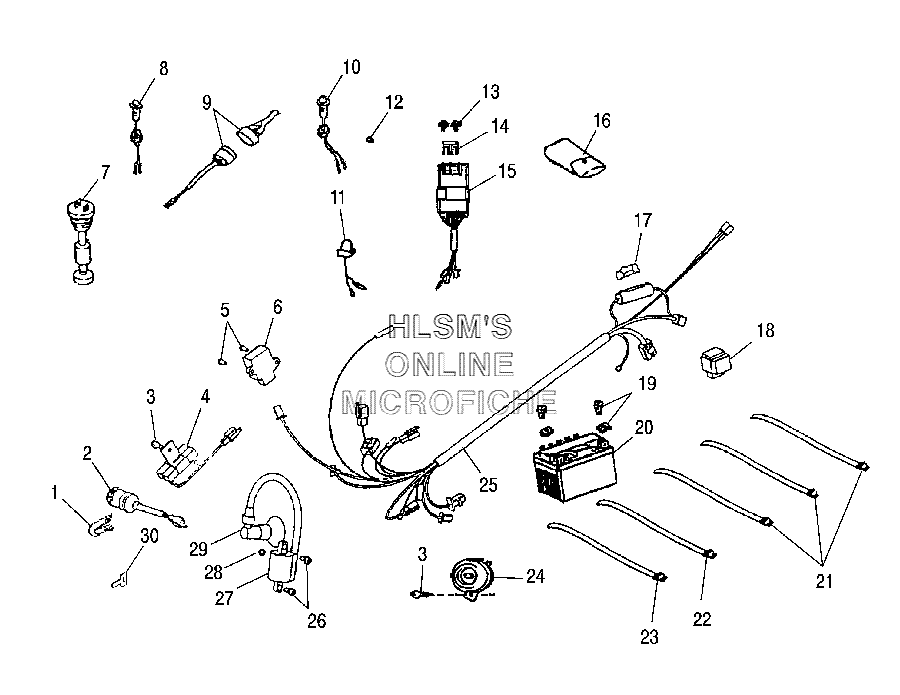

ELECTRICAL COMPONENTS для Polaris Predator 90 (A06KA09CA) (INDY RED) - 2006 года выпуска`
-
№АртикулНазвание
-
10450886 CLIP, MAIN SWITCHCLIP, MAIN SWITCH
-
20450549 SWITCH, IGNITIONSWITCH, IGNITION
-
30450701 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
40450554 RESISTOR ASSYRESISTOR ASSY
-
50450057 BOLT PAN, PHILLIPBOLT PAN, PHILLIP
-
60452061 REGULATOR VOLTAGEREGULATOR VOLTAGE
-
70453055 GAUGE OIL LEVEL (89MM)GAUGE OIL LEVEL (89MM)
-
80452190 INDICATOR NEUTRALINDICATOR NEUTRAL
-
90451693 SWITCH, SAFETYSWITCH, SAFETY
-
100452189 INDICATOR REVERSEINDICATOR REVERSE
-
110451710 LIGHT, WARNING, LOW OILLIGHT, WARNING, LOW OIL
-
120450309 BOLT HEXAGONBOLT HEXAGON
-
130451020 SCREW PHILLIPSSCREW PHILLIPS
-
140451019 JUMPERJUMPER
-
150452187 CDI UNIT ASSYCDI UNIT ASSY
-
160450563 BAG, TOOLBAG, TOOL
-
170450842 FUSE (7.5 AMP)FUSE (7.5 AMP)
-
180450555 RELAY, STARTER, ASSYRELAY, STARTER, ASSY
-
190450888 BOLT/NUT, BATTERYBOLT/NUT, BATTERY
-
200451043 BATTERY, YOUTHBATTERY, YOUTH
-
210450559 STRAPSTRAP
-
220450721 STRAPSTRAP
-
230450742 STRAPSTRAP
-
240451695 HORNHORN
-
250453042 HARNESS MAIN, WIREHARNESS MAIN, WIRE
-
260450556 BOLT HEXBOLT HEX
-
270450753 IGNITION COIL ASSY. (INCL. 29)IGNITION COIL ASSY. (INCL. 29)
-
280451018 CDI BOX ASSYCDI BOX ASSY
-
290451162 COVER SPARK PLUG ASSY (CAP AND BASE)COVER SPARK PLUG ASSY (CAP AND BASE)
-
300453372 KEY BLANK, 2006KEY BLANK, 2006
-
300453143 KEY BLANK, 2006KEY BLANK, 2006
