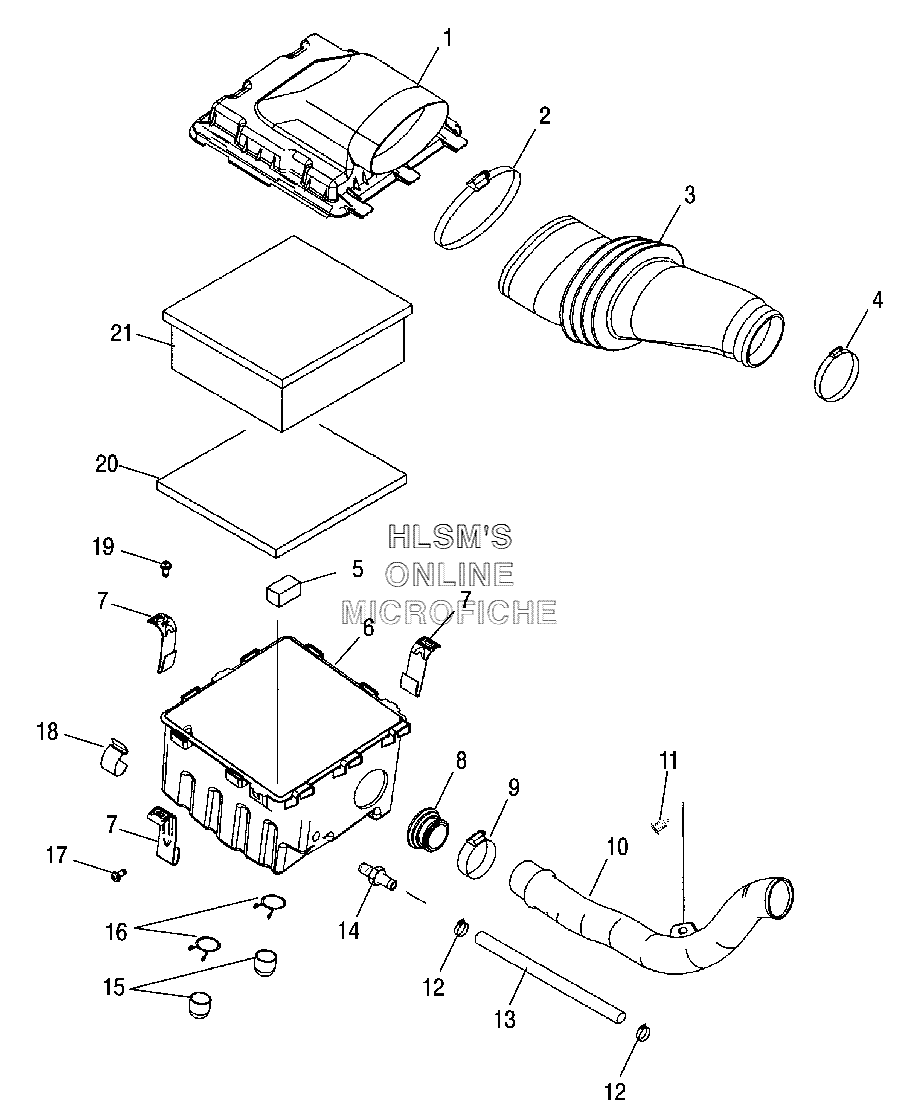

AIR BOX ASSY. для Polaris Predator 500 (A06GJ50AB) (WHITE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5435990 LID-AIRBOX
    LID-AIRBOX
  • 2
    7081041 CLAMP-AIRBOX
    CLAMP-AIRBOX
  • 3
    5434472 DUCT-AIRBOX/CARB
    DUCT-AIRBOX/CARB
  • 4
    7080413 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 5
    5812361 FILTER-CRANKCASE
    FILTER-CRANKCASE
  • 6
    5434448 HOUSING-AIR BOX
    HOUSING-AIR BOX
  • 7
    5334128 BRACKET-AIR BOX
    BRACKET-AIR BOX
  • 8
    5412221 BOOT-AIR BOX
    BOOT-AIR BOX
  • 9
    7080140 CLAMP
    CLAMP
  • 10
    5434450 DUCT-INTAKE, AIR BOX
    DUCT-INTAKE, AIR BOX
  • 11
    7670090 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 12
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    8450096-100 LINE-FUEL GOODYEAR
    LINE-FUEL GOODYEAR
  • 14
    7052336 FITTING (1/8NPT-1/2 BARB)
    FITTING (1/8NPT-1/2 BARB)
  • 15
    5411765 CAP, DRAIN
    CAP, DRAIN
  • 16
    7080865 CLAMP, SINGLE WIRE
    CLAMP, SINGLE WIRE
  • 17
    7518165 SCREW
    SCREW
  • 18
    7670117 CLIP
    CLIP
  • 19
    7518196 SCREW
    SCREW
  • 20
    5812328 FOAM-AIRBOX
    FOAM-AIRBOX
  • 21
    5830226 FILTER-AIR BOX
    FILTER-AIR BOX
