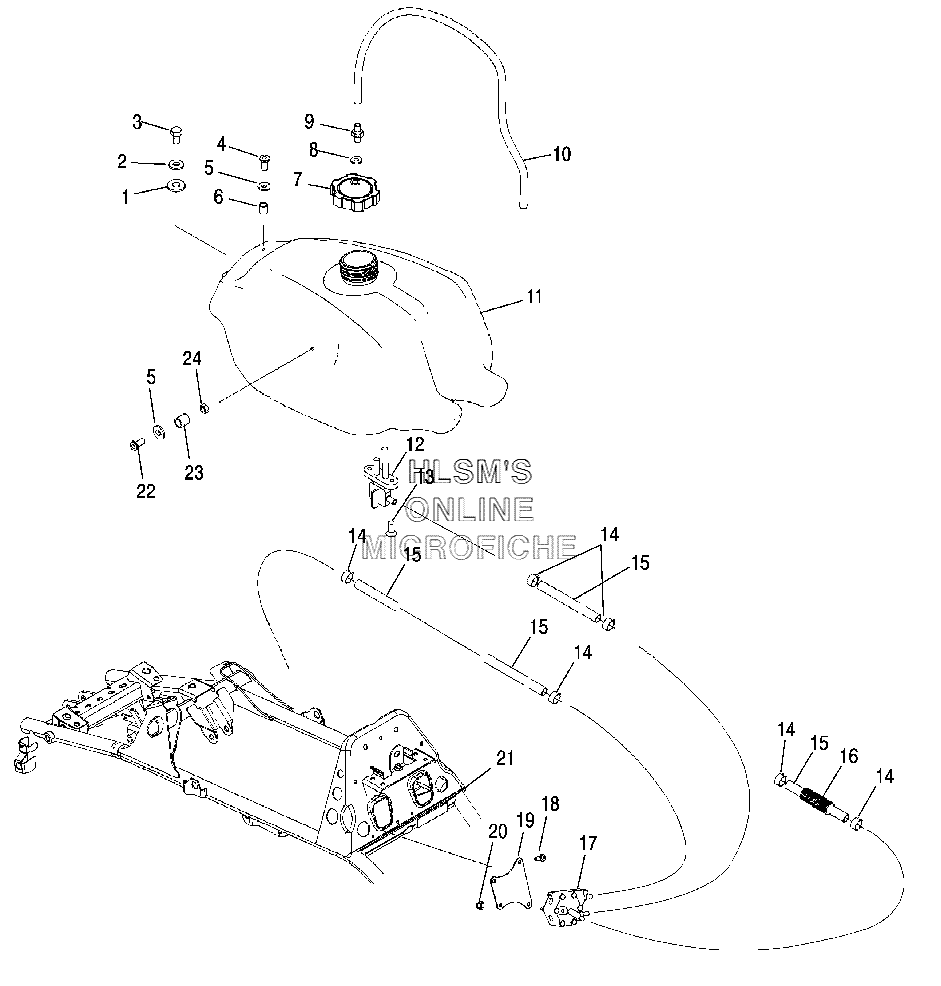

FUEL TANK для Polaris Predator 500 (A06GJ50AA) (INDY RED) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 2
    7552606 WASHER
    WASHER
  • 3
    7515321 BOLT
    BOLT
  • 4
    7515166 SCREW
    SCREW
  • 5
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 6
    5334283 SPACER
    SPACER
  • 7
    5434736 CAP-FUEL TANK, VENTED (INCL. 8, 9, 10)
    CAP-FUEL TANK, VENTED (INCL. 8, 9, 10)
  • 11
    2520271 FUEL TANK ASSY (INCL. 12)
    FUEL TANK ASSY (INCL. 12)
  • 11
    5434452 FUEL TANK
    FUEL TANK
  • 12
    7052331 VALVE-FUEL, ON/OFF/RESERVE
    VALVE-FUEL, ON/OFF/RESERVE
  • 13
    7515136 SCREW
    SCREW
  • 14
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    8450103 FUEL HOSE (150 CM)
    FUEL HOSE (150 CM)
  • 16
    8360052-305 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 17
    3088070 FUEL PUMP ASSY
    FUEL PUMP ASSY
  • 18
    7512084 SCREW
    SCREW
  • 19
    5246593 BRACKET-MOUNT, FUEL PUMP
    BRACKET-MOUNT, FUEL PUMP
  • 20
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 21
    5521131 TRIM, EDGE (6FT) (BLACK)
    TRIM, EDGE (6FT) (BLACK)
  • 22
    7518243 SCREW
    SCREW
  • 23
    5435065 SPACER, NYLON
    SPACER, NYLON
  • 24
    7542105 NUT HEX
    NUT HEX
