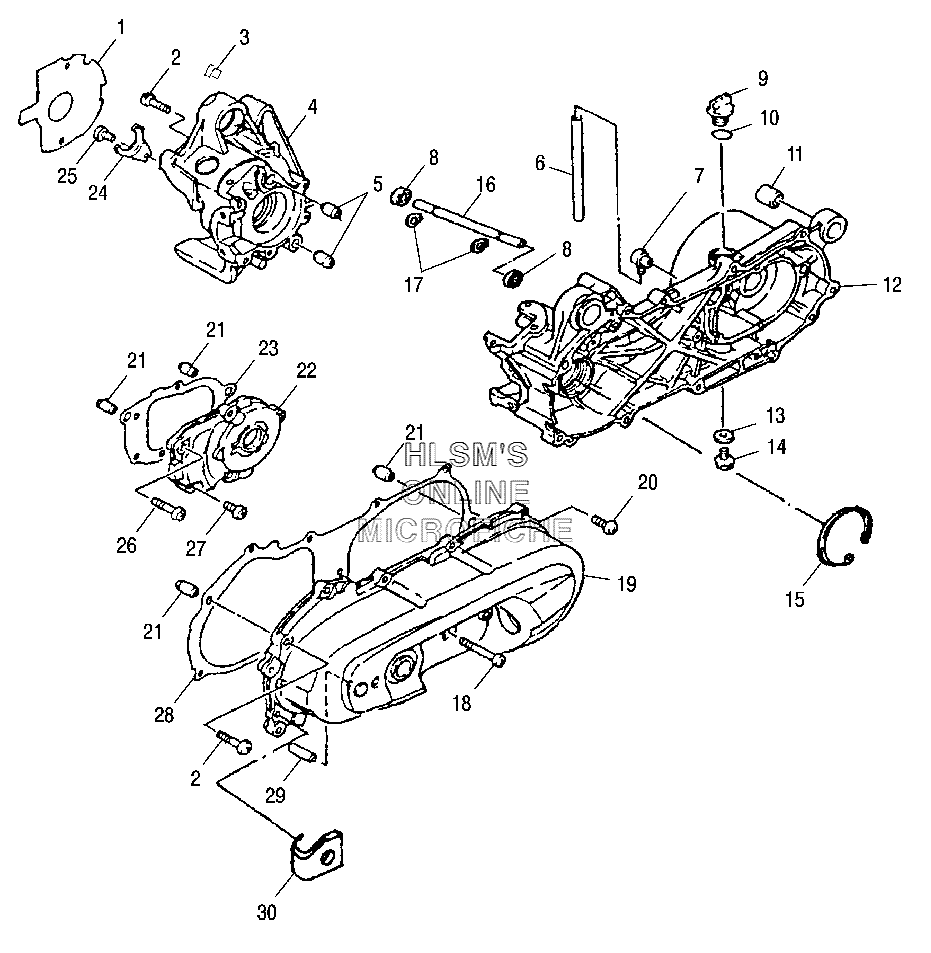

CRANKCASE для Polaris Predator 50 (A06KA05CB) (BRIGHT WHITE) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0450159 GASKET GENERATOR
    GASKET GENERATOR
  • 2
    0450138 BOLT SOCKET
    BOLT SOCKET
  • 3
    0450170 PLUG RUBBER
    PLUG RUBBER
  • 4
    0451741 COVER CRANKCASE (RIGHT)
    COVER CRANKCASE (RIGHT)
  • 5
    0450137 PIN DOWEL
    PIN DOWEL
  • 6
    0451670 HOSE, BREATHER
    HOSE, BREATHER
  • 7
    0450133 HEAD BREATHER, HOSE
    HEAD BREATHER, HOSE
  • 8
    0451740 BEARING
    BEARING
  • 9
    0451813 PLUG OIL
    PLUG OIL
  • 10
    0450154 O-RING
    O-RING
  • 11
    0450132 BUSHING, RUBBER
    BUSHING, RUBBER
  • 12
    0451094 CRANKCASE (LEFT)
    CRANKCASE (LEFT)
  • 13
    0450156 WASHER
    WASHER
  • 14
    0450298 BOLT HEXAGON
    BOLT HEXAGON
  • 15
    0450162 CIRCLIP INTERNAL
    CIRCLIP INTERNAL
  • 16
    0451742 SHAFT CRANKCASE
    SHAFT CRANKCASE
  • 17
    0450198 CIRCLIP EXTERNAL
    CIRCLIP EXTERNAL
  • 18
    0450151 BOLT SOCKET, HEXAGON
    BOLT SOCKET, HEXAGON
  • 19
    0451743 COVER CRANKCASE (LEFT)
    COVER CRANKCASE (LEFT)
  • 20
    0450148 BOLT SOCKET, HEXAGON
    BOLT SOCKET, HEXAGON
  • 21
    0450142 PIN DOWEL
    PIN DOWEL
  • 22
    0450139 COVER MISSION
    COVER MISSION
  • 23
    0450140 GASKET COVER, MISSION
    GASKET COVER, MISSION
  • 24
    0450157 BRACKET OIL SEAL
    BRACKET OIL SEAL
  • 25
    0450158 BOLT SOCKET, HEXAGON
    BOLT SOCKET, HEXAGON
  • 26
    0450143 BOLT PAN, SOCKET
    BOLT PAN, SOCKET
  • 27
    0450039 BOLT SOCKET
    BOLT SOCKET
  • 28
    0450141 GASKET CRANKCASE COVER (LEFT)
    GASKET CRANKCASE COVER (LEFT)
  • 29
    0450147 SHAFT
    SHAFT
  • 30
    0450160 BRACKET CARBURETOR TUBE
    BRACKET CARBURETOR TUBE
