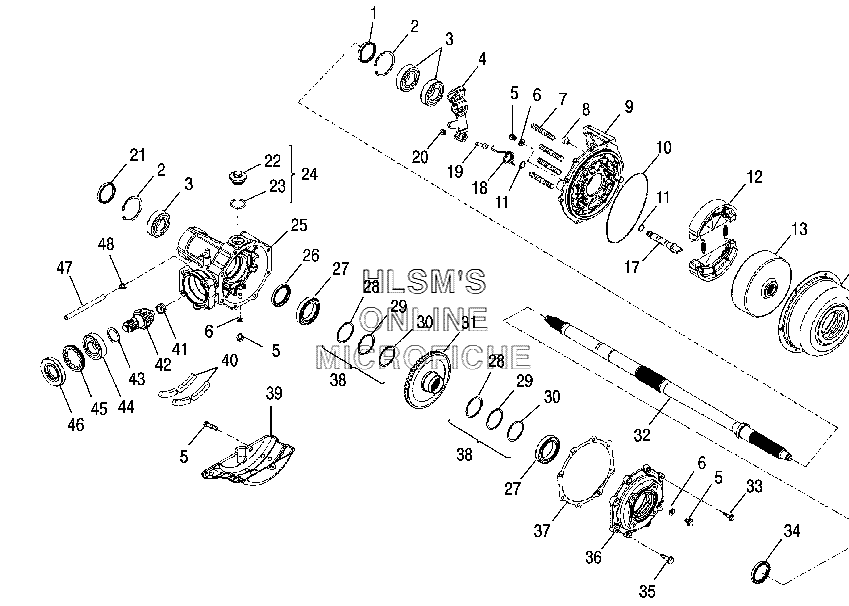

WHEEL - REAR W/ AXLE для Polaris Phoenix 200 (A06PB20LE) - 2006 года выпуска
-
№АртикулНазвание
-
10452718 O-RINGO-RING
-
20452717 RETAINERRETAINER
-
30452715 BEARINGBEARING
-
40453253 BRACKETBRACKET
-
50452126 BOLT, HEX, WASHER FACEBOLT, HEX, WASHER FACE
-
60452712 WASHER, FLATWASHER, FLAT
-
70452714 STUD, BOLTSTUD, BOLT
-
80452775 CAP, RUBBERCAP, RUBBER
-
90452711 PLATE, BRAKEPLATE, BRAKE
-
100452710 O-RINGO-RING
-
110452708 O-RINGO-RING
-
120452705 BRAKE SHOE ASSY., REARBRAKE SHOE ASSY., REAR
-
130452702 DRUM, BRAKEDRUM, BRAKE
-
140452701-385 COVER, DRUMCOVER, DRUM
-
150452720 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
160452700 SEALSEAL
-
170452706 REAR BRAKE SHAFTREAR BRAKE SHAFT
-
180452722 SPRINGSPRING
-
190451704 BOLT, HEX FLANGEBOLT, HEX FLANGE
-
200450150 NUT, FLANGE, HEXNUT, FLANGE, HEX
-
210452752 SEAL, OILSEAL, OIL
-
220452368 PLUG, DRAIN, OILPLUG, DRAIN, OIL
-
230452371 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
240452754 CAP ASSY. (INCL. 22, 23)CAP ASSY. (INCL. 22, 23)
-
250453148 GEARCASE, FINALGEARCASE, FINAL
-
260452737 SEAL, OILSEAL, OIL
-
270452730 BEARINGBEARING
-
280452734 SHIMSHIM
-
290452733 SHIMSHIM
-
300452732 SHIMSHIM
-
310452736 RING GEARRING GEAR
-
320452751 AXLEAXLE
-
330452749 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
340452726 SEAL, OILSEAL, OIL
-
350452747 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
360453147 COVER, GEARCASE, FINALCOVER, GEARCASE, FINAL
-
370452729 GASKET, COVERGASKET, COVER
-
380452731 SHIM ASSY.SHIM ASSY.
-
390452757-385 PLATE, GEAR CASE (SILVER)PLATE, GEAR CASE (SILVER)
-
400452756 SPACER, RUBBERSPACER, RUBBER
-
410452739 BEARING, NEEDLEBEARING, NEEDLE
-
420452740 GEAR, PINIONGEAR, PINION
-
430452741 SHIM, PINION GEARSHIM, PINION GEAR
-
440452742 BEARINGBEARING
-
450452743 NUTNUT
-
460452745 SEAL, OILSEAL, OIL
-
470452698 HOSE, BREATHERHOSE, BREATHER
-
480452758 CIR CLIPCIR CLIP
