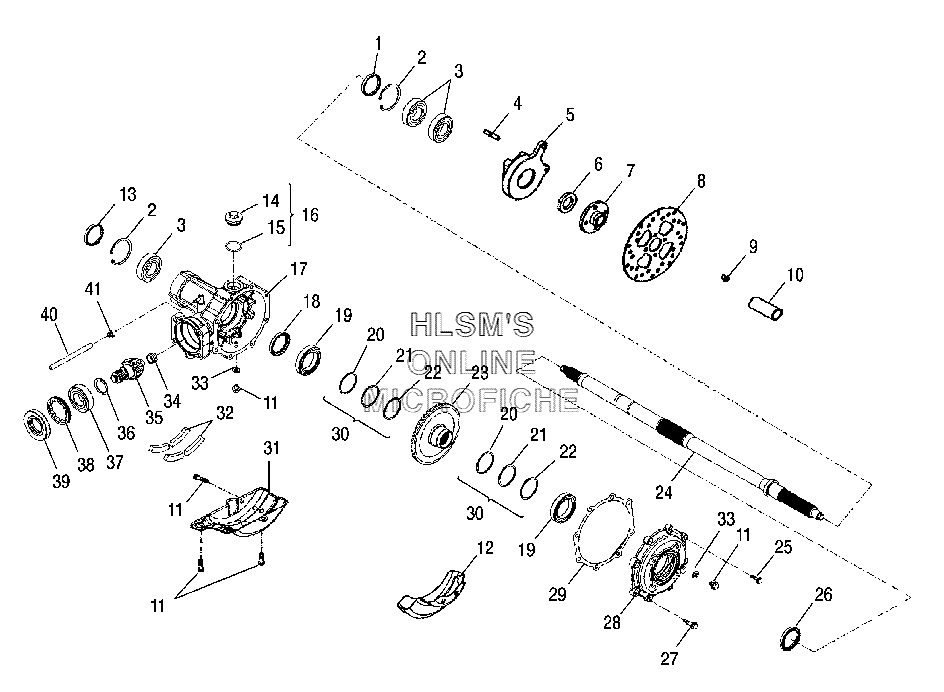

WHEEL - REAR W/ AXLE для Polaris Pheonix 200 Quadricycle (A06PB20EA) - 2006 года выпуска`
-
№АртикулНазвание
-
10452718 O-RINGO-RING
-
20452717 RETAINERRETAINER
-
30452715 BEARINGBEARING
-
40452906 B0LT, STUD, REAR BRAKEB0LT, STUD, REAR BRAKE
-
50452900 SEAT ASSY., REAR AXLESEAT ASSY., REAR AXLE
-
60452901 SEAL, OILSEAL, OIL
-
70452902 MOUNT, BRAKE DISCMOUNT, BRAKE DISC
-
80452903 DISC, BRAKE, REARDISC, BRAKE, REAR
-
90452904 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
100452905 SPACER, COLLAR, REAR BRAKESPACER, COLLAR, REAR BRAKE
-
110452126 BOLT, HEX, WASHER FACEBOLT, HEX, WASHER FACE
-
120452909 COVER, GEAR CASECOVER, GEAR CASE
-
130452752 SEAL, OILSEAL, OIL
-
140452368 PLUG, DRAIN, OILPLUG, DRAIN, OIL
-
150452371 O-RING, DRAIN PLUGO-RING, DRAIN PLUG
-
160452754 CAP ASSY. (INCL. 14, 15)CAP ASSY. (INCL. 14, 15)
-
170453148 GEARCASE, FINALGEARCASE, FINAL
-
180452737 SEAL, OILSEAL, OIL
-
190452730 BEARINGBEARING
-
200452732 SHIMSHIM
-
210452733 SHIMSHIM
-
220452734 SHIMSHIM
-
230452736 RING GEARRING GEAR
-
240452907 AXLE, PHOENIX QUADAXLE, PHOENIX QUAD
-
250452749 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
260452726 SEAL, OILSEAL, OIL
-
270452747 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
280453147 COVER, GEARCASE FINALCOVER, GEARCASE FINAL
-
290452729 GASKET, COVERGASKET, COVER
-
300452731 SHIM ASSY.SHIM ASSY.
-
310452757 PLATE, GEAR CASEPLATE, GEAR CASE
-
320452756 SPACER, RUBBERSPACER, RUBBER
-
330452712 WASHER, FLATWASHER, FLAT
-
340452739 BEARING, NEEDLEBEARING, NEEDLE
-
350452740 GEAR, PINIONGEAR, PINION
-
360452741 SHIM, PINION GEARSHIM, PINION GEAR
-
370452742 BEARINGBEARING
-
380452743 NUTNUT
-
390452745 SEAL, OILSEAL, OIL
-
400452698 HOSE, BREATHERHOSE, BREATHER
-
410452758 CIR CLIPCIR CLIP
