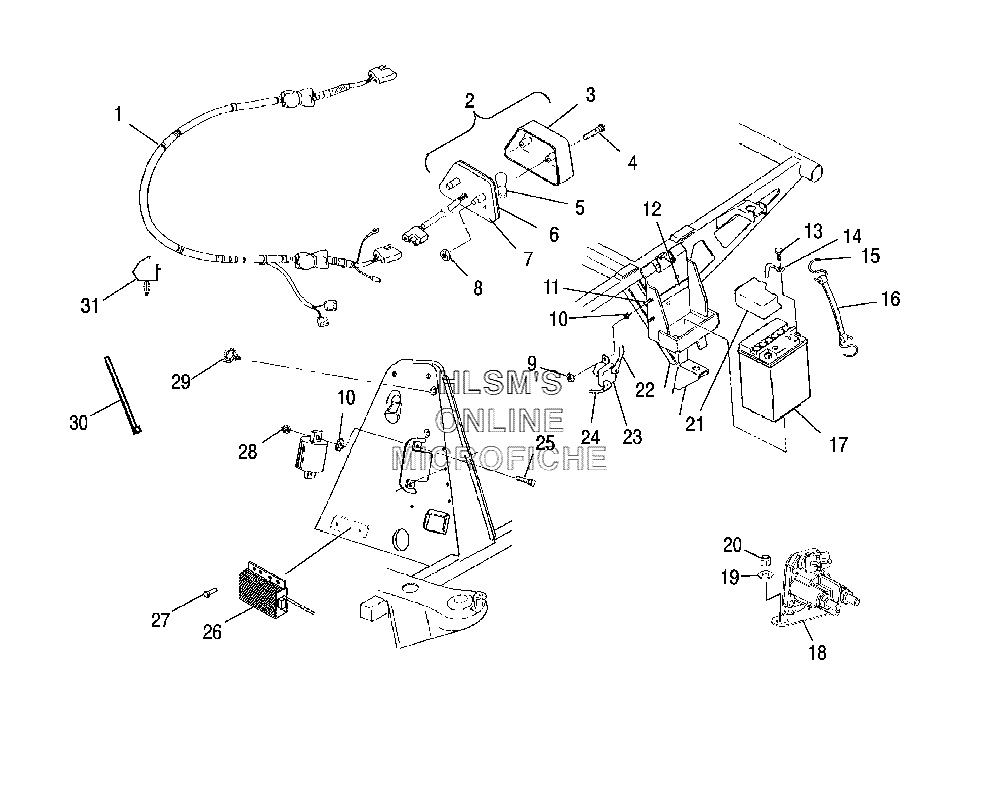

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris Magnum 330 4x4 (A06CD32AC) (NBU SUB) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2410500 HARNESS-MAIN
    HARNESS-MAIN
  • 1
    4010924 MODULE-RESISTOR
    MODULE-RESISTOR
  • 1
    2202147 FUSIBLE LINK KIT
    FUSIBLE LINK KIT
  • 2
    2410320 TAILLIGHT ASSY. (12V) (INCL. 3-8)
    TAILLIGHT ASSY. (12V) (INCL. 3-8)
  • 3
    4032046 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 4
    4032029 SCREW
    SCREW
  • 5
    4030043 BULB
    BULB
  • 6
    4032045 GASKET
    GASKET
  • 8
    7670054 NUT, PUSH-ON
    NUT, PUSH-ON
  • 9
    7518287 NUT, NYLOK INSERT
    NUT, NYLOK INSERT
  • 10
    7571602 WASHER
    WASHER
  • 11
    7512027 SCREW
    SCREW
  • 12
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 13
    2202213 BATTERY BOLT KIT (LONG)
    BATTERY BOLT KIT (LONG)
  • 14
    4010095 CABLE, BATTERY/ENGINE (BLACK)
    CABLE, BATTERY/ENGINE (BLACK)
  • 15
    7010032 HOOK-BATTERY STRAP
    HOOK-BATTERY STRAP
  • 16
    5412499 STRAP-BATTERY HOLD DOWN-C
    STRAP-BATTERY HOLD DOWN-C
  • 17
    4010774 BATTERY (14AH)
    BATTERY (14AH)
  • 18
    4011251 SWITCH-MAGNETIC
    SWITCH-MAGNETIC
  • 19
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 20
    7547283 NUT
    NUT
  • 21
    5431769 COVER, BATTERY
    COVER, BATTERY
  • 22
    4010094 CABLE, BATTERY/SOLENOID (RED)
    CABLE, BATTERY/SOLENOID (RED)
  • 23
    4011251 SWITCH-MAGNETIC
    SWITCH-MAGNETIC
  • 24
    4010093 CABLE, SOL/STARTER
    CABLE, SOL/STARTER
  • 25
    7512007 BOLT
    BOLT
  • 26
    4011088 CONTROLLER MODULE-FAN
    CONTROLLER MODULE-FAN
  • 27
    7512024 SCREW
    SCREW
  • 28
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 29
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 30
    7080138 CABLE TIE
    CABLE TIE
  • 31
    7670109 CLIP-ROUTING
    CLIP-ROUTING
