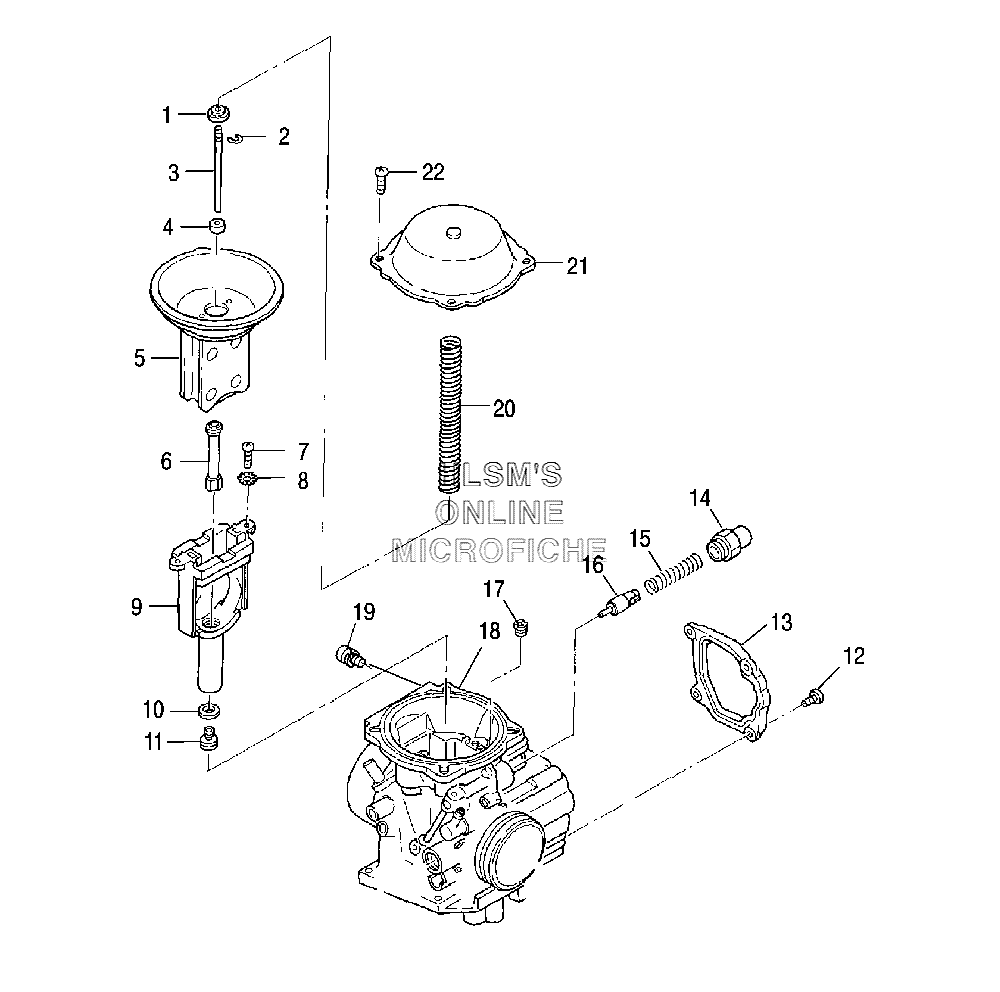

CARBURETOR - UPPER для Polaris Magnum 330 4x4 (A06CD32AB) (CAMO GREEN METALLIC) - 2006 года выпуска`
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33131554 NEEDLE-JET (J8-4HB48)NEEDLE-JET (J8-4HB48)
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
63131588 NEEDLENEEDLE
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
93130504 JETBLOCK ASSYJETBLOCK ASSY
-
103130014 WASHERWASHER
-
113131458 JET, MAIN (#122.5)JET, MAIN (#122.5)
-
123130535 SCREWSCREW
-
133130511 COVERCOVER
-
143130199 HOLDER, GUIDEHOLDER, GUIDE
-
153130538 SPRINGSPRING
-
163131228 PLUNGER ASSYPLUNGER ASSY
-
173130625 JET, AIR, PILOT (#160)JET, AIR, PILOT (#160)
-
183131590 CARBURETOR ASSY (INCL. 1-11, 13-18, 20-22)CARBURETOR ASSY (INCL. 1-11, 13-18, 20-22)
-
193084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
203131129 SPRINGSPRING
-
213130503 COVER ASSYCOVER ASSY
-
223130924 SCREWSCREW
