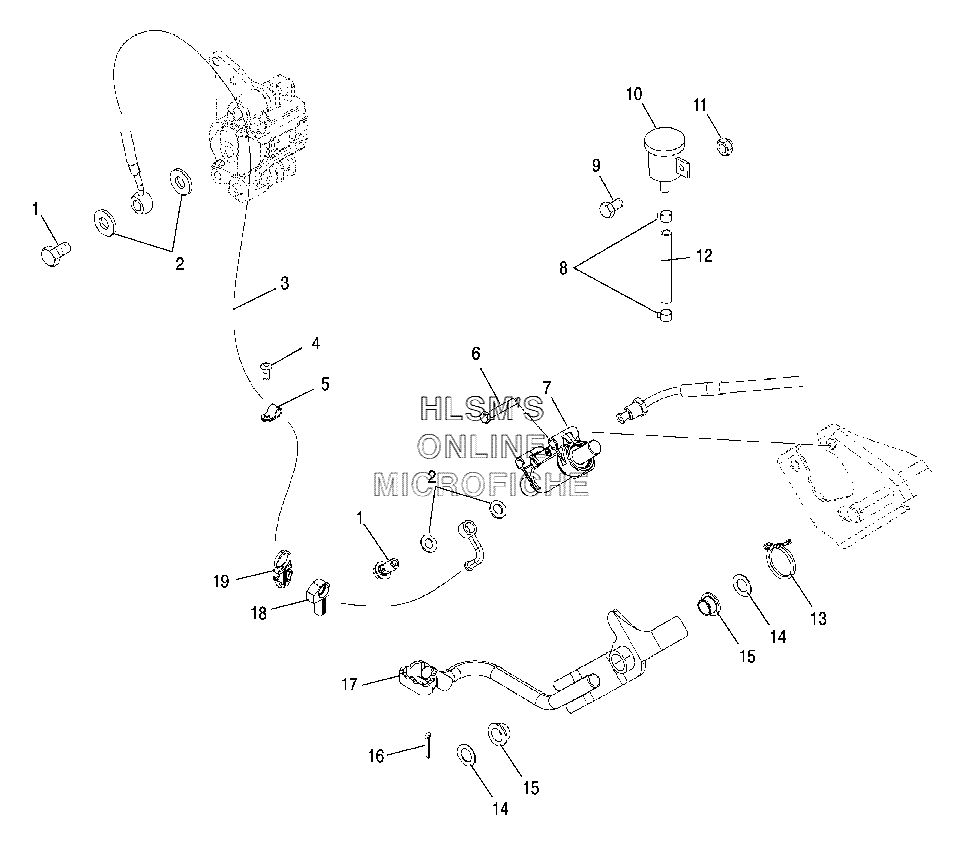

BRAKE - MASTER CYLINDER FOOT для Polaris Hawkeye 2x4 (A06LB27AA) (INDY RED) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1910958 BOLT-BANJO
    BOLT-BANJO
  • 2
    5410988 SEAL
    SEAL
  • 3
    1910952 LINE-BRAKE, CALIPER (REAR)
    LINE-BRAKE, CALIPER (REAR)
  • 4
    7512024 SCREW
    SCREW
  • 5
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    7518470 BOLT
    BOLT
  • 7
    2010258 MASTER CYLINDER (REAR)
    MASTER CYLINDER (REAR)
  • 8
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    7518533 BOLT (BLACK)
    BOLT (BLACK)
  • 10
    1930854 RESERVOIR ASSY, REAR BRAKE
    RESERVOIR ASSY, REAR BRAKE
  • 11
    7547274 NUT, NYLOK
    NUT, NYLOK
  • 12
    1910969 HOSE-RESERVOIR (6.35 ID 20 CM)
    HOSE-RESERVOIR (6.35 ID 20 CM)
  • 13
    7043126 SPRING-TORSION, BRAKE
    SPRING-TORSION, BRAKE
  • 14
    7555919 WASHER
    WASHER
  • 15
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 16
    7661401 PIN, COTTER
    PIN, COTTER
  • 17
    1015048-067 WELD-BRAKE PEDAL (BLACK)
    WELD-BRAKE PEDAL (BLACK)
  • 18
    7670102 CLIP
    CLIP
  • 19
    7080964 CLIP-RETENSION CABLE
    CLIP-RETENSION CABLE
