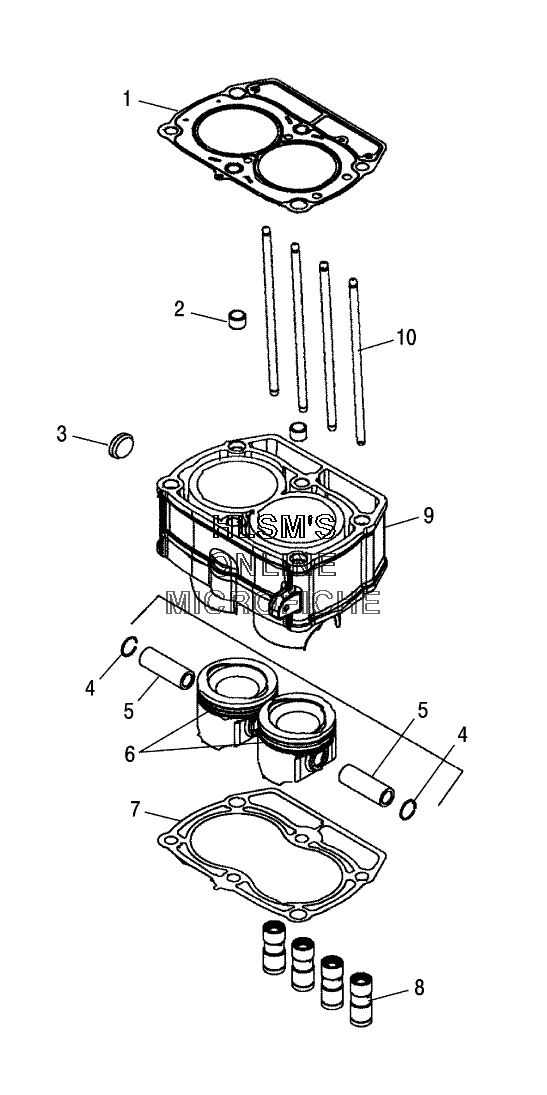

PISTON AND CYLINDER для Polaris SPORTSMAN 800 EFI (A05MH76AW) (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
15247359 GASKET HEADGASKET HEAD
-
27661175 DOWEL HOL (M16X12) (0600089)DOWEL HOL (M16X12) (0600089)
-
37051534 PLUG EXPANSION (1 1/8")PLUG EXPANSION (1 1/8")
-
43021510 CIRCLIP PISTONCIRCLIP PISTON
-
62202920 PISTON RINGS KIT (80MM)PISTON RINGS KIT (80MM)
-
75247360 GASKET BASEGASKET BASE
-
85134152 LIFTER VALVE, HYDRAULICLIFTER VALVE, HYDRAULIC
-
92202696 CYLINDER KIT (80 MM) (INCL. 3)CYLINDER KIT (80 MM) (INCL. 3)
-
105132402 PUSHRODPUSHROD
-
102202917 PISTON, KIT (INCL. 4-6)PISTON, KIT (INCL. 4-6)
