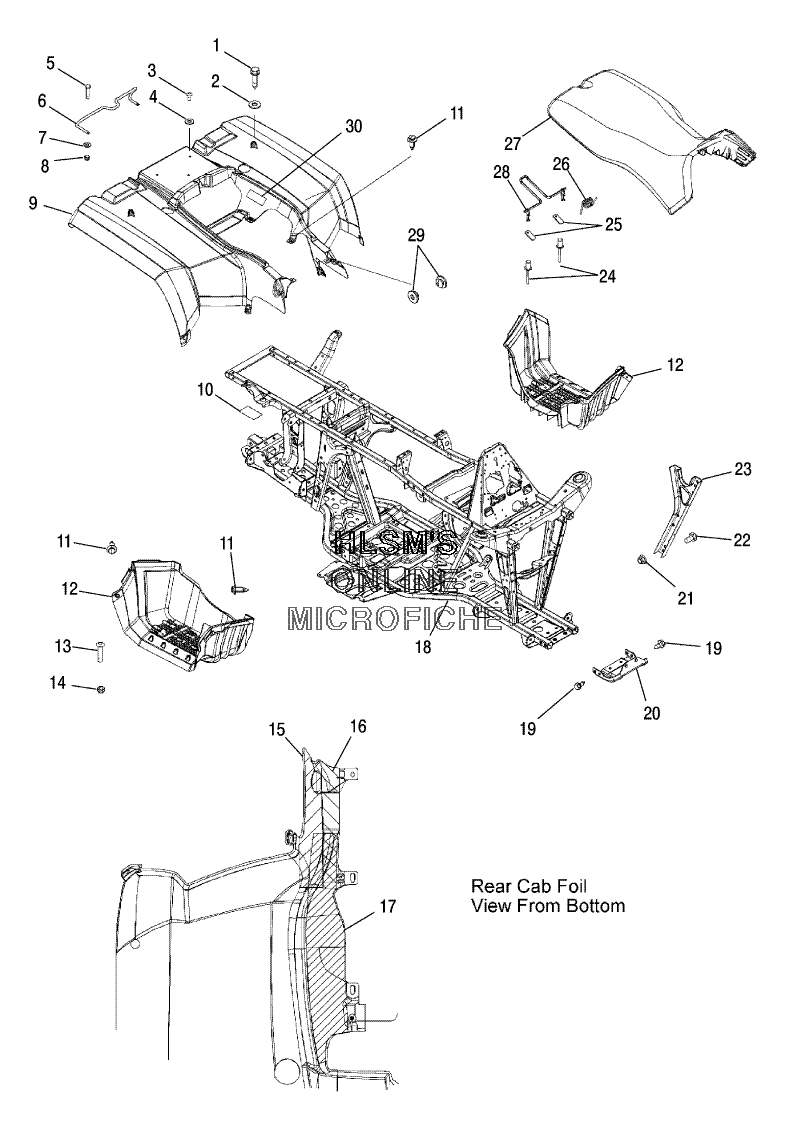

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 800 EFI (A05MH76AU) (BLACK METALLIC) - 2005 года выпуска`
-
№АртикулНазвание
-
17512095 SCREWSCREW
-
27555798 WASHERWASHER
-
37512026 SCREWSCREW
-
47556034 WASHERWASHER
-
55246076 RETAINER SEAT LATCHRETAINER SEAT LATCH
-
67511930 SCREWSCREW
-
77555792 WASHERWASHER
-
87541925 NUT, NYLOK (10 24 Y)NUT, NYLOK (10 24 Y)
-
95435363-177 CAB (REAR/BLACK METALLIC) (IF BUILT BEFORE 7/28/04)CAB (REAR/BLACK METALLIC) (IF BUILT BEFORE 7/28/04)
-
95436108-177 CAB, W/HOLE (REAR/BLACK MET) (IF BUILT AFTER 7/28/04)CAB, W/HOLE (REAR/BLACK MET) (IF BUILT AFTER 7/28/04)
-
107170509 DECAL HITCHDECAL HITCH
-
117661855 RIVET TUFLOK (.315 .325X.787)RIVET TUFLOK (.315 .325X.787)
-
125435354-070 FOOTWELL (LEFT/BLACK)FOOTWELL (LEFT/BLACK)
-
125435355-070 FOOTWELL (RIGHT/BLACK)FOOTWELL (RIGHT/BLACK)
-
137517230 SCREWSCREW
-
147542122 NUT NYLOKNUT NYLOK
-
155812703 FOIL CAB (FRONT/TOP/REAR)FOIL CAB (FRONT/TOP/REAR)
-
165812702 FOIL CAB (FRONT/BOTTOM/REAR)FOIL CAB (FRONT/BOTTOM/REAR)
-
175812701 FOIL CAB (REAR)FOIL CAB (REAR)
-
181014951-067 MAIN FRAME (BLACK)MAIN FRAME (BLACK)
-
197515399 SCREWSCREW
-
205245767-067 BUMPER BRACKET (LOWER/BLACK)BUMPER BRACKET (LOWER/BLACK)
-
217542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
227512283 SCREW, SEMSSCREW, SEMS
-
235244751-067 BRACE SUPPORT, FRAME (FRONT/LEFT/BLACK)BRACE SUPPORT, FRAME (FRONT/LEFT/BLACK)
-
247621403 BLIND RIVETBLIND RIVET
-
255211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
267041370 SPRING, LATCHSPRING, LATCH
-
272683433-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
272683434-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
281040387 LATCH, SEATLATCH, SEAT
-
295412623 GROMMET RUBBER MOUNTGROMMET RUBBER MOUNT
-
307172921 DECAL, FILTER CLEANINGDECAL, FILTER CLEANING
