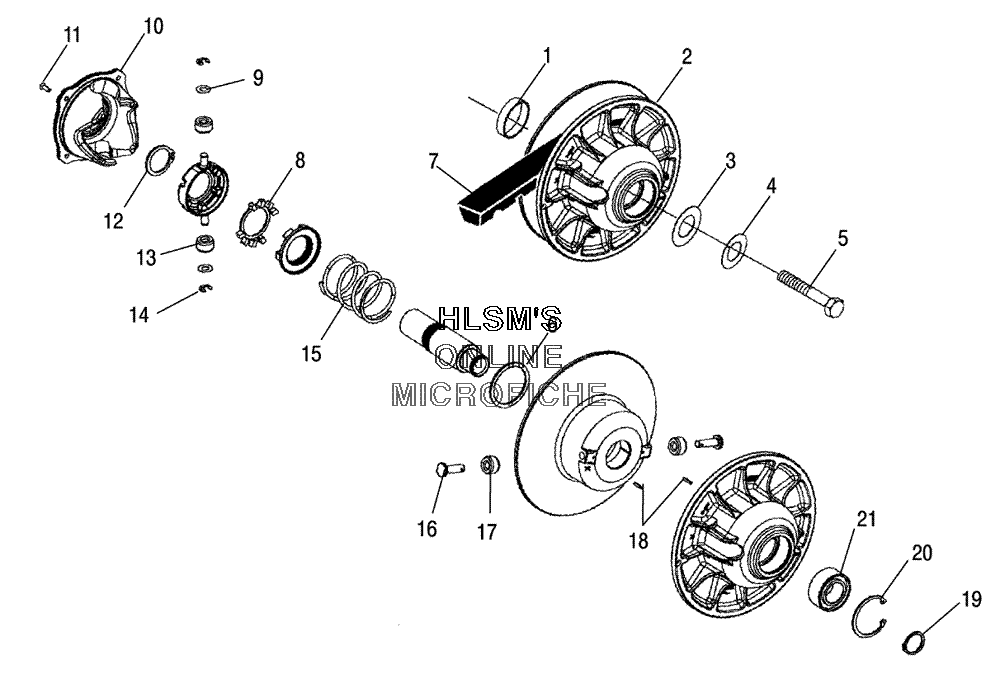

CLUTCH - DRIVEN для Polaris SPORTSMAN 700 EFI (A05MH68AU) (BLACK METALLIC) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7556120 BUSHING (7/8 X 3/8 X 16 GA Y)
    BUSHING (7/8 X 3/8 X 16 GA Y)
  • 2
    1322419 CLUTCH ASSY, DRIVEN EBS DAMPED (INCL. 3 5, 15, 19) (IF BUILT BEFORE 2/08/05)
    CLUTCH ASSY, DRIVEN EBS DAMPED (INCL. 3 5, 15, 19) (IF BUILT BEFORE 2/08/05)
  • 2
    1322551 CLUTCH ASSY, DRIVEN EBS DAMPED (INCL. 3 5, 15, 19) (IF BUILT AFTER 2/08/05)
    CLUTCH ASSY, DRIVEN EBS DAMPED (INCL. 3 5, 15, 19) (IF BUILT AFTER 2/08/05)
  • 3
    5248227 WASHER DOMED, SMALL
    WASHER DOMED, SMALL
  • 4
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 5
    7515382 BOLT
    BOLT
  • 6
    3234200 WASHER, THRUST
    WASHER, THRUST
  • 7
    3211091 BELT, DRIVE
    BELT, DRIVE
  • 8
    3234206 DAMPENER, SPIDER (1322419)
    DAMPENER, SPIDER (1322419)
  • 8
    7710564 RETAINER SPRING (INNER) (1322551)
    RETAINER SPRING (INNER) (1322551)
  • 9
    3234196 WASHER, THRUST (1322419)
    WASHER, THRUST (1322419)
  • 9
    7556226 WASHER THRUST (1322551)
    WASHER THRUST (1322551)
  • 10
    3234208 CAM ASSY (9. 5") (60 56 40 SP BA 10)
    CAM ASSY (9. 5") (60 56 40 SP BA 10)
  • 11
    3234192 SCREW, CAP TORX SFH (#10 32X. 625)
    SCREW, CAP TORX SFH (#10 32X. 625)
  • 12
    3234194 RETAINING RING, EXT (1.500) (1322419)
    RETAINING RING, EXT (1.500) (1322419)
  • 12
    7710522 RETAINER RING EXT (1. 500) (1322551)
    RETAINER RING EXT (1. 500) (1322551)
  • 13
    3234207 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 14
    3234195 RETAINING, E-RING (.375) (1322419)
    RETAINING, E-RING (.375) (1322419)
  • 14
    7710523 RETAINER E-RING E (T. 375) (1322551)
    RETAINER E-RING E (T. 375) (1322551)
  • 15
    3234199 SPRING, COMPRESSION (WHITE/YELLOW)
    SPRING, COMPRESSION (WHITE/YELLOW)
  • 16
    3234201 PIN, ROLLER
    PIN, ROLLER
  • 17
    3234197 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 18
    3234202 PIN, SPRING SLOTTED (125X. 625)
    PIN, SPRING SLOTTED (125X. 625)
  • 19
    3234205 RING, RETAINING
    RING, RETAINING
  • 20
    3234204 RING, RETAINING BSC INTERNAL
    RING, RETAINING BSC INTERNAL
  • 21
    3234203 BEARING, BALL ANGULAR CONTACT
    BEARING, BALL ANGULAR CONTACT
