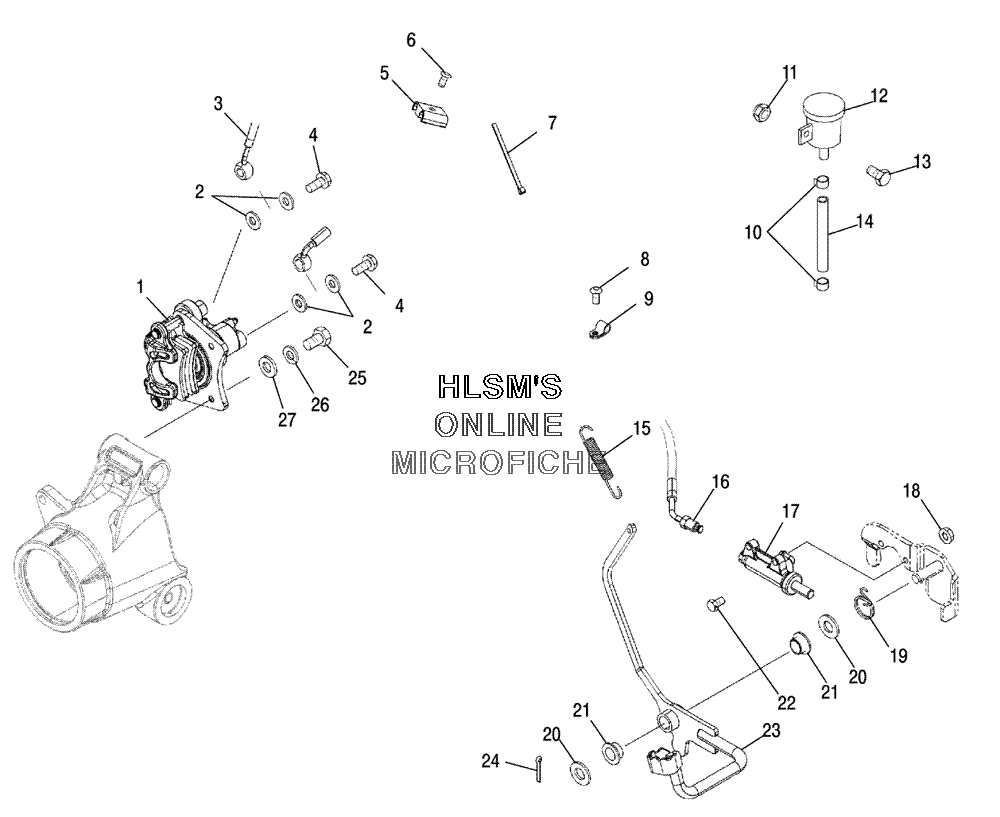

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 500 HO/INTL (A05MH50FB) (INDY RED) - 2005 года выпуска`
-
№АртикулНазвание
-
11910690 CALIPER W INS PADS ASSYCALIPER W INS PADS ASSY
-
25410988 SEALSEAL
-
31910760 LINE BRAKE CALIPER (REAR)LINE BRAKE CALIPER (REAR)
-
41910499 BOLT BANJOBOLT BANJO
-
57670126 CLIP RETAINING DUAL (.250 LINE)CLIP RETAINING DUAL (.250 LINE)
-
67517756 SCREWSCREW
-
77080138 CABLE TIECABLE TIE
-
87512024 SCREWSCREW
-
97080499 CLAMP CABLECLAMP CABLE
-
107080003 CLAMP HOSECLAMP HOSE
-
117542153 NUT NYLOK FLANGEDNUT NYLOK FLANGED
-
121930854 RESERVOIR BRAKE ASSY (REAR)RESERVOIR BRAKE ASSY (REAR)
-
137512240 BOLT (IF BUILT BEFORE 1/31/05)BOLT (IF BUILT BEFORE 1/31/05)
-
137512247 BOLT (IF BUILT AFTER 1/31/05)BOLT (IF BUILT AFTER 1/31/05)
-
141910315 HOSE RESERVOIR (1/4ID 22IN)HOSE RESERVOIR (1/4ID 22IN)
-
157042291 SPRING PARK LOCKOUTSPRING PARK LOCKOUT
-
161910765 LINE BRAKE MASTER CYLINDER (REAR)LINE BRAKE MASTER CYLINDER (REAR)
-
171910790 MASTER CYLINDER BRAKE ASSY (REAR)MASTER CYLINDER BRAKE ASSY (REAR)
-
187542122 NUT NYLOK (IF BUILT BEFORE 1/31/05)NUT NYLOK (IF BUILT BEFORE 1/31/05)
-
187542153 NUT NYLOK FLANGED (IF BUILT AFTER 1/31/05)NUT NYLOK FLANGED (IF BUILT AFTER 1/31/05)
-
197041750 SPRING TORSIONSPRING TORSION
-
207555919 WASHERWASHER
-
215433189 BUSHING PEDAL PIVOTBUSHING PEDAL PIVOT
-
227512247 BOLTBOLT
-
231910814-067 BRAKE PEDAL (BLACK)BRAKE PEDAL (BLACK)
-
247661401 PIN COTTERPIN COTTER
-
257512365 SCREW CAPSCREW CAP
-
267552901 WASHER SPRING LOCKWASHER SPRING LOCK
-
277558402 WASHER FLATWASHER FLAT
-
272202708 LINE BREAK MASTER CYLINDER KIT (REAR) (INCL. 16)LINE BREAK MASTER CYLINDER KIT (REAR) (INCL. 16)
-
272202660 BRAKE, LINE KIT REAR FROM J/B (INCL. 3)BRAKE, LINE KIT REAR FROM J/B (INCL. 3)
