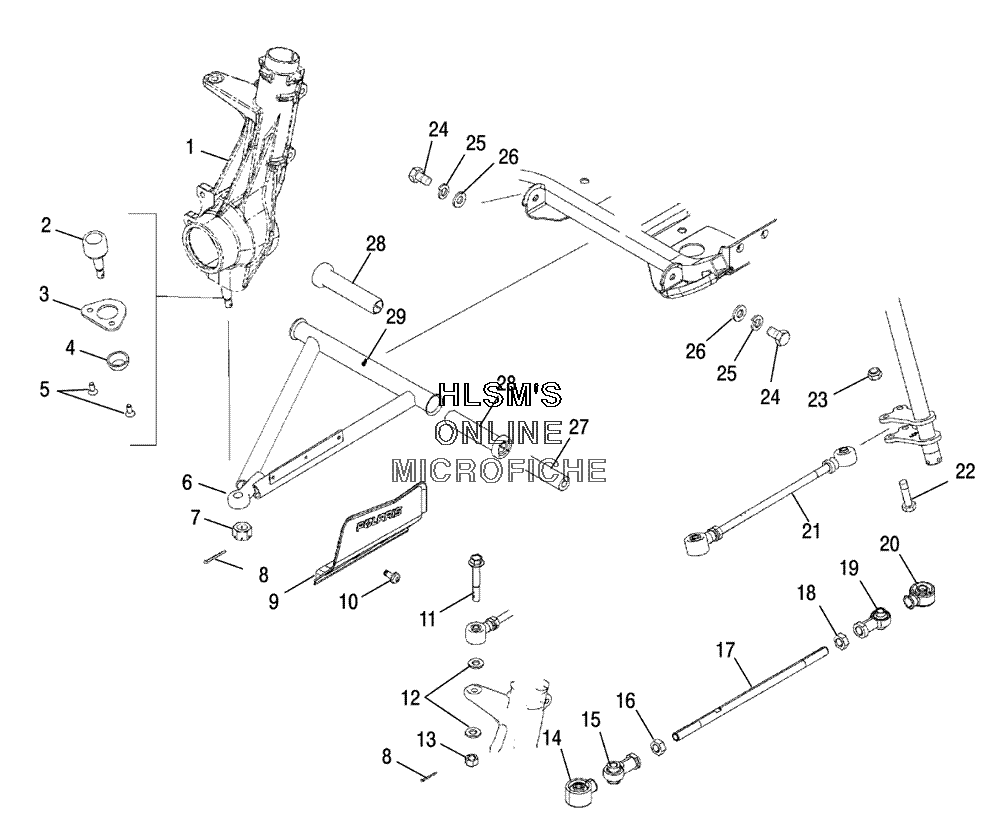

SUSPENSION - FRONT A ARM W/ STRUT MOUNTING для Polaris SPORTSMAN 500 HO/INTL (A05MH50AL) (BLACK METALLIC) - 2005 года выпуска`
-
№АртикулНазвание
-
27080927 BALL JOINT 52 DEGBALL JOINT 52 DEG
-
35211121 BRACKET BALL JOINTBRACKET BALL JOINT
-
45410548 BOOT RUBBERBOOT RUBBER
-
57512284 BOLT SOCKETBOLT SOCKET
-
62202906 A FRAME KIT (LEFT) (INCL. 8, 24, 25, 27, 28)A FRAME KIT (LEFT) (INCL. 8, 24, 25, 27, 28)
-
62202907 A FRAME KIT (RIGHT) (INCL. 8, 24, 25, 27, 28)A FRAME KIT (RIGHT) (INCL. 8, 24, 25, 27, 28)
-
77542438 NUT CASTLENUT CASTLE
-
87661203 PIN COTTERPIN COTTER
-
95435028-070 SHIELD CV BASIC (FRONT/LEFT/BLACK)SHIELD CV BASIC (FRONT/LEFT/BLACK)
-
95435029-070 SHIELD CV BASIC (FRONT/RIGHT/BLACK)SHIELD CV BASIC (FRONT/RIGHT/BLACK)
-
107512084 SCREWSCREW
-
117517909 BOLT HEXAGON WASH HEADBOLT HEXAGON WASH HEAD
-
127556099 WASHERWASHER
-
137547177 NUT HEXAGON LOCKNUT HEXAGON LOCK
-
145411920 BOOT SEAL ROD END (10MM)BOOT SEAL ROD END (10MM)
-
157061054 ROD END 10MM 1/2 20 (LEFT)ROD END 10MM 1/2 20 (LEFT)
-
167547028 NUT JAM (LEFT)NUT JAM (LEFT)
-
175134242 ROD TIEROD TIE
-
187542711 NUT JAMNUT JAM
-
197061034 ROD END (RIGHT)ROD END (RIGHT)
-
205411291 SEAL BOOT ROD END 1/2 INSEAL BOOT ROD END 1/2 IN
-
211821498 TIE ROD ASSY (INCL. 20 15)TIE ROD ASSY (INCL. 20 15)
-
227515415 SCREWSCREW
-
237542439 NUT NYLOKNUT NYLOK
-
247512492 SCREWSCREW
-
257552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
267555832 WASHERWASHER
-
275133806 SHAFT A ARMSHAFT A ARM
-
285434551 BUSHING A ARM LONG (BLACK)BUSHING A ARM LONG (BLACK)
-
297080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
