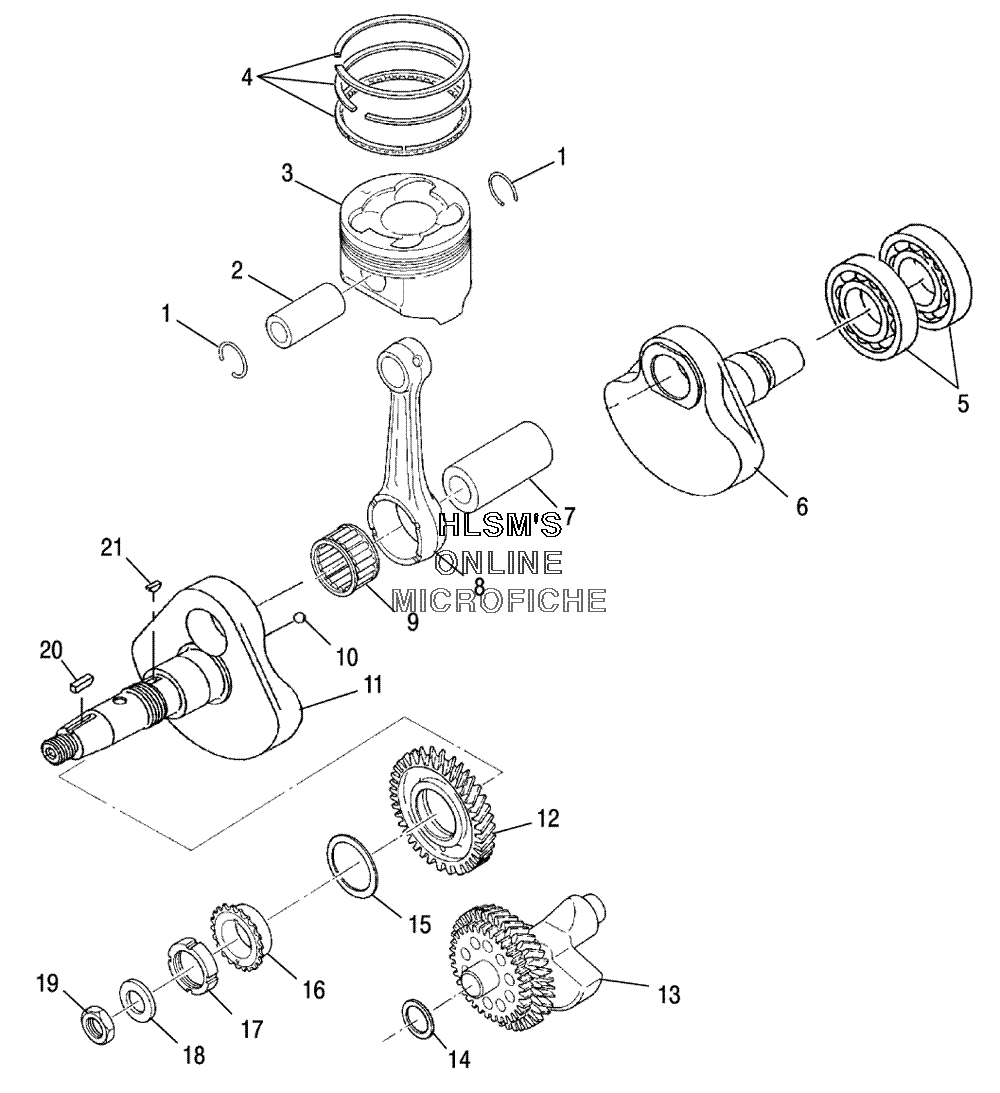

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 500 HO/INTL (A05MH50AC) (N.B.U. SUB CAMO) - 2005 года выпуска`
-
№АртикулНазвание
-
13085534 CLIPCLIP
-
33087221 SET PISTON (STANDARD) (INCL. 1)SET PISTON (STANDARD) (INCL. 1)
-
33087222 SET PISTON (.010/.25MM O/S) (INCL. 1)SET PISTON (.010/.25MM O/S) (INCL. 1)
-
33087223 SET PISTON (.020/.50MM O/S) (INCL. 1)SET PISTON (.020/.50MM O/S) (INCL. 1)
-
43087224 SET PISTON RING (STANDARD)SET PISTON RING (STANDARD)
-
43087225 SET PISTON RING (.010/.25MM O/S)SET PISTON RING (.010/.25MM O/S)
-
43087226 SET PISTON RING (.020/.50MM O/S)SET PISTON RING (.020/.50MM O/S)
-
53085815 BEARING BALLBEARING BALL
-
63085812 CRANKSHAFTCRANKSHAFT
-
73087090 PIN CRANKPIN CRANK
-
83085813 ROD CONNECTINGROD CONNECTING
-
93085343 BEARING LARGE ENDBEARING LARGE END
-
103085024 BALL STEELBALL STEEL
-
113089570 CRANKSHAFT ASSY (INCL. 6-12)CRANKSHAFT ASSY (INCL. 6-12)
-
113089678 CRANKSHAFTCRANKSHAFT
-
123089245 BALANCE GEARBALANCE GEAR
-
133086837 SHAFT BALANCERSHAFT BALANCER
-
143084895 SPACER (0.8)SPACER (0.8)
-
143084896 SPACER (1.0)SPACER (1.0)
-
143084897 SPACER (1.2)SPACER (1.2)
-
153240088 SPACER (0.6)SPACER (0.6)
-
153084892 SPACER (0.8)SPACER (0.8)
-
153084893 SPACER (1.0)SPACER (1.0)
-
153084894 SPACER (1.2)SPACER (1.2)
-
163084882 SPROCKETSPROCKET
-
173085528 NUT SLITNUT SLIT
-
183086767 WASHERWASHER
-
193083905 NUT LOCKNUT LOCK
-
203081447 KEYKEY
-
213240168 KEY, WOODRUFFKEY, WOODRUFF
