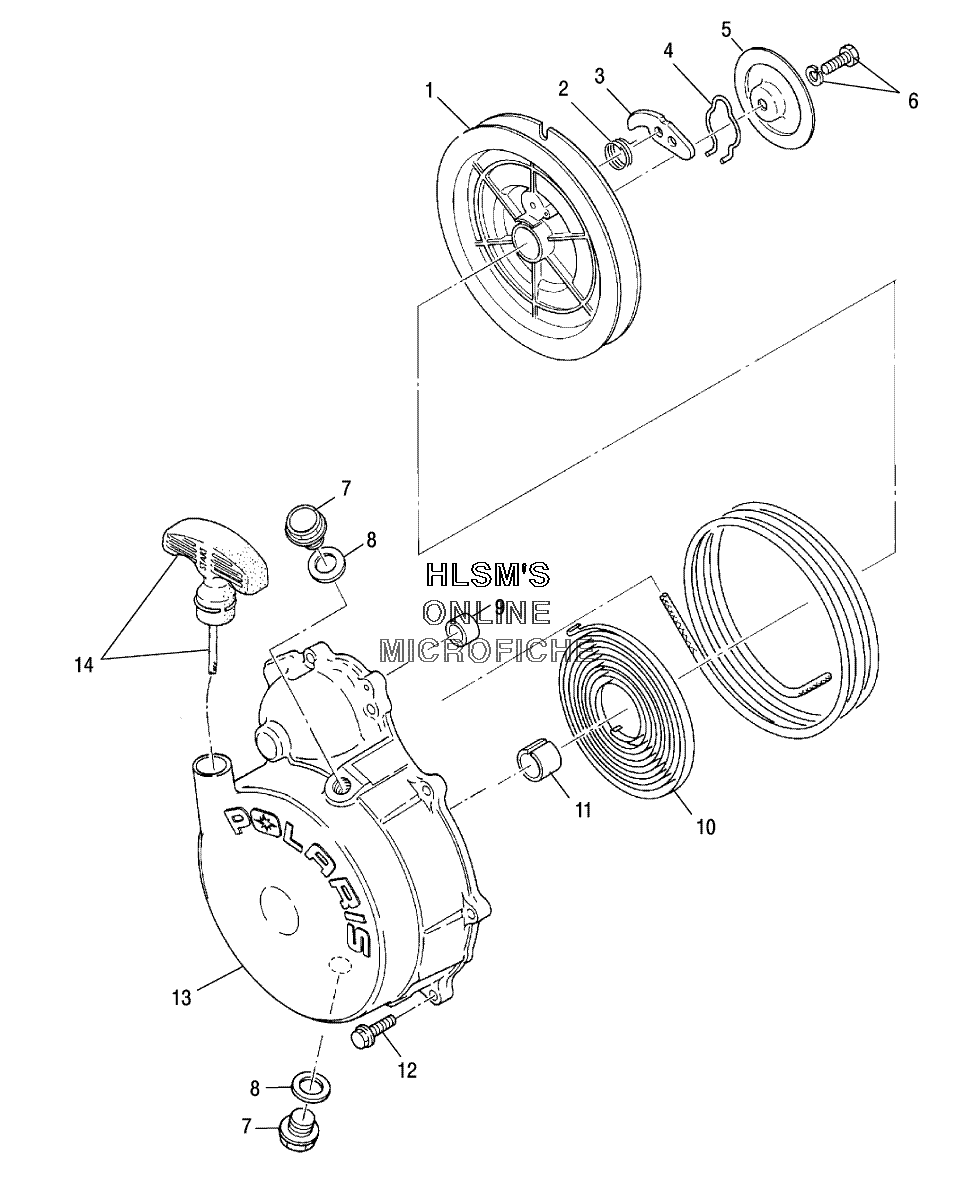

STARTER - RECOIL для Polaris SCRAMBLER 500 4X4 (A05BG50FA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3084822 REEL ASSY
    REEL ASSY
  • 2
    3083463 SPRING RETURN
    SPRING RETURN
  • 3
    3083378 RATCHET
    RATCHET
  • 4
    3083379 SPRING FRICTION
    SPRING FRICTION
  • 5
    3084744 PLATE FRICTION
    PLATE FRICTION
  • 6
    3085266 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 7
    3086749 PLUG
    PLUG
  • 8
    3082956 GASKET
    GASKET
  • 9
    3083669 BUSHING STARTER
    BUSHING STARTER
  • 10
    3083185 SPRING SPIRAL
    SPRING SPIRAL
  • 11
    3084750 BUSHING
    BUSHING
  • 12
    3084877 BOLT FLANGE
    BOLT FLANGE
  • 13
    3087163 RECOIL ASSY (INCL. -6, 9-11, 13, 14)
    RECOIL ASSY (INCL. -6, 9-11, 13, 14)
  • 13
    3087164 CASE STARTER ASSY (INCL. 11)
    CASE STARTER ASSY (INCL. 11)
  • 14
    3085083 ROPE, ASSY
    ROPE, ASSY
