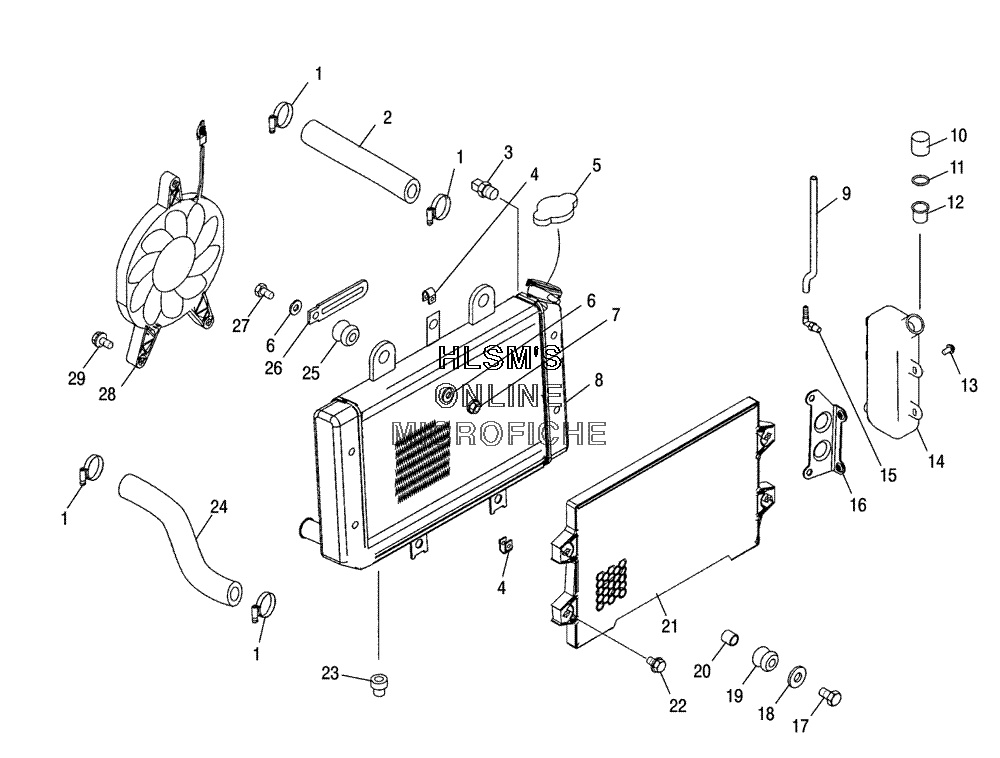

COOLING SYSTEM для Polaris PREDATOR 500 (A05GJ50AC) (WHITE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7080614 CLAMP HOSE
    CLAMP HOSE
  • 2
    8450050-28 HOSE WATER (100CM)
    HOSE WATER (100CM)
  • 3
    4010808 SENSOR THERMAL HARNESS
    SENSOR THERMAL HARNESS
  • 4
    7547197 CLIP U
    CLIP U
  • 5
    1240093 CAP PRESSURE (13 LBS)
    CAP PRESSURE (13 LBS)
  • 6
    7558301 WASHER FLAT
    WASHER FLAT
  • 7
    7542122 NUT NYLOK
    NUT NYLOK
  • 8
    1240130 RADIATOR
    RADIATOR
  • 9
    8450003-1525 LINE FUEL (1/4 ID) (1525 CM)
    LINE FUEL (1/4 ID) (1525 CM)
  • 10
    5430743 CAP OVERFLOW
    CAP OVERFLOW
  • 11
    5810279 GASKET
    GASKET
  • 12
    5433774 CAP PLUG 9X FLEX TEMP (GREEN)
    CAP PLUG 9X FLEX TEMP (GREEN)
  • 13
    7512084 SCREW
    SCREW
  • 14
    5434856 TANK SURGE
    TANK SURGE
  • 15
    7052065 FITTING 90 DEGREE
    FITTING 90 DEGREE
  • 16
    5247340 BRACKET SURGE TANK
    BRACKET SURGE TANK
  • 17
    7517510 SCREW
    SCREW
  • 18
    7558301 WASHER FLAT
    WASHER FLAT
  • 19
    5410437 GROMMET
    GROMMET
  • 20
    5333796 SPACER
    SPACER
  • 21
    5435881 SCREEN RADIATOR
    SCREEN RADIATOR
  • 22
    7547220 SCREW WITH WASHER
    SCREW WITH WASHER
  • 23
    5410584 BUSHING MOUNT RADIATOR (LOWER)
    BUSHING MOUNT RADIATOR (LOWER)
  • 24
    5412678 HOSE RADIATOR FORMED
    HOSE RADIATOR FORMED
  • 25
    5411975 GROMMET INSERT ASSY
    GROMMET INSERT ASSY
  • 26
    7080654 RETAINER
    RETAINER
  • 27
    7512163 BOLT
    BOLT
  • 28
    2520272 FAN AND MOTOR ASSY
    FAN AND MOTOR ASSY
  • 29
    7517975 BOLT, HEXAGON HEAD
    BOLT, HEXAGON HEAD
