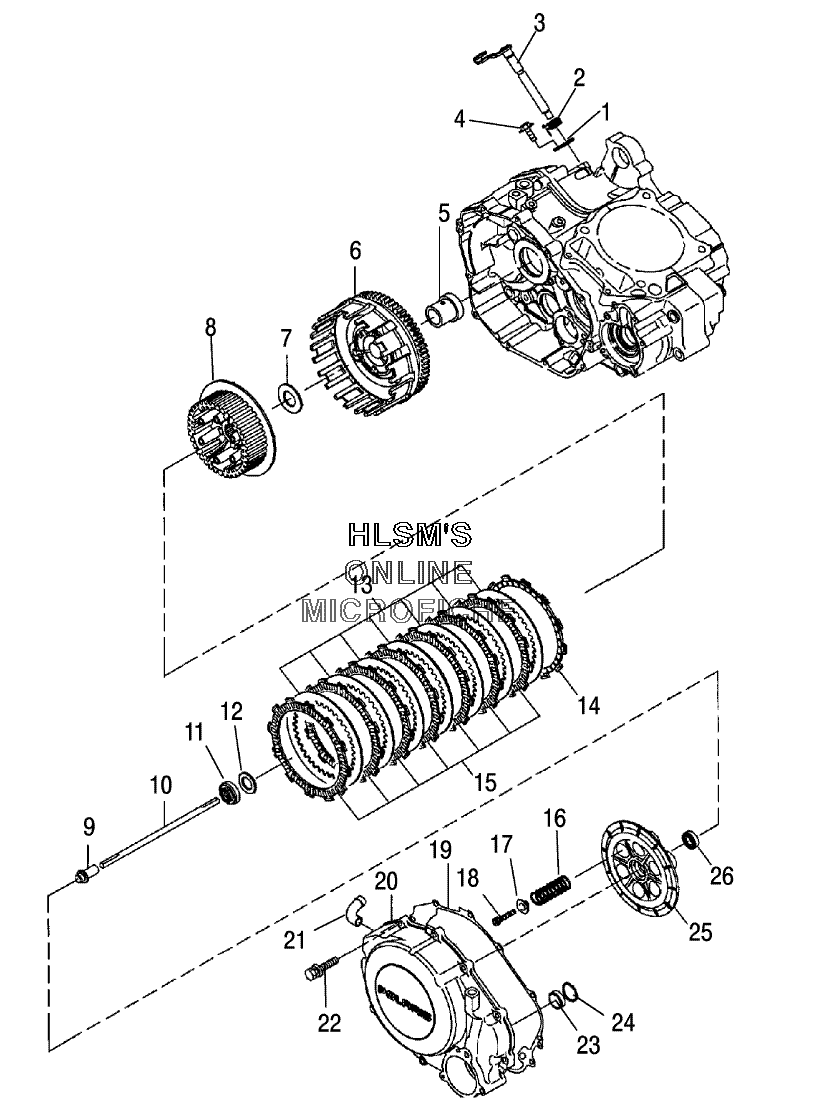

GEARCASE - CLUTCH для Polaris PREDATOR 500 (A05GJ50AB) (COS. SUN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3089621 PLATE RELEASE SHAFT
    PLATE RELEASE SHAFT
  • 2
    3088079 SPRING RELEASE
    SPRING RELEASE
  • 3
    3088078 RELEASE SHAFT ASSY
    RELEASE SHAFT ASSY
  • 4
    3084877 BOLT FLANGE
    BOLT FLANGE
  • 5
    3089619 COLLAR DISTANCE
    COLLAR DISTANCE
  • 6
    3089617 CLUTCH ASSY (OUTER)
    CLUTCH ASSY (OUTER)
  • 7
    3088186 WASHER THRUST
    WASHER THRUST
  • 8
    3088180 CENTER CLUTCH ASSY
    CENTER CLUTCH ASSY
  • 9
    3088081 PUSHER
    PUSHER
  • 10
    3089620 ROD PUSH
    ROD PUSH
  • 11
    3086285 NUT LOCK
    NUT LOCK
  • 12
    3086286 WASHER LOCK
    WASHER LOCK
  • 13
    3088184 PLATE CLUTCH
    PLATE CLUTCH
  • 14
    3088185 DISK B CLUTCH FRICTION
    DISK B CLUTCH FRICTION
  • 15
    3089618 DISK A CLUTCH FRICTION
    DISK A CLUTCH FRICTION
  • 16
    3088177 SPRING CLUTCH
    SPRING CLUTCH
  • 17
    3088176 WASHER CLUTCH SPRING
    WASHER CLUTCH SPRING
  • 18
    3088175 BOLT
    BOLT
  • 19
    3089615 GASKET CLUTCH COVER
    GASKET CLUTCH COVER
  • 20
    3089687 CLUTCH COVER ASSY (INCL. 21, 23, 24)
    CLUTCH COVER ASSY (INCL. 21, 23, 24)
  • 21
    3085850 PIPE ASSY
    PIPE ASSY
  • 22
    3084874 BOLT FLANGE
    BOLT FLANGE
  • 23
    3088072 CRANK OIL SEAL
    CRANK OIL SEAL
  • 24
    3088073 SNAP RING (INNER)
    SNAP RING (INNER)
  • 25
    3088178 DISK CLUTCH PRESSURE
    DISK CLUTCH PRESSURE
  • 26
    3088179 BEARING BALL
    BEARING BALL
  • 26
    3089616 CLUTCH, MULTI ASSY (INCL. 6-8, 13-18, 25, 26)
    CLUTCH, MULTI ASSY (INCL. 6-8, 13-18, 25, 26)
