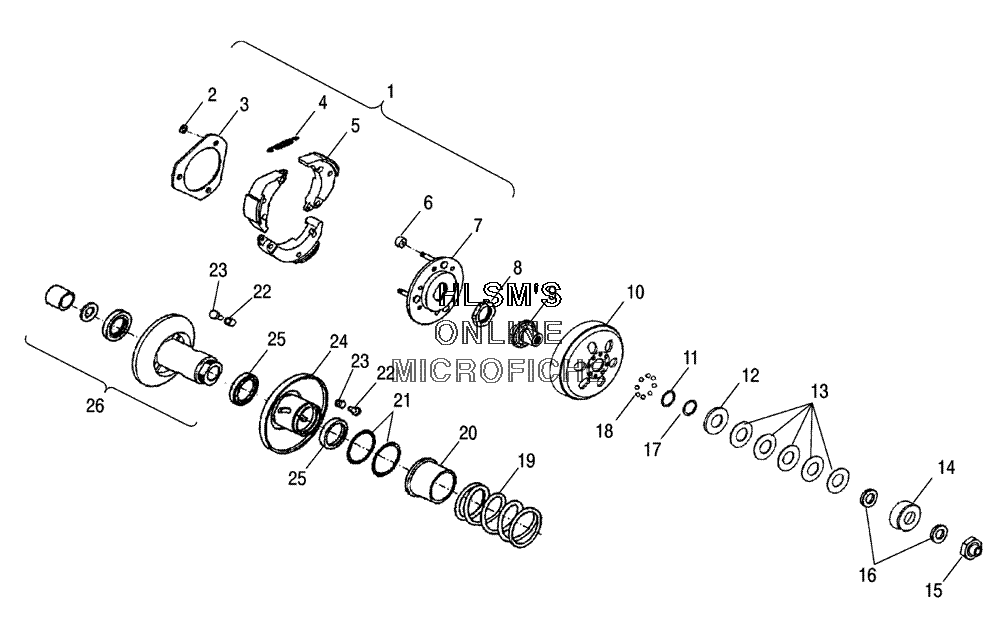

CLUTCH - DRIVEN для Polaris PHOENIX 200 QUADRICYCLE (A05PB20EB) (SONIC BLUE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0452478 DRIVE PLATE ASSY (INCL. 2-7)
    DRIVE PLATE ASSY (INCL. 2-7)
  • 2
    0450052 CIRCLIP EXTERNAL
    CIRCLIP EXTERNAL
  • 3
    0452480 PLATE CLUTCH SIDE
    PLATE CLUTCH SIDE
  • 4
    0452481 SPRING CLUTCH
    SPRING CLUTCH
  • 5
    0452482 WEIGHT CLUTCH
    WEIGHT CLUTCH
  • 6
    0452483 BUSHING RUBBER
    BUSHING RUBBER
  • 7
    0452479 PLATE DRIVE (INNER)
    PLATE DRIVE (INNER)
  • 8
    0452492 NUT CLUTCH
    NUT CLUTCH
  • 9
    0452475 CAM HOLD
    CAM HOLD
  • 10
    0452495 CLUTCH (OUTER)
    CLUTCH (OUTER)
  • 11
    0452476 WASHER
    WASHER
  • 12
    0452499 RETAINER BALL
    RETAINER BALL
  • 13
    0452500 WASHER BELLVILLE
    WASHER BELLVILLE
  • 14
    0452501 CAM GUIDE
    CAM GUIDE
  • 15
    0452502 NUT DRIVEN
    NUT DRIVEN
  • 16
    0452440 WASHER GEAR
    WASHER GEAR
  • 17
    0452497 CIR CLIP
    CIR CLIP
  • 18
    0452498 BALL STEEL
    BALL STEEL
  • 19
    0452490 SPRING CLUTCH
    SPRING CLUTCH
  • 20
    0452491 SEAL, COLLAR
    SEAL, COLLAR
  • 21
    0452494 O-RING
    O-RING
  • 22
    0452488 GUIDE PIN
    GUIDE PIN
  • 23
    0452489 GUIDE ROLLER
    GUIDE ROLLER
  • 24
    0452487 SHEAVE ASSY, MOVEABLE
    SHEAVE ASSY, MOVEABLE
  • 25
    0452493 SEAL DRIVEN
    SEAL DRIVEN
  • 26
    0452484 SHEAVE ASSY, DRIVEN (INCL. BEARINGS AND CLIP)
    SHEAVE ASSY, DRIVEN (INCL. BEARINGS AND CLIP)
  • 26
    0452477 DRIVEN, CLUTCH ASSY (INCL. ALL LESS 9)
    DRIVEN, CLUTCH ASSY (INCL. ALL LESS 9)
