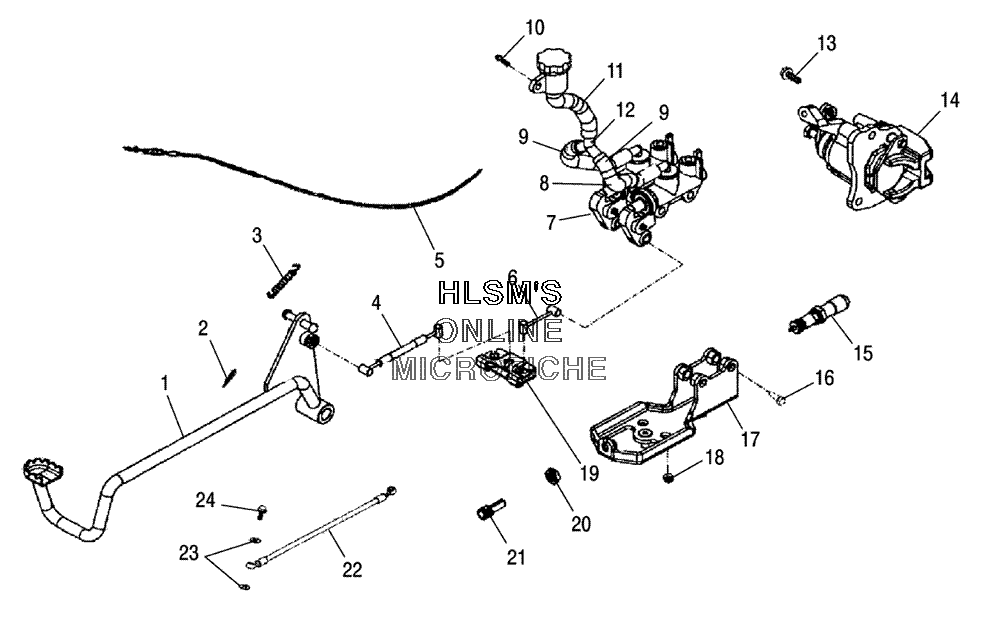

BRAKE - REAR для Polaris PHOENIX 200 QUADRICYCLE (A05PB20EA) (INDY RED) - 2005 года выпуска
-
№АртикулНазвание
-
10452874 LEVER BRAKE, FOOTLEVER BRAKE, FOOT
-
20450719 PIN COTTERPIN COTTER
-
30452686 SPRING BRAKE LEVERSPRING BRAKE LEVER
-
40452876 CABLE PEDAL, BRAKE BRACKETCABLE PEDAL, BRAKE BRACKET
-
50452873 CABLE HAND BRAKE (REAR)CABLE HAND BRAKE (REAR)
-
60452875 CABLE PEDAL, BRAKE MASTER CYLINDERCABLE PEDAL, BRAKE MASTER CYLINDER
-
70452878 MASTER CYLINDER ASSY, QUAD (INCL. 8, 9, 11, 12)MASTER CYLINDER ASSY, QUAD (INCL. 8, 9, 11, 12)
-
80452879 SUB, MASTER CYLINDER ASSYSUB, MASTER CYLINDER ASSY
-
90452881 HOSE BRAKEHOSE BRAKE
-
100452816 BOLT FLANGE, HEXAGONBOLT FLANGE, HEXAGON
-
110452880 HOSE BRAKEHOSE BRAKE
-
12
-
130452888 BOLT HEXAGON, WASHER FACEBOLT HEXAGON, WASHER FACE
-
140452883 CALIPER ASSYCALIPER ASSY
-
150452687 SWITCH BRAKESWITCH BRAKE
-
160452858 BOLT HEXAGON, W/SPRING WASHERBOLT HEXAGON, W/SPRING WASHER
-
170452877 MOUNT MASTER CYLINDER/BRAKE PEDALMOUNT MASTER CYLINDER/BRAKE PEDAL
-
180450282 NUT LOCKNUT LOCK
-
190452885 CONNECTOR BRAKE CABLE, FOOT PEDALCONNECTOR BRAKE CABLE, FOOT PEDAL
-
200452887 NUT LOCKNUT LOCK
-
210452886 BOLT INSERTBOLT INSERT
-
220452884 HOSE BRAKEHOSE BRAKE
-
230452872 SEAL STAT-OSEAL STAT-O
-
240452871 BOLT, BANDBOLT, BAND
