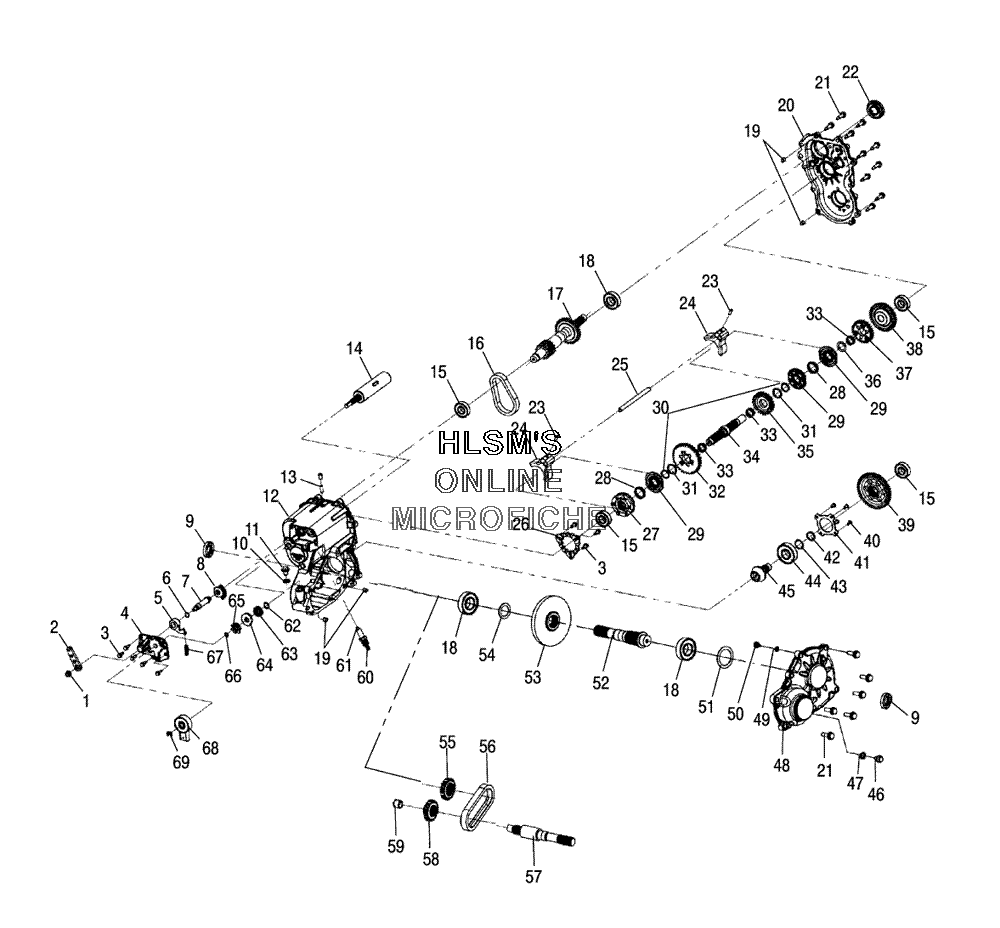

GEARCASE для Polaris ATP 330 4X4 QUAD (A05JD32EA) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3233961 NUT LOCK HEXAGON FLANGE NYLON
    NUT LOCK HEXAGON FLANGE NYLON
  • 2
    3233906 BELLCRANK SHIFT DRUM
    BELLCRANK SHIFT DRUM
  • 3
    3233826 SCREW
    SCREW
  • 4
    3233827 COVER SECTOR GEARS
    COVER SECTOR GEARS
  • 5
    3233829 PAWL DETENT
    PAWL DETENT
  • 6
    3233869 O-RING
    O-RING
  • 7
    3233831 SHAFT SHIFT
    SHAFT SHIFT
  • 8
    3233832 GEAR SECTOR (31T CUT TO 11T)
    GEAR SECTOR (31T CUT TO 11T)
  • 9
    3233788 SEAL TRIPLE LIP
    SEAL TRIPLE LIP
  • 10
    3233324 WASHER
    WASHER
  • 11
    3233711 PLUG OIL FILL
    PLUG OIL FILL
  • 12
    3233867 GEARCASE MAIN SECTION
    GEARCASE MAIN SECTION
  • 13
    3233524 TUBE VENT
    TUBE VENT
  • 14
    3233910 DRUM SHIFT
    DRUM SHIFT
  • 15
    3233018 BEARING
    BEARING
  • 16
    3233036 CHAIN SILENT
    CHAIN SILENT
  • 17
    3234028 SHAFT INPUT
    SHAFT INPUT
  • 18
    3233019 BEARING
    BEARING
  • 19
    3233529 PIPE KNOCK
    PIPE KNOCK
  • 20
    3233865 COVER MAIN (LEFT)
    COVER MAIN (LEFT)
  • 21
    3233846 SCREW ROLL FORMING
    SCREW ROLL FORMING
  • 22
    3233874 SEAL DUAL LIP
    SEAL DUAL LIP
  • 23
    3233859 PIN DOWEL
    PIN DOWEL
  • 24
    3233858 FORK SHIFT
    FORK SHIFT
  • 25
    3233860 RAIL SHIFT SHAFT C VERSION
    RAIL SHIFT SHAFT C VERSION
  • 26
    3233915 PLATE PARK 12 FACE
    PLATE PARK 12 FACE
  • 27
    3234040 DOG, ENGAGEMENT PARK 6 FACE
    DOG, ENGAGEMENT PARK 6 FACE
  • 28
    3233849 SPRING WAVE
    SPRING WAVE
  • 29
    3233875 DOG ENGAGEMENT 6 FACE
    DOG ENGAGEMENT 6 FACE
  • 30
    3233850 RING RETAINING
    RING RETAINING
  • 31
    3233851 WASHER
    WASHER
  • 32
    3234027 GEAR 6 FACE
    GEAR 6 FACE
  • 33
    3233718 BEARING NDL SPLIT CAGE
    BEARING NDL SPLIT CAGE
  • 34
    3233853 SHAFT REVERSE
    SHAFT REVERSE
  • 35
    3233854 SPROCKET 6 FACE ENGAGEMENT
    SPROCKET 6 FACE ENGAGEMENT
  • 36
    3233855 WASHER
    WASHER
  • 37
    3233856 GEAR 6 FACE
    GEAR 6 FACE
  • 38
    3233971 GEAR HELICAL
    GEAR HELICAL
  • 39
    3233764 GEAR HELICAL
    GEAR HELICAL
  • 40
    3233608 SCREW
    SCREW
  • 41
    3233609 COVER BEARING
    COVER BEARING
  • 42
    3233106 RING SNAP
    RING SNAP
  • 43
    3233357 SPACER
    SPACER
  • 44
    3233607 BEARING BALL
    BEARING BALL
  • 45
    3233606 SHAFT
    SHAFT
  • 46
    3233777 PLUG HEXAGON FLANGE
    PLUG HEXAGON FLANGE
  • 47
    3233254 WASHER PLUG
    WASHER PLUG
  • 48
    3233781 COVER OUTPUT (FRONT)
    COVER OUTPUT (FRONT)
  • 49
    3233583 SHIM (.450 X .265)
    SHIM (.450 X .265)
  • 50
    3233582 BUTTON THRUST
    BUTTON THRUST
  • 51
    3233611 SHIM
    SHIM
  • 52
    3233622 SHAFT OUTPUT (REAR)
    SHAFT OUTPUT (REAR)
  • 53
    3233621 GEAR SPIRAL BEVEL
    GEAR SPIRAL BEVEL
  • 54
    3233619 WASHER THRUST
    WASHER THRUST
  • 55
    3233873 SPROCKET
    SPROCKET
  • 56
    3233784 CHAIN SILENT REXNORD
    CHAIN SILENT REXNORD
  • 57
    3233625 SHAFT OUTPUT (FRONT)
    SHAFT OUTPUT (FRONT)
  • 58
    3233844 SPROCKET
    SPROCKET
  • 59
    3233552 BUSHING GARLOCK
    BUSHING GARLOCK
  • 60
    3234013 CLAMP TIE
    CLAMP TIE
  • 61
    3233917 SUBASSY PARK LOCKOUT
    SUBASSY PARK LOCKOUT
  • 62
    3233548 O-RING
    O-RING
  • 63
    3233839 GEAR SECTOR
    GEAR SECTOR
  • 64
    3233838 DISC LOCKOUT
    DISC LOCKOUT
  • 65
    3233909 STAR DETENT
    STAR DETENT
  • 66
    3233076 O-RING
    O-RING
  • 67
    3233830 SPRING COMPRESSION
    SPRING COMPRESSION
  • 68
    3233835 SWITCH ROTARY 6 PIN
    SWITCH ROTARY 6 PIN
  • 69
    3233834 RING RETAINING
    RING RETAINING
  • 69
    1341445 GEARCASE, ASSY HLR
    GEARCASE, ASSY HLR
