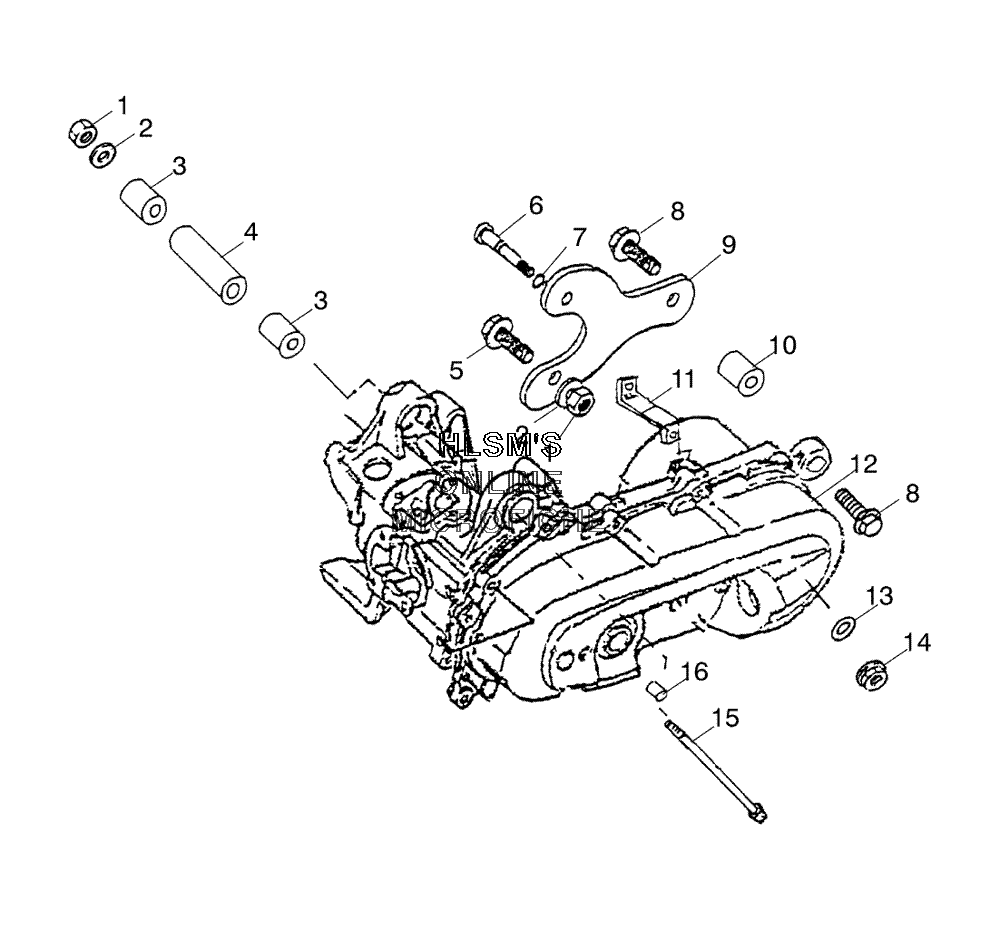

MOUNTING - ENGINE для Polaris SPORTSMAN 90 (A04FA09CB) (NBU) - 2004 года выпуска`
-
№АртикулНазвание
-
10450271 NUT HEXAGONNUT HEXAGON
-
20450286 WASHERWASHER
-
30450284 BUSHING RUBBERBUSHING RUBBER
-
40450283 TUBE FIXED (FRONT)TUBE FIXED (FRONT)
-
50450270 BOLT HEXAGONBOLT HEXAGON
-
60450266 SHAFT FIXED ENGINE BRACKETSHAFT FIXED ENGINE BRACKET
-
70450709 O-RINGO-RING
-
80450684 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
90450269 BRACKET ENGINEBRACKET ENGINE
-
100450132 BUSHING RUBBERBUSHING RUBBER
-
110450287 PLATE FIXED OIL TANKPLATE FIXED OIL TANK
-
120451511 BOLTBOLT
-
130450192 WASHERWASHER
-
140450268 NUT FLANGENUT FLANGE
-
150450285 BOLT HEXAGONBOLT HEXAGON
-
160450278 COLLARCOLLAR
