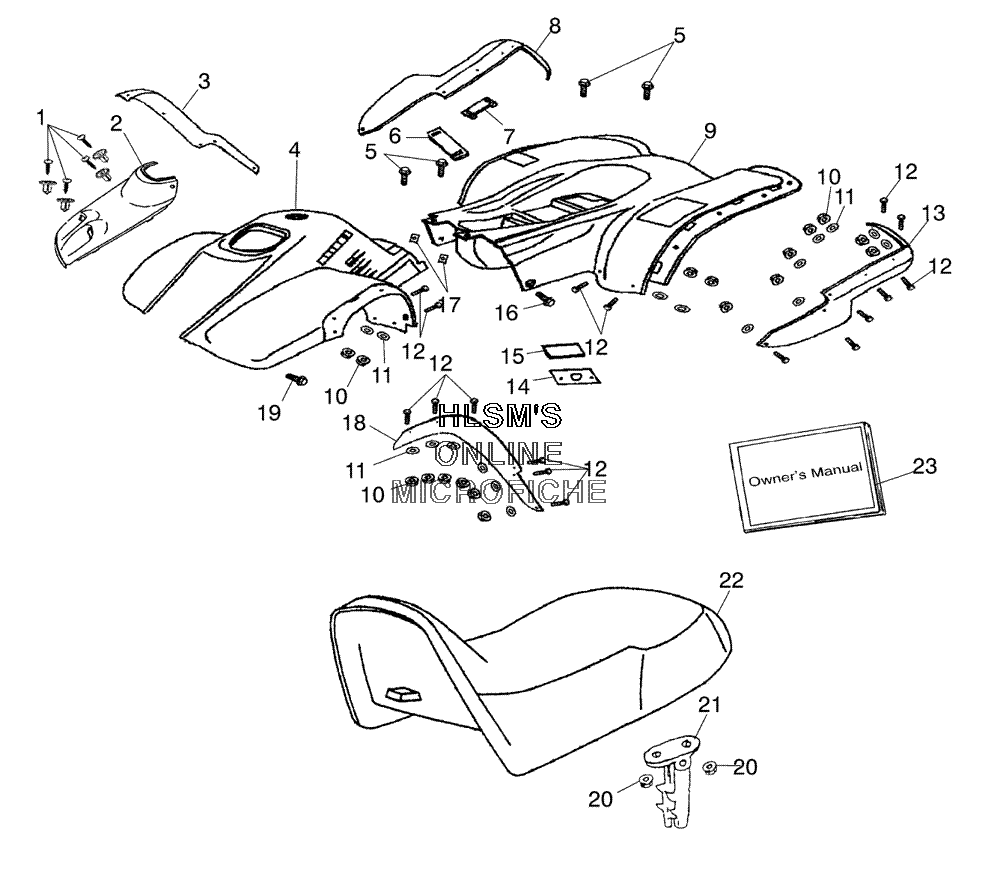

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 90 (A04FA09CB) (NBU) - 2004 года выпуска`
-
№АртикулНазвание
-
10451076 RIVET PLASTICRIVET PLASTIC
-
20451164-455 COVER SPORTSMAN (FRONT/NBU CAMO)COVER SPORTSMAN (FRONT/NBU CAMO)
-
30451166-070 MUDFLAP (FRONT/RIGHT/BLACK)MUDFLAP (FRONT/RIGHT/BLACK)
-
40451163-455 CAB (FRONT/NBU CAMO)CAB (FRONT/NBU CAMO)
-
50450340 BOLT HEXAGONBOLT HEXAGON
-
60450897 STRAP BATTERYSTRAP BATTERY
-
70450898 STRAP TOOL BOXSTRAP TOOL BOX
-
80451168-070 MUDFLAP (REAR/RIGHT/BLACK)MUDFLAP (REAR/RIGHT/BLACK)
-
90451144-455 CAB SPORTSMAN (REAR/NBU CAMO)CAB SPORTSMAN (REAR/NBU CAMO)
-
100450741 NUT LOCKNUT LOCK
-
110450710 WASHER PLAINWASHER PLAIN
-
120450622 BOLT PHILLIPSBOLT PHILLIPS
-
130451169-070 MUDFLAP (REAR/LEFT/BLACK)MUDFLAP (REAR/LEFT/BLACK)
-
140450345 PAD FOIL PROTECTORPAD FOIL PROTECTOR
-
150450346 FOAM BATTERY PADFOAM BATTERY PAD
-
160450297 BOLT PANBOLT PAN
-
170450342 NUT U PLATENUT U PLATE
-
180451167-070 MUDFLAP (FRONT/LEFT/BLACK)MUDFLAP (FRONT/LEFT/BLACK)
-
190450824 BOLT WITH WASHER HEXAGONBOLT WITH WASHER HEXAGON
-
200450880 NUT FLANGE WITH SE (REAR)NUT FLANGE WITH SE (REAR)
-
210450356 HOOK SEATHOOK SEAT
-
220450631 SEAT SPORTSMAN ASSYSEAT SPORTSMAN ASSY
-
239918778 OWNERS MANUAL, '04 YOUTH ATVOWNERS MANUAL, '04 YOUTH ATV
