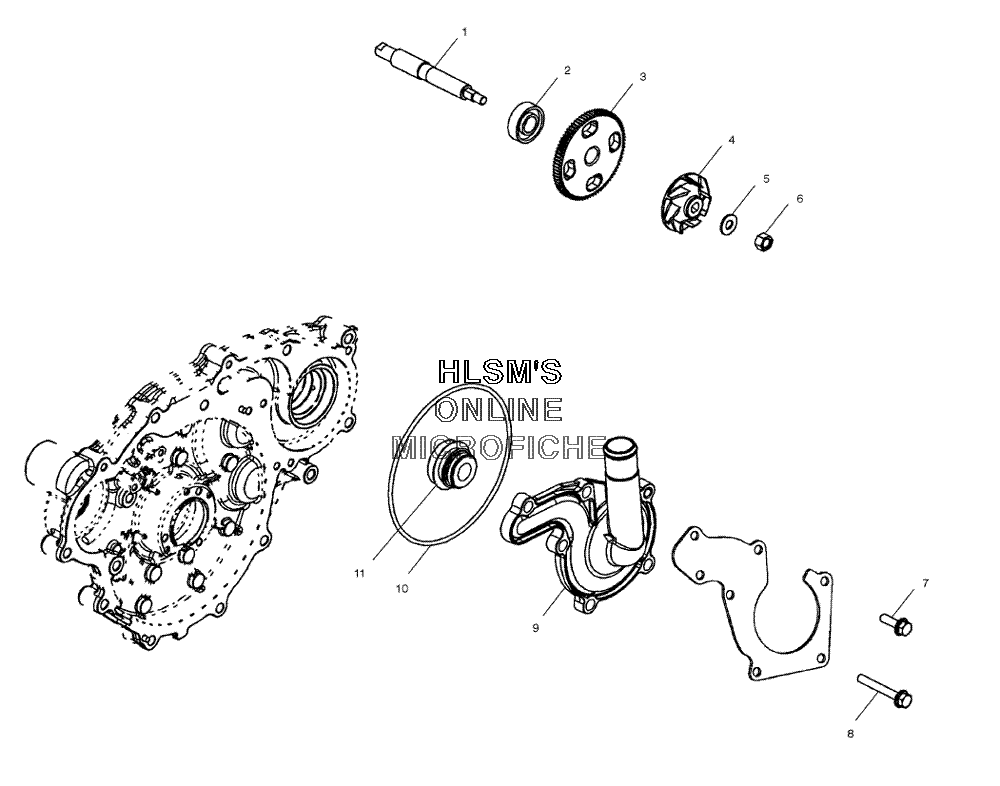

WATER PUMP для Polaris SPORTSMAN 700 (A04CH68AV) (S.G. SUB) - 2004 года выпуска
-
№АртикулНазвание
-
15131419 SHFT,OIL/WTR PUMPSHFT,OIL/WTR PUMP
-
23584404 BEARING,BALL,15X35X11BEARING,BALL,15X35X11
-
45433684 IMPELLER-WATER PUMPIMPELLER-WATER PUMP
-
57555874 WASHER,FLAT,S.S. (10)WASHER,FLAT,S.S. (10)
-
67546804 NUT,HEX, (10), NYLOKNUT,HEX, (10), NYLOK
-
77516823 SCREWSCREW
-
87517950 SCR-M6X1.0X45 HX-FL-Y/DSCR-M6X1.0X45 HX-FL-Y/D
-
91202019 SUBSTITUTED BY 2202601SUBSTITUTED BY 2202601
-
105812048 SEAL-O-RING,.125X.074X5.185SEAL-O-RING,.125X.074X5.185
-
113610075 SEAL-WATERPUMP15X36/40X20,FACESEAL-WATERPUMP15X36/40X20,FACE
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS - MASTER CYLINDER/BRAKE LINE
- CONTROLS - THROTTLE ASSY. / CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD W/ CYLINDER
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - REAR
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL DIPSTICK
- OIL PUMP
- PROPSHAFT - REAR
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TOOL KIT
- • WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
- WINCH ASSY
