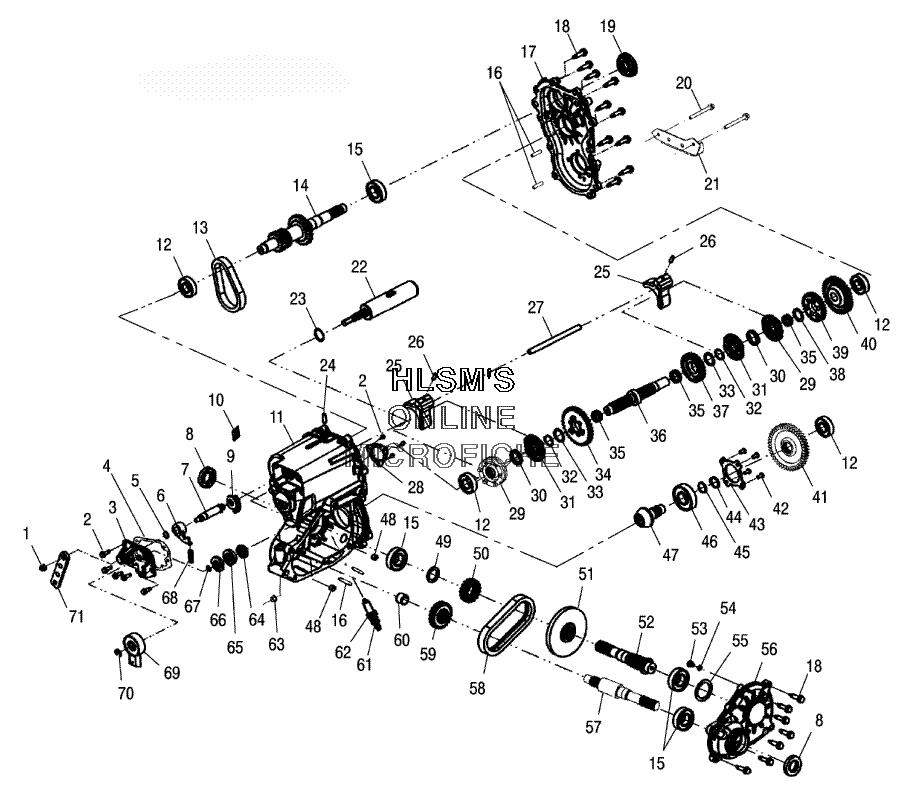

GEARCASE для Polaris SPORTSMAN 700 (A04CH68AU) (BLACK MET.) (USA) - 2004 года выпуска

№

Артикул

Название
1

3233961 NUT LOCK HEXAGON FLANGE NYLON 5/16

NUT LOCK HEXAGON FLANGE NYLON 5/16
2

3233826 SCREW

SCREW
3

3234124 SUBASSY COVER, SECTOR GEAR

SUBASSY COVER, SECTOR GEAR
4

3234123 GASKET

GASKET
5

3233869 O-RING

O-RING
6

3233829 PAWL DETENT

PAWL DETENT
7

3233831 SHAFT SHIFT

SHAFT SHIFT
8

3233788 SEAL TRIPLE LIP

SEAL TRIPLE LIP
9

3233832 GEAR SECTOR, 31T CUT TO 11T

GEAR SECTOR, 31T CUT TO 11T
10

3234143 LABEL OIL FILL/LEVEL CHECK

LABEL OIL FILL/LEVEL CHECK
11

3234128 GEARCASE MAIN, MACH

GEARCASE MAIN, MACH
12

3233018 BEARING

BEARING
13

3233036 CHAIN, SILENT, 34P

CHAIN, SILENT, 34P
14

3234133 SUB ASSY INPUT SHAFT

SUB ASSY INPUT SHAFT
15

3233019 BEARING

BEARING
16

3233247 PIN, DOWEL

PIN, DOWEL
17

3234127 COVER, MAIN (LEFT)

COVER, MAIN (LEFT)
18

3233846 SCREW ROLL FORMING

SCREW ROLL FORMING
19

3233874 SEAL DUAL LIP

SEAL DUAL LIP
20

3234042 SCREW

SCREW
21

3234142 BRACKET TRANSMISSION MOUNT

BRACKET TRANSMISSION MOUNT
22

3233910 DRUM SHIFT

DRUM SHIFT
23

3233548 O-RING

O-RING
24

3233524 TUBE, VENT

TUBE, VENT
25

3233858 FORK SHIFT

FORK SHIFT
26

3233859 PIN DOWEL

PIN DOWEL
27

3233860 RAIL SHIFT SHAFT, C VERSION

RAIL SHIFT SHAFT, C VERSION
28

3233915 PLATE PARK 12 FACE

PLATE PARK 12 FACE
29

3234040 DAMPNER

DAMPNER
30

3234144 SPRING WAVE (1.35 ID X .353)

SPRING WAVE (1.35 ID X .353)
31

3233875 DOG ENGAGEMENT, 6 FACE

DOG ENGAGEMENT, 6 FACE
32

3233850 RING RETAINING

RING RETAINING
33

3233851 WASHER

WASHER
34

3233852 GEAR 33T, 6 FACE ENGAGEMENT

GEAR 33T, 6 FACE ENGAGEMENT
35

3233718 BEARING, NDL, SPLIT CAGE

BEARING, NDL, SPLIT CAGE
36

3233853 SHAFT REVERSE

SHAFT REVERSE
37

3233854 SPROCKET 24T, 6 FACE ENGAGEMENT

SPROCKET 24T, 6 FACE ENGAGEMENT
38

3233855 WASHER

WASHER
39

3234135 GEAR HELICAL, 23T 6 FACE

GEAR HELICAL, 23T 6 FACE
40

3234136 GEAR HELICAL, MID OUTPUT, 51T

GEAR HELICAL, MID OUTPUT, 51T
41

3234137 GEAR HELICAL, MID OUTPUT, 56T

GEAR HELICAL, MID OUTPUT, 56T
42

3234086 SCREW TORX TRUSS HD

SCREW TORX TRUSS HD
43

3234122 COVER BEARING

COVER BEARING
44

3233106 RING, SNAP

RING, SNAP
45

3233357 SPACER

SPACER
46

3234055 BEARING BALL, 6305R

BEARING BALL, 6305R
47

3234140 SHAFT PINION, 10T

SHAFT PINION, 10T
48

3233794 PLUG HEX, HOLLOW

PLUG HEX, HOLLOW
49

3233619 WASHER, THRUST

WASHER, THRUST
50

3233873 SPROCKET 22T/18T

SPROCKET 22T/18T
51

3233621 GEAR, SPIRAL BEVEL 31T

GEAR, SPIRAL BEVEL 31T
52

3233911 SHAFT OUTPUT, MAIN, REAR

SHAFT OUTPUT, MAIN, REAR
53

3233582 BUTTON, THRUST

BUTTON, THRUST
54

3233583 SHIM (.450 X .265)

SHIM (.450 X .265)
55

3233611 SHIM

SHIM
56

3234130 COVER FRONT OUTPUT, MACH

COVER FRONT OUTPUT, MACH
57

3233625 SHAFT, FRONT OUTPUT

SHAFT, FRONT OUTPUT
58

3233784 CHAIN SILENT, REXNORD

CHAIN SILENT, REXNORD
59

3233844 SPROCKET 22T

SPROCKET 22T
60

3233552 BUSHING, GARLOCK

BUSHING, GARLOCK
61

3234013 CLAMP TIE

CLAMP TIE
62

3233917 SUBASSY PARK LOCKOUT

SUBASSY PARK LOCKOUT
63

3234043 NUT

NUT
64

3233839 GEAR SECTOR, 16T

GEAR SECTOR, 16T
65

3233838 DISC LOCKOUT

DISC LOCKOUT
66

3234082 STAR DETENT

STAR DETENT
67

3233076 O-RING

O-RING
68

3233830 SPRING COMPRESSION

SPRING COMPRESSION
69

3233835 SWITCH ROTARY, 6 PIN

SWITCH ROTARY, 6 PIN
70

3233834 RING RETAINING

RING RETAINING
71

3233906 BELLCRANK SHIFT DRUM

BELLCRANK SHIFT DRUM
71

1341470 ASSY GEARCASE

ASSY GEARCASE
