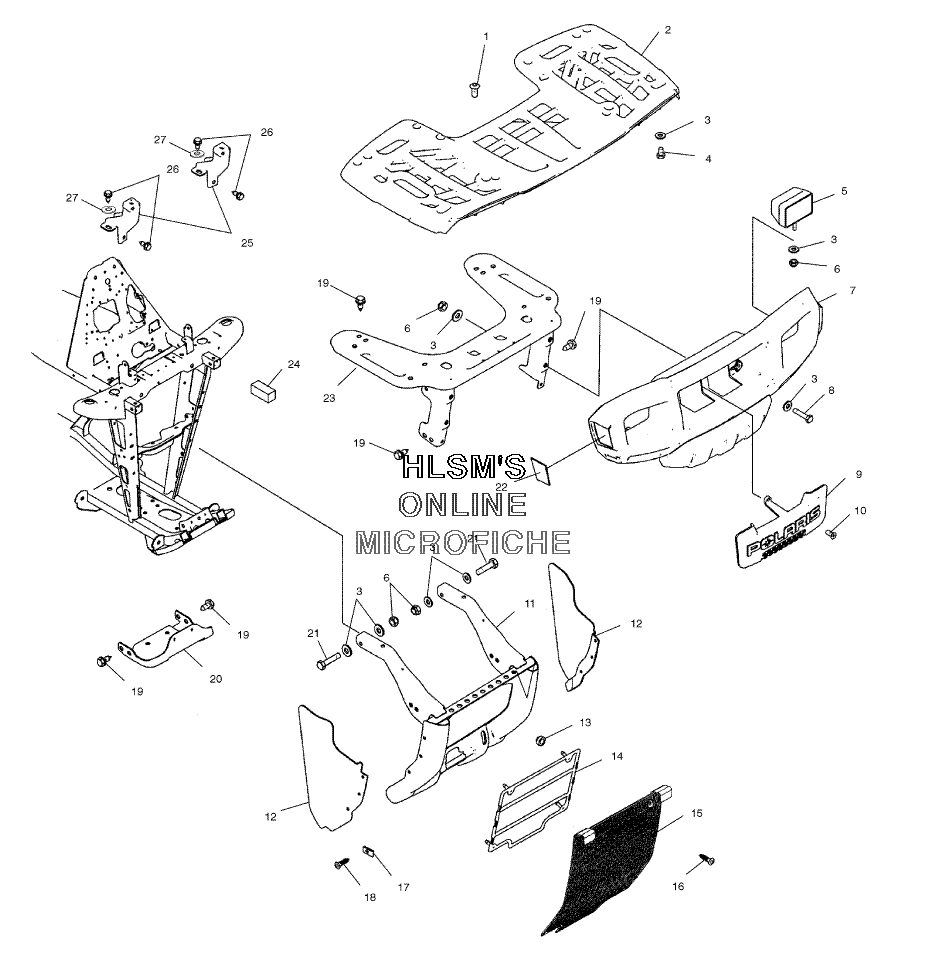

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 700 (A04CH68AN) (SONIC BLUE MET.) - 2004 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
25435240-070 RACK GEN VI (FRONT/BLACK)RACK GEN VI (FRONT/BLACK)
-
37558402 WASHER FLATWASHER FLAT
-
47517208 SCREWSCREW
-
52431017 HEADLIGHT 27W BOTTOM MOUNT ASSYHEADLIGHT 27W BOTTOM MOUNT ASSY
-
54030059 BULB HEADLIGHT 27W.HOBBSBULB HEADLIGHT 27W.HOBBS
-
67542324 NUT NYLOKNUT NYLOK
-
72632757-070 BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL)BUMPER ASSY (FRONT/BLACK) (INCL. WARNING DECAL)
-
87515306 SCREWSCREW
-
95434699-070 PANEL BUMPER (FRONT/BLACK)PANEL BUMPER (FRONT/BLACK)
-
107512094 SCREWSCREW
-
111014412-067 WELD GUARD BRUSH BLACKWELD GUARD BRUSH BLACK
-
125434314 SHIELD RADIATOR SIDE (LEFT)SHIELD RADIATOR SIDE (LEFT)
-
125434315 SHIELD RADIATOR SIDE (RIGHT)SHIELD RADIATOR SIDE (RIGHT)
-
135412504 GROMMET RUBBER MOUNT (25")GROMMET RUBBER MOUNT (25")
-
145435046 COVER RADIATOR MESH LARGECOVER RADIATOR MESH LARGE
-
155247507-067 GRILL BRUSH GUARD (BLACK)GRILL BRUSH GUARD (BLACK)
-
167518046 SCREWSCREW
-
177670094 NUTNUT
-
187512097 SCREWSCREW
-
197515399 SCREWSCREW
-
205245767-067 BUMPER BRAKET (LOWER/BLACK)BUMPER BRAKET (LOWER/BLACK)
-
217512329 BOLTBOLT
-
227171474 DECAL AMBER REFLECTOR (LEFT)DECAL AMBER REFLECTOR (LEFT)
-
227171475 DECAL AMBER REFLECTOR (RIGHT)DECAL AMBER REFLECTOR (RIGHT)
-
231014020-067 WELD SUPPORT RACK (FRONT/BLACK)WELD SUPPORT RACK (FRONT/BLACK)
-
245810467 PLUG FRAMEPLUG FRAME
-
251014261-067 WELD SUPPORT RACK (FRONT/LEFT/BLACK)WELD SUPPORT RACK (FRONT/LEFT/BLACK)
-
251014262-067 WELD SUPPORT RACK (FRONT/RIGHT/BLACK)WELD SUPPORT RACK (FRONT/RIGHT/BLACK)
-
267512232 BOLTBOLT
-
277555960 WASHER FLATWASHER FLAT
