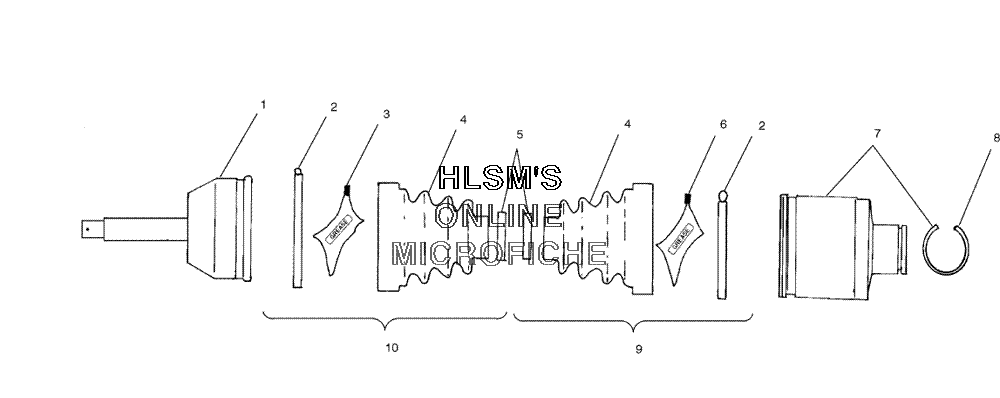

DRIVESHAFT - REAR для Polaris SPORTSMAN 700 (A04CH68AK) (CAMO GREEN MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1590362 JOINT CV SERV GKN
    JOINT CV SERV GKN
  • 2
    1350044 CLAMP LARGE BTB
    CLAMP LARGE BTB
  • 3
    1350046 GREASE 30G BTB
    GREASE 30G BTB
  • 4
    1350045 BOOT
    BOOT
  • 5
    1350043 CLAMP SMALL BTB
    CLAMP SMALL BTB
  • 6
    1350047 GREASE 50G BTB
    GREASE 50G BTB
  • 7
    1590281 PLUNGING JOINT
    PLUNGING JOINT
  • 8
    1350042 SPRING RING
    SPRING RING
  • 9
    2201374 BOOT REPLACEMENT KIT
    BOOT REPLACEMENT KIT
  • 10
    2201373 BOOT WHEEL SIDE
    BOOT WHEEL SIDE
  • 10
    1380197 DRIVE SHAFT ASSY (REAR)
    DRIVE SHAFT ASSY (REAR)
