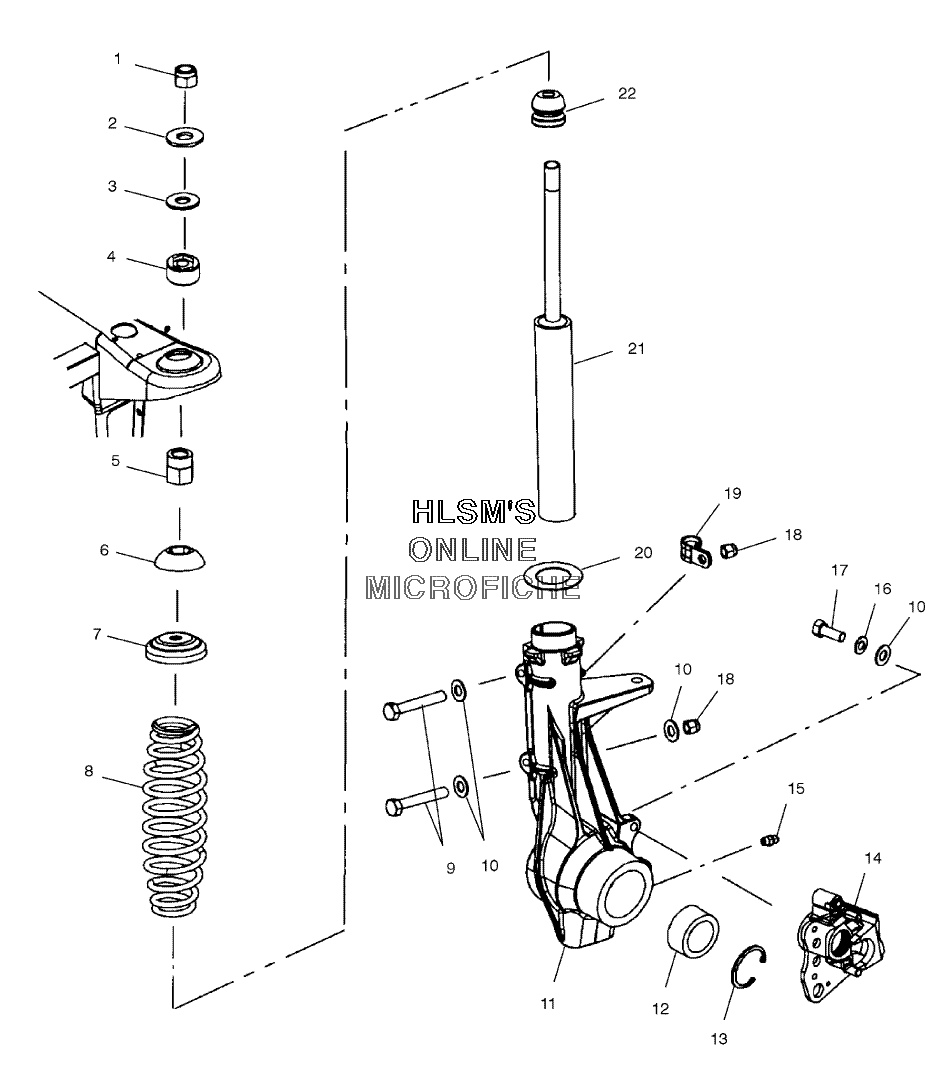

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 700 (A04CH68AJ) (MED. (YELLOW) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT (10)
    NUT (10)
  • 2
    7555749 WASHER (10)
    WASHER (10)
  • 3
    5810291 SPACER, RUBBER (10)
    SPACER, RUBBER (10)
  • 4
    5432872 PIVOT,BALL,TOP
    PIVOT,BALL,TOP
  • 5
    5132062 SPACER-1/2-20
    SPACER-1/2-20
  • 6
    5432871 PIVOT,BALL,BOTTOM
    PIVOT,BALL,BOTTOM
  • 7
    5243364 RETAINER-SPRING
    RETAINER-SPRING
  • 8
    7042313-067 SPRING-COMP,70-120#,12 LG,BLK (AC)
    SPRING-COMP,70-120#,12 LG,BLK (AC)
  • 8
    7042313-293 SPRING-COMP,70-120#,12 LG,RED (AF) (AH) (AJ)
    SPRING-COMP,70-120#,12 LG,RED (AF) (AH) (AJ)
  • 8
    7041985-067 SPRING-COMP,120/150,BLK (AT) (AV)
    SPRING-COMP,120/150,BLK (AT) (AV)
  • 9
    7515339 BOLT
    BOLT
  • 10
    7558402 WASHER,FLAT (10)
    WASHER,FLAT (10)
  • 11
    5132301 SUBSTITUTED BY 1822653
    SUBSTITUTED BY 1822653
  • 11
    5132302 SUBSTITUTED BY 1820901
    SUBSTITUTED BY 1820901
  • 12
    3514342 BEARING-AXLE TUBE/HUBSTRUT
    BEARING-AXLE TUBE/HUBSTRUT
  • 13
    7710507 RING,RET.,2.500 INTERNAL (10)
    RING,RET.,2.500 INTERNAL (10)
  • 15
    7080306 FITTING,LUBE.W/BALL CK. (10)
    FITTING,LUBE.W/BALL CK. (10)
  • 16
    7552901 WASHER,SPRING LOCK (10)
    WASHER,SPRING LOCK (10)
  • 17
    7512365 SCREW, CAP (10)
    SCREW, CAP (10)
  • 18
    7542324 NUT,NYLOK (10)
    NUT,NYLOK (10)
  • 19
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 20
    5211115 WASHER (10)
    WASHER (10)
  • 21
    7041761 STRUT-FRONT,18X30MM,153.8MM ST
    STRUT-FRONT,18X30MM,153.8MM ST
  • 22
    5411608 SUBSTITUTED BY 5412665
    SUBSTITUTED BY 5412665
