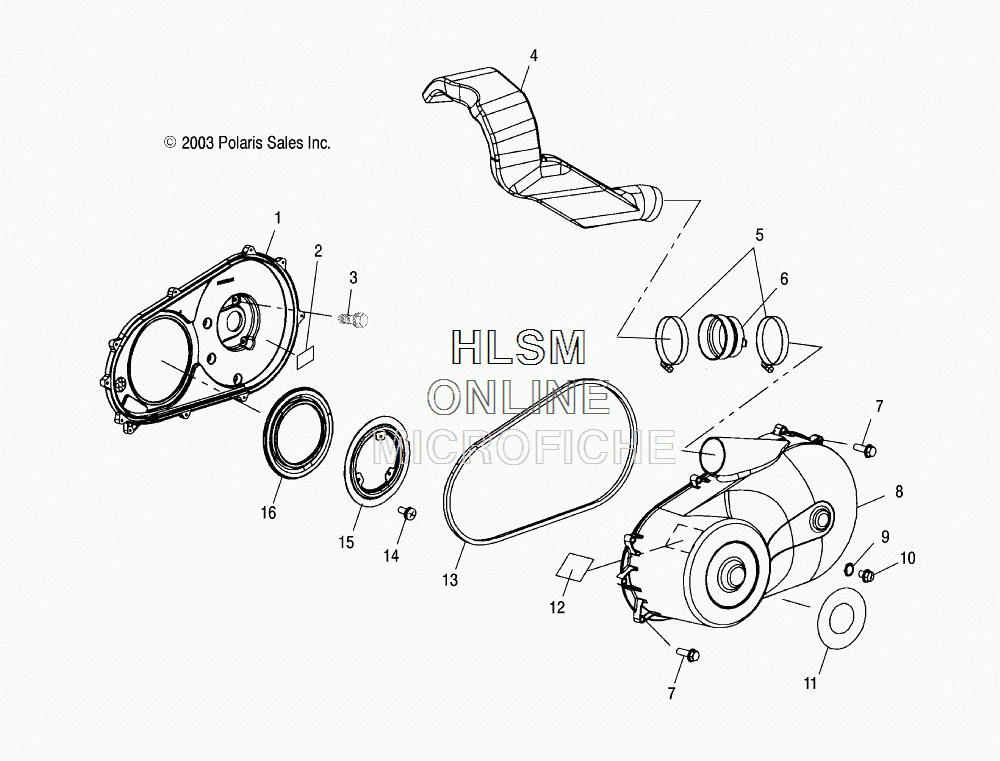

CLUTCH COVER для Polaris SPORTSMAN 600 (A04CH59AT) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5434235 COVER, CLUTCH, INNER
    COVER, CLUTCH, INNER
  • 2
    5412675 STOPPER, INNER CLUTCH COVER
    STOPPER, INNER CLUTCH COVER
  • 3
    7517599 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 4
    5434012 DUCT, CLUTCH OUTLET
    DUCT, CLUTCH OUTLET
  • 5
    7080707 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 6
    5411489 BOOT, DUCT
    BOOT, DUCT
  • 7
    7512094 SCREW
    SCREW
  • 8
    2633262 ASM., CLUTCH COVER, OUTER
    ASM., CLUTCH COVER, OUTER
  • 9
    5410542 O-RING
    O-RING
  • 10
    5434264 PLUG
    PLUG
  • 11
    7077666 DECAL, 'AUTOMATIC/EBS', CLUTCH
    DECAL, 'AUTOMATIC/EBS', CLUTCH
  • 12
    7078689 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
  • 13
    5521578 SEAL, COVER, CLUTCH, OUTER
    SEAL, COVER, CLUTCH, OUTER
  • 14
    7517867 SCREW
    SCREW
  • 15
    5244527-067 BRACKET, RETAINER, SEAL
    BRACKET, RETAINER, SEAL
  • 16
    5411918 SEAL, COVER, INNER
    SEAL, COVER, INNER
