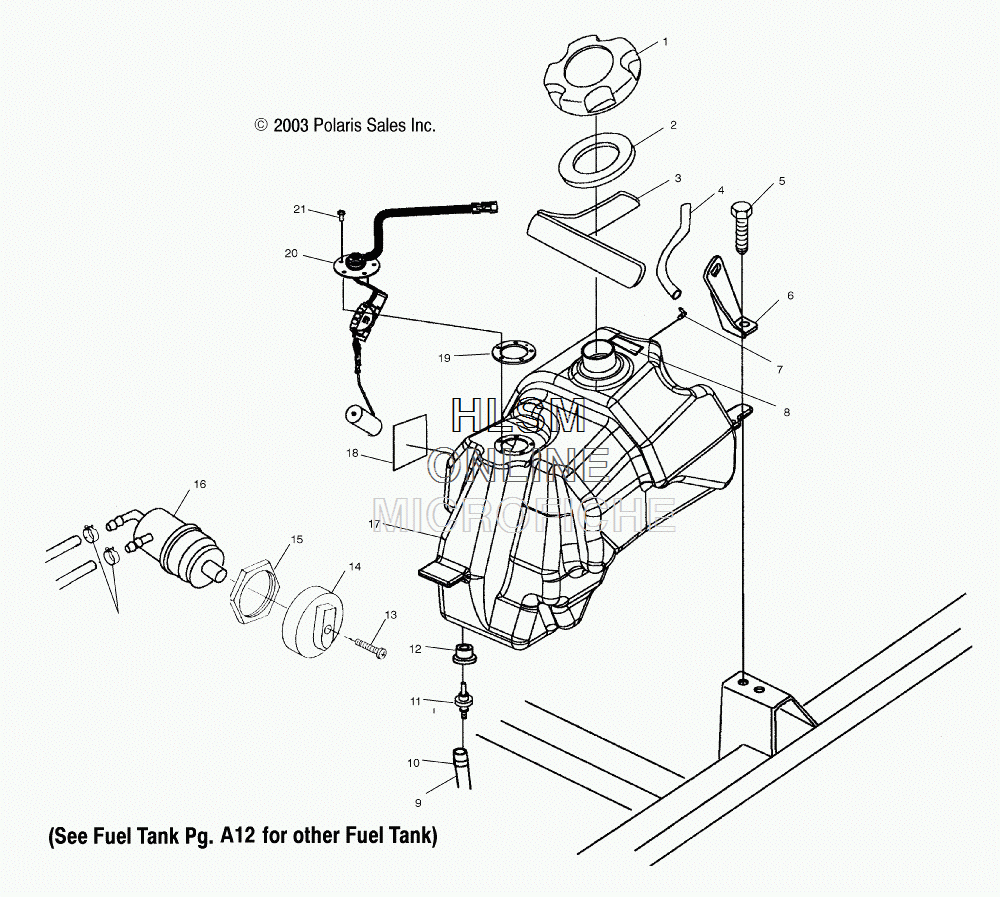

FUEL TANK для Polaris SPORTSMAN 600 (A04CH59AK) (SHADOW GRASS SUB.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 2
    5812123 GASKET, FUEL CAP
    GASKET, FUEL CAP
  • 3
    5812265 SEAL, FOAM
    SEAL, FOAM
  • 4
    8360009-600 LINE, FUEL
    LINE, FUEL
  • 5
    7517685 SCREW
    SCREW
  • 6
    5247184 BRACKET, MOUNTING, REAR, LEFT HAND
    BRACKET, MOUNTING, REAR, LEFT HAND
  • 6
    5247185 BRACKET, MOUNTING, REAR, RIGHT HAND
    BRACKET, MOUNTING, REAR, RIGHT HAND
  • 7
    5431053 VENT, TANK
    VENT, TANK
  • 8
    5812004 FOIL, TANK
    FOIL, TANK
  • 9
    8450103 HOSE, FUEL
    HOSE, FUEL
  • 10
    7080003 CLAMP, HOSE, RED
    CLAMP, HOSE, RED
  • 11
    7052346 FITTING, FUEL OUTLET, RESERVE
    FITTING, FUEL OUTLET, RESERVE
  • 12
    7052362 GROMMET
    GROMMET
  • 13
    7517505 SCREW
    SCREW
  • 14
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 15
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 16
    7052159 VALVE, ON/OFF
    VALVE, ON/OFF
  • 17
    2520339 ASM., FUEL TANK W/SENDER (INCL. 7,8,11,18-21)
    ASM., FUEL TANK W/SENDER (INCL. 7,8,11,18-21)
  • 18
    5812005 FOIL, TANK
    FOIL, TANK
  • 19
    5810858 GASKET
    GASKET
  • 20
    2410289 SENDER, FUEL
    SENDER, FUEL
  • 21
    7512056 SCREW
    SCREW
