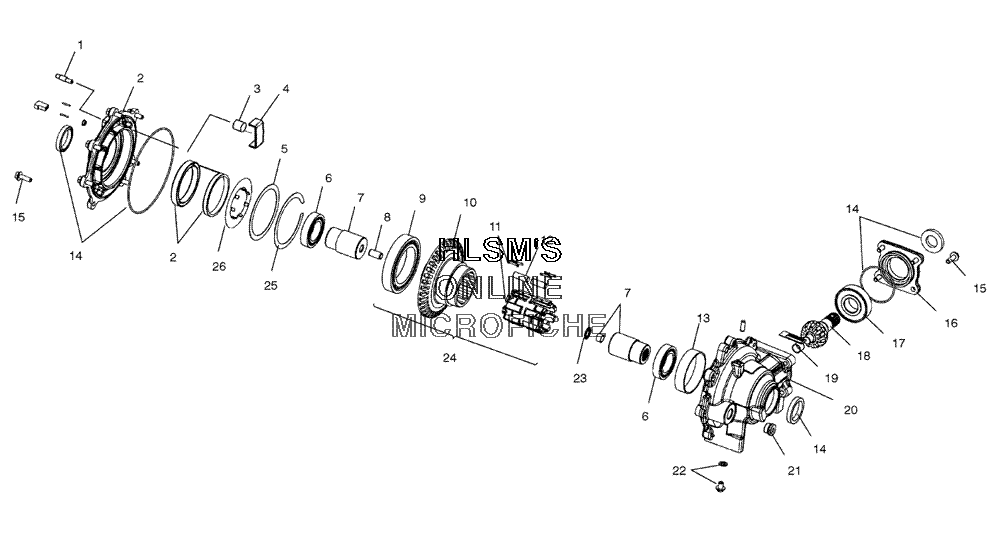

DIFFERENTIAL - FRONT для Polaris SPORTSMAN 500 (A04CH50AW) (BLAZING RED) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3234163 SCREW SET
    SCREW SET
  • 2
    3233998 COVER PLATE ASSY
    COVER PLATE ASSY
  • 2
    3234159 COVER PLATE ASSY (INCL. OUTPUT COVER INSERT AND COIL)(1341497)
    COVER PLATE ASSY (INCL. OUTPUT COVER INSERT AND COIL)(1341497)
  • 3
    3234164 BUTTON THRUST (1341497)
    BUTTON THRUST (1341497)
  • 4
    3234165 PLATE THRUST (1341497)
    PLATE THRUST (1341497)
  • 5
    3233925 SHIM SET KIT (INCL. SHIMS)(1341344)
    SHIM SET KIT (INCL. SHIMS)(1341344)
  • 5
    3234161 PLATE ARMATURE SHIM (1341497)
    PLATE ARMATURE SHIM (1341497)
  • 6
    3233926 BEARING ROLLER BALL
    BEARING ROLLER BALL
  • 7
    3233953 RACE/OUTPUT HUB ASSY (INCL. 23)
    RACE/OUTPUT HUB ASSY (INCL. 23)
  • 8
    3233928 PIN DOWEL
    PIN DOWEL
  • 9
    3233932 BEARING ROLLER BALL (1341344)
    BEARING ROLLER BALL (1341344)
  • 10
    3233933 CLUTCH HOUSING RING GEAR (1341344)
    CLUTCH HOUSING RING GEAR (1341344)
  • 10
    3234166 CLUTCH HOUSING RING GEAR (1341497)
    CLUTCH HOUSING RING GEAR (1341497)
  • 11
    3234167 ROLL CAGE ASSY
    ROLL CAGE ASSY
  • 12
    3233957 KIT ROLLER
    KIT ROLLER
  • 13
    3234169 (1341497)
    (1341497)
  • 14
    3233956 MINOR REPAIR KIT (INCL. O RINGS AND SEALS)
    MINOR REPAIR KIT (INCL. O RINGS AND SEALS)
  • 15
    3233918
  • 16
    3233947 COVER INPUT MACH
    COVER INPUT MACH
  • 17
    3234112 BEARING DEEP GROVE ROLLER BALL
    BEARING DEEP GROVE ROLLER BALL
  • 18
    3233944 SHAFT PINION 11T MACH
    SHAFT PINION 11T MACH
  • 21
    3233942 PLUG OIL FILL 3/4 16 HOLLOW
    PLUG OIL FILL 3/4 16 HOLLOW
  • 22
    3233951 DRAIN PLUG ASSY (INCL. PLUG AND WASHER)
    DRAIN PLUG ASSY (INCL. PLUG AND WASHER)
  • 23
    3233929 BEARING NEEDLE ROLLER THRUST
    BEARING NEEDLE ROLLER THRUST
  • 24
    3233954 CLUTCH ASSY (INCL. 9 12)(1341344)
    CLUTCH ASSY (INCL. 9 12)(1341344)
  • 24
    3234168 CLUTCH ASSY (INCL. 10 12)(1341497)
    CLUTCH ASSY (INCL. 10 12)(1341497)
  • 25
    3234162 RING RETAINING INTERNAL
    RING RETAINING INTERNAL
  • 26
    3233924 ARMATURE PLATE
    ARMATURE PLATE
  • 26
    3234160 PLATE ARMATURE (1341497)
    PLATE ARMATURE (1341497)
  • 26
    1341344 GEARCASE BEARINGLESS (FRONT)
    GEARCASE BEARINGLESS (FRONT)
  • 26
    1341497 GEARCASE BEARINGLESS ASSY (FRONT) (IF BUILT AFTER 7/14/03)
    GEARCASE BEARINGLESS ASSY (FRONT) (IF BUILT AFTER 7/14/03)
  • 26
    3233955 BOLT KIT
    BOLT KIT
