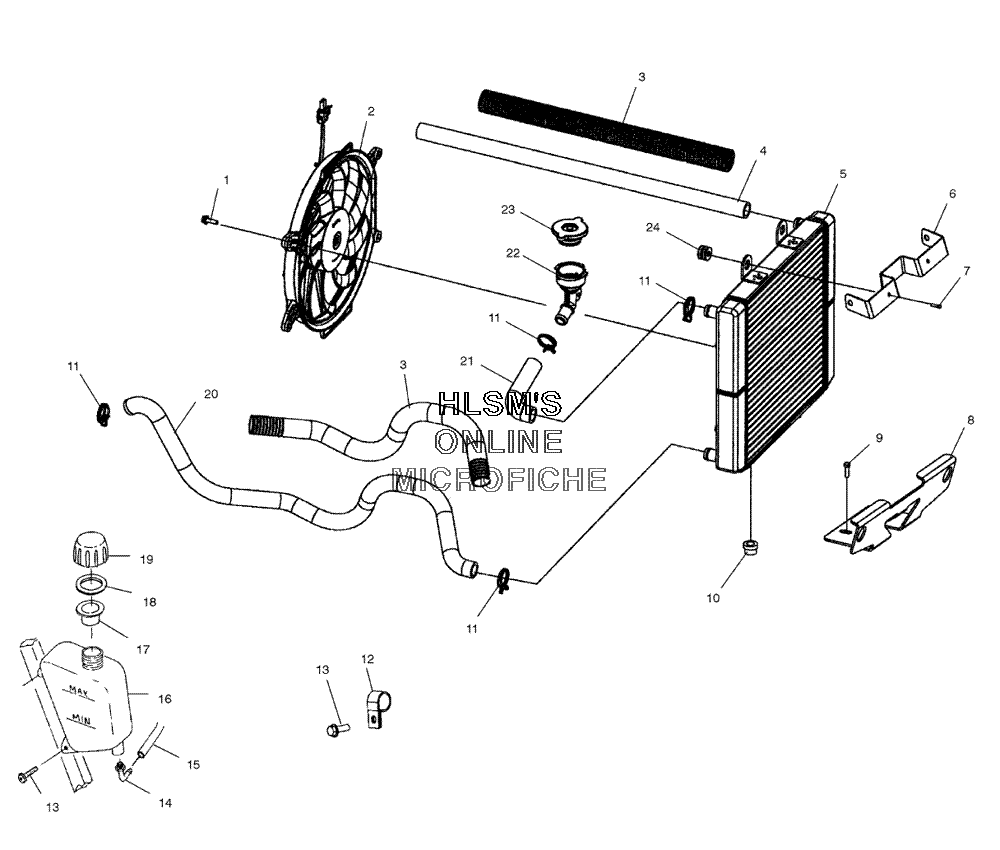

COOLING SYSTEM для Polaris SPORTSMAN 500 (A04CH50AT) (N.B.U. SUB. CAMO) - 2004 года выпуска`
-
№АртикулНазвание
-
17517975 BOLT HEXAGON HEADBOLT HEXAGON HEAD
-
22410383 FAN & MOTOR ASSYFAN & MOTOR ASSY
-
35521550 PLASTIC HOSEGUARD (18 )PLASTIC HOSEGUARD (18 )
-
45412403 HOSE UPPER ENGINEHOSE UPPER ENGINE
-
51240152 RADIATOR CROSSFLOWRADIATOR CROSSFLOW
-
65246754-067 BRAKET RADIATORLOWER(BLACK)BRAKET RADIATORLOWER(BLACK)
-
77515179 SCREWSCREW
-
85247047-067 BRAKET RADIATOR LOWER (BLACK)BRAKET RADIATOR LOWER (BLACK)
-
97517386 SCREWSCREW
-
105410584 BUSHING MOUNT LOWER RADIATORBUSHING MOUNT LOWER RADIATOR
-
117547197 CLIP UCLIP U
-
127080851 CLAMP HOSE VINYL COATEDCLAMP HOSE VINYL COATED
-
137512084 SCREWSCREW
-
147052065 FITTING 90 DEGREEFITTING 90 DEGREE
-
158450003-1525 LINE FUEL 1/4 ID(1525 CM.)LINE FUEL 1/4 ID(1525 CM.)
-
165431673 TANK SURGETANK SURGE
-
175433774 CAP PLUG FLEX TEMP (GREEN)CAP PLUG FLEX TEMP (GREEN)
-
185810279 GASKETGASKET
-
195430743 CAP OVERFLOWCAP OVERFLOW
-
205412404 HOSE LOWER ENGINEHOSE LOWER ENGINE
-
215412405 HOSE FILLER NECKHOSE FILLER NECK
-
225412402 FILLER NECKFILLER NECK
-
231240044 CAP PRESSURECAP PRESSURE
-
245411975 GROMMET INSERT ASSYGROMMET INSERT ASSY
