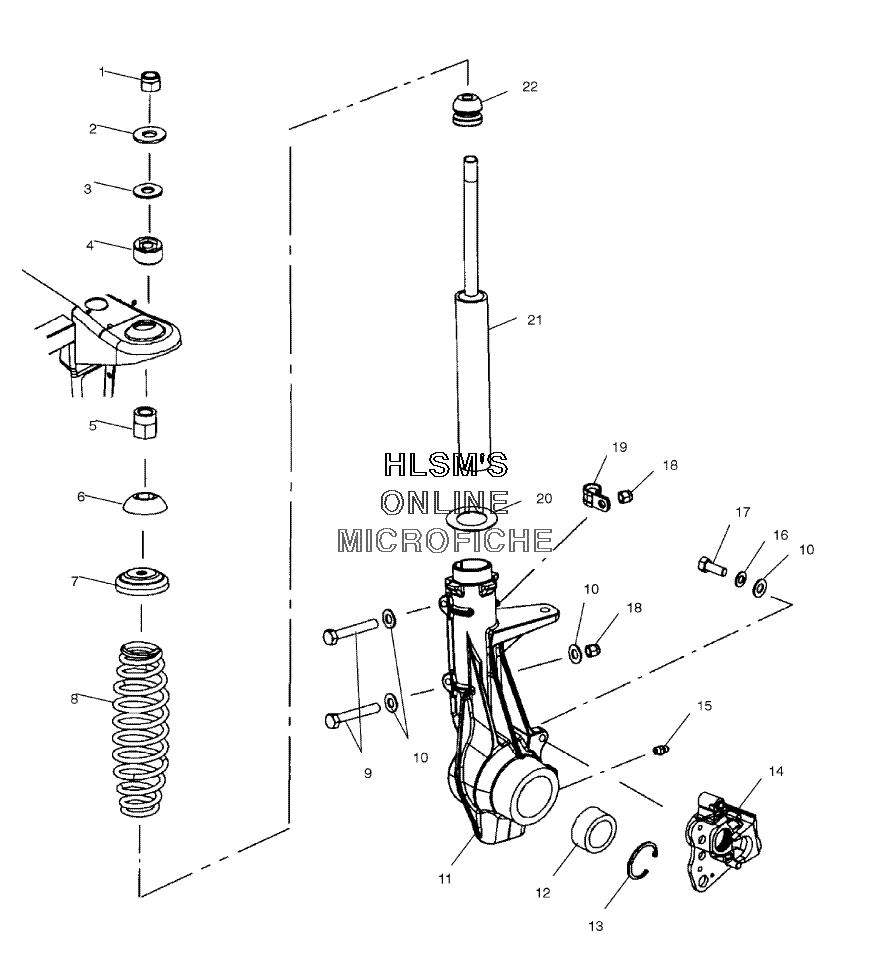

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 500 (A04CH50AO) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER RUBBER
    SPACER RUBBER
  • 4
    5432872 PIVOT BALL TOP
    PIVOT BALL TOP
  • 5
    5132062 SPACER
    SPACER
  • 6
    5432871 PIVOT BALL BOTTOM
    PIVOT BALL BOTTOM
  • 7
    5243364 RETAINER SPRING
    RETAINER SPRING
  • 8
    7041375-067 SPRING COMP (BLACK)
    SPRING COMP (BLACK)
  • 8
    7042312-067 SPRING COMP (BLACK) (IF BUILT AFTER 8/01/03)
    SPRING COMP (BLACK) (IF BUILT AFTER 8/01/03)
  • 8
    7042054-067 SPRING COMP (BLACK)
    SPRING COMP (BLACK)
  • 9
    7515339 BOLT
    BOLT
  • 10
    7558402 WASHER FLAT
    WASHER FLAT
  • 11
    5132301 HUBSTRUT ASSY (LEFT)
    HUBSTRUT ASSY (LEFT)
  • 11
    5132302 HUBSTRUT ASSY (RIGHT)
    HUBSTRUT ASSY (RIGHT)
  • 12
    3514342 BEARING AXLE TUBE HUBSTRUT
    BEARING AXLE TUBE HUBSTRUT
  • 13
    7710507 RING RET. 2.500 INTERNAL
    RING RET. 2.500 INTERNAL
  • 15
    7080306 FITTING LUBE WITH BALL
    FITTING LUBE WITH BALL
  • 16
    7552901 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 17
    7512365 SCREW CAP
    SCREW CAP
  • 21
    7041761 STRUT FRONT
    STRUT FRONT
  • 22
    5411608 BUMPER
    BUMPER
  • 20
    5211115 WASHER
    WASHER
  • 18
    7542324 NUT NYLOK
    NUT NYLOK
  • 19
    7080367 CLAMP CABLE
    CLAMP CABLE
