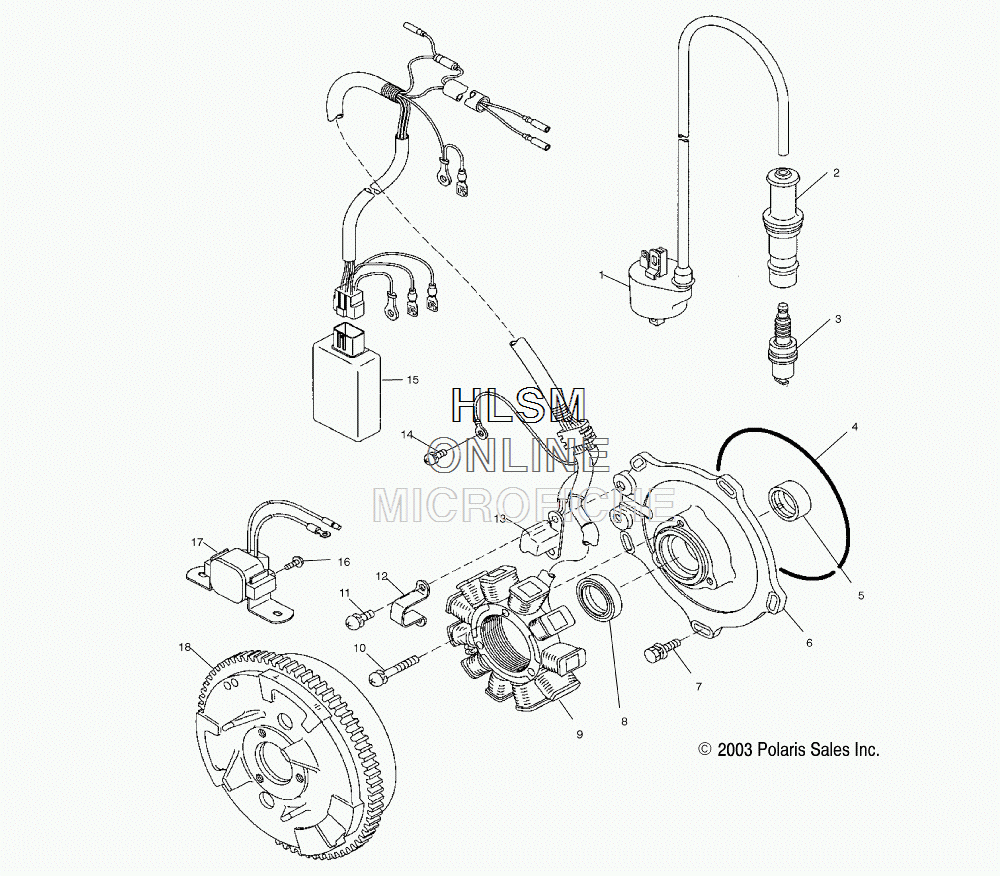

MAGNETO для Polaris SPORTSMAN 500 (A04CH50AC) (N.B.U. SUB CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3085228 COIL, IGNITION
    COIL, IGNITION
  • 2
    3084980 CAP, PLUG, SPARK
    CAP, PLUG, SPARK
  • 3
    3084997 PLUG, SPARK
    PLUG, SPARK
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 METAL, BEARING
    METAL, BEARING
  • 6
    3087167 ASM., PLATE (INCL. 5,6,8-11,14)
    ASM., PLATE (INCL. 5,6,8-11,14)
  • 6
    3086981 PLATE
    PLATE
  • 7
    3081657 BOLT AND WASHER
    BOLT AND WASHER
  • 8
    3084973 SEAL, OIL
    SEAL, OIL
  • 9
    3087168 STATOR (INCL. 13)
    STATOR (INCL. 13)
  • 10
    3086985 SCREW AND WASHER
    SCREW AND WASHER
  • 11
    3084976 SCREW AND WASHER
    SCREW AND WASHER
  • 12
    3085554 BAND, PULSE
    BAND, PULSE
  • 13
    3085360 COIL, PULSER
    COIL, PULSER
  • 14
    3081256 SCREW AND WASHER
    SCREW AND WASHER
  • 15
    3087169 CDI SYSTEM
    CDI SYSTEM
  • 16
    3085359 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3087196 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 18
    3087166 FLYWHEEL/RING GEAR
    FLYWHEEL/RING GEAR
