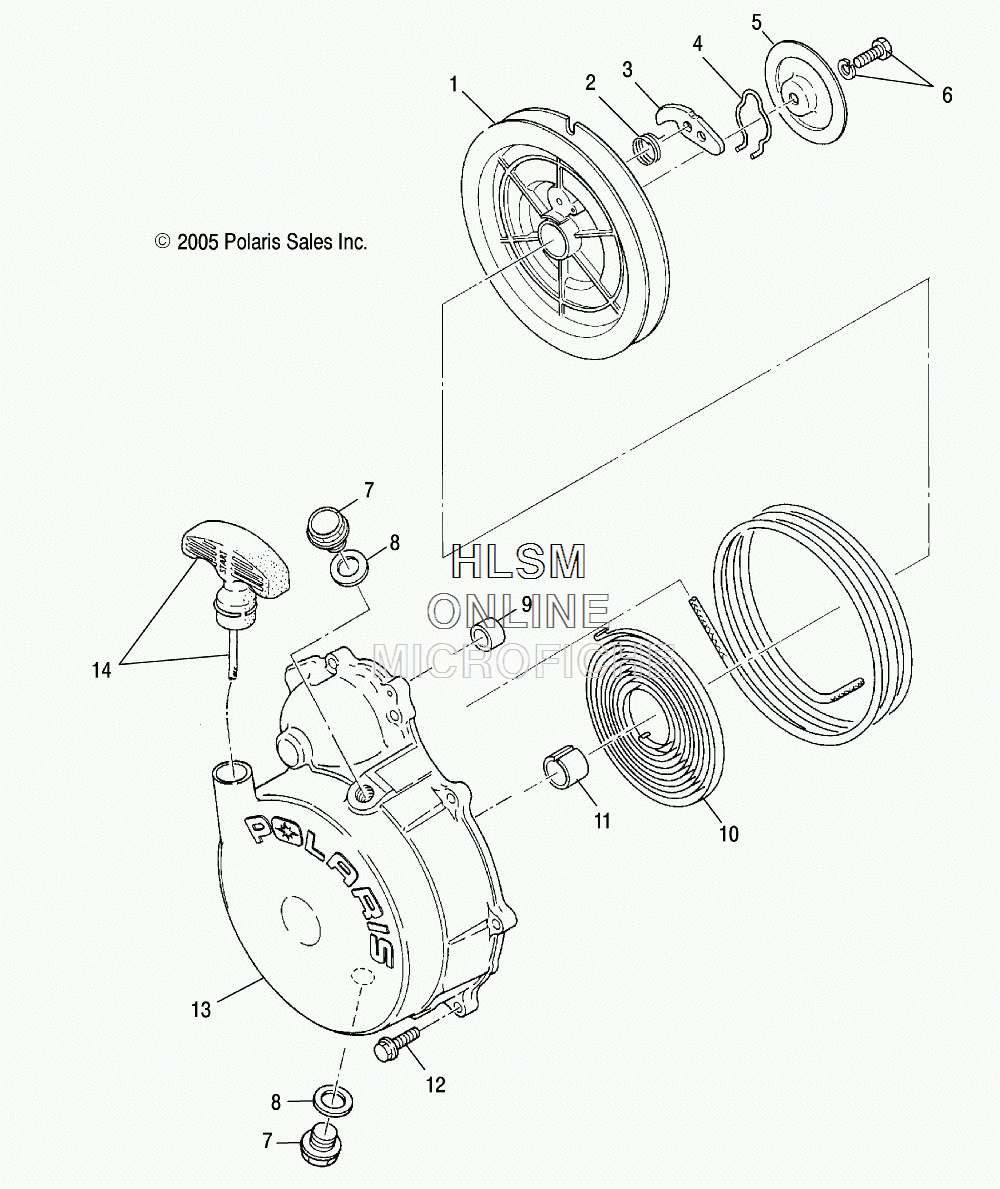

STARTER - RECOIL для Polaris SPORTSMAN 500 (A04CH50AA) (CAMO GREEN MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3084822 ASM., REEL
    ASM., REEL
  • 2
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 3
    3083378 RATCHET
    RATCHET
  • 4
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 5
    3084744 PLATE, FRICTION
    PLATE, FRICTION
  • 6
    3085266 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 7
    3083453 PLUG
    PLUG
  • 8
    3082956 GASKET
    GASKET
  • 9
    3083669 BUSHING, STARTER
    BUSHING, STARTER
  • 10
    3083185 SPRING, SPIRAL
    SPRING, SPIRAL
  • 11
    3084750 BUSHING
    BUSHING
  • 12
    3084877 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    3087163 ASM., RECOIL (INCL. 1-6,9-11,13,14)
    ASM., RECOIL (INCL. 1-6,9-11,13,14)
  • 13
    3087164 ASM., STARTER CASE (INCL. 11)
    ASM., STARTER CASE (INCL. 11)
  • 14
    3085083 ASM., ROPE
    ASM., ROPE
