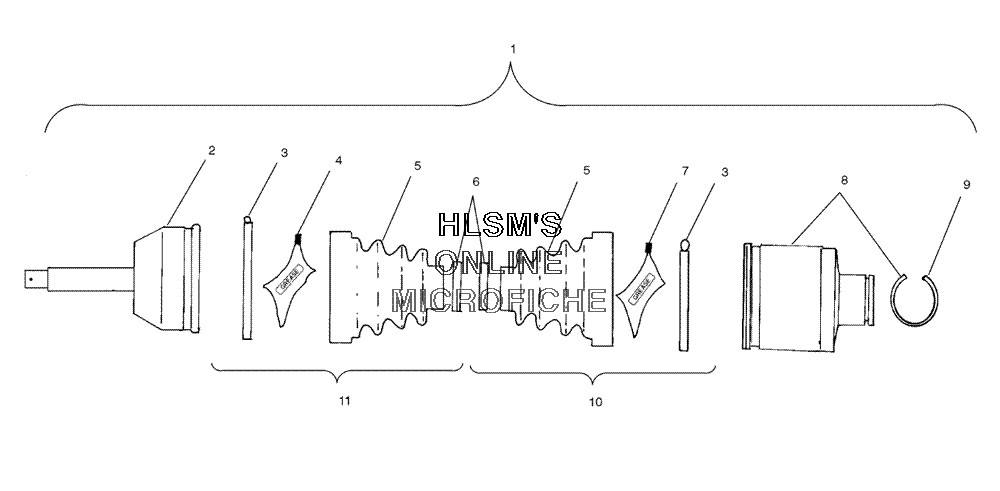

DRIVESHAFT - REAR для Polaris SPORTSMAN 400 (A04CH42AE) (SONIC BLUE MET.) - 2004 года выпуска`
-
№АртикулНазвание
-
11380197 DRIVE SHAFT REAR ASSYDRIVE SHAFT REAR ASSY
-
21590362 JOINT CV SERV GKNJOINT CV SERV GKN
-
31350044 CLAMP LARGE BTBCLAMP LARGE BTB
-
41350046 GREASE 30G BTBGREASE 30G BTB
-
51350045 BOOTBOOT
-
61350043 CLAMP SMALL BTBCLAMP SMALL BTB
-
71350047 GREASE 50G BTBGREASE 50G BTB
-
81590281 PLUNGING JOINTPLUNGING JOINT
-
91350042 SPRING RINGSPRING RING
-
102201374 BOOT REPLACEMENT KITBOOT REPLACEMENT KIT
-
112201373 BOOT WHEEL SIDEBOOT WHEEL SIDE
