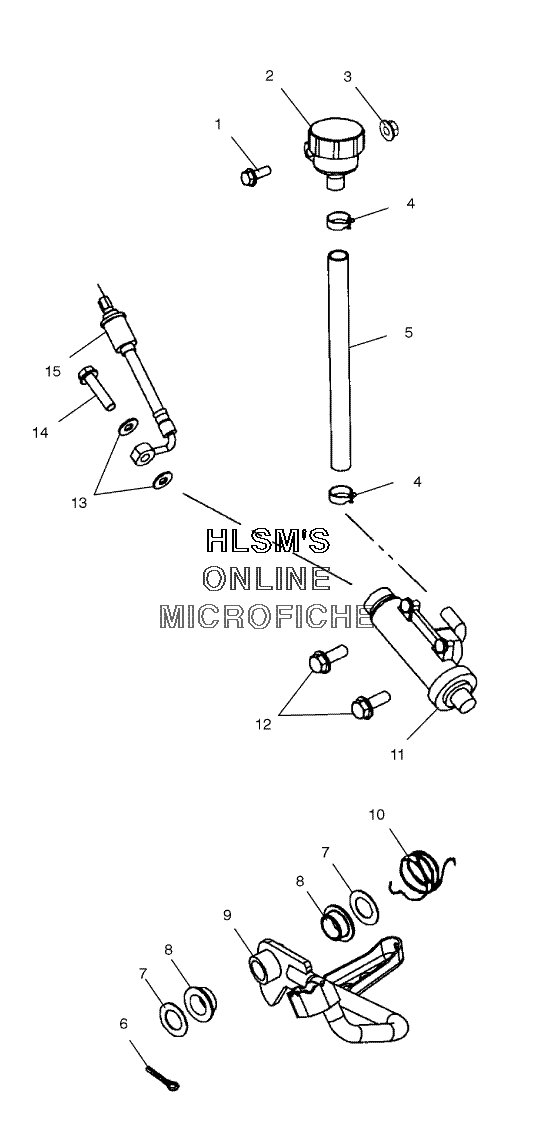

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris SPORTSMAN 400 (A04CH42AA) (CAMO GREEN MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7512240 BOLT
    BOLT
  • 2
    1930854 RESERVOIR BRAKE ASSY (REAR)
    RESERVOIR BRAKE ASSY (REAR)
  • 3
    7542153 NUT NYLOK FLANGED
    NUT NYLOK FLANGED
  • 4
    7080003 CLAMP HOSE
    CLAMP HOSE
  • 5
    1910315 HOSE RESERVOIR (22IN.)
    HOSE RESERVOIR (22IN.)
  • 6
    7661401 PIN COTTER
    PIN COTTER
  • 7
    7555919 WASHER
    WASHER
  • 8
    5431107 BUSHING PEDAL PIVOT
    BUSHING PEDAL PIVOT
  • 9
    1910280-067 ROD BRAKE (BLACK)
    ROD BRAKE (BLACK)
  • 10
    7041750 SPRING TORSION
    SPRING TORSION
  • 11
    1910301 MASTER CYLINDER BRAKE ASSY
    MASTER CYLINDER BRAKE ASSY
  • 12
    7512247 BOLT
    BOLT
  • 13
    5410988 SEAL
    SEAL
  • 14
    1910499 BOLT BANJO (10MM)
    BOLT BANJO (10MM)
  • 15
    1910631 LINE BRAKE MASTER CYLINDER (REAR)
    LINE BRAKE MASTER CYLINDER (REAR)
