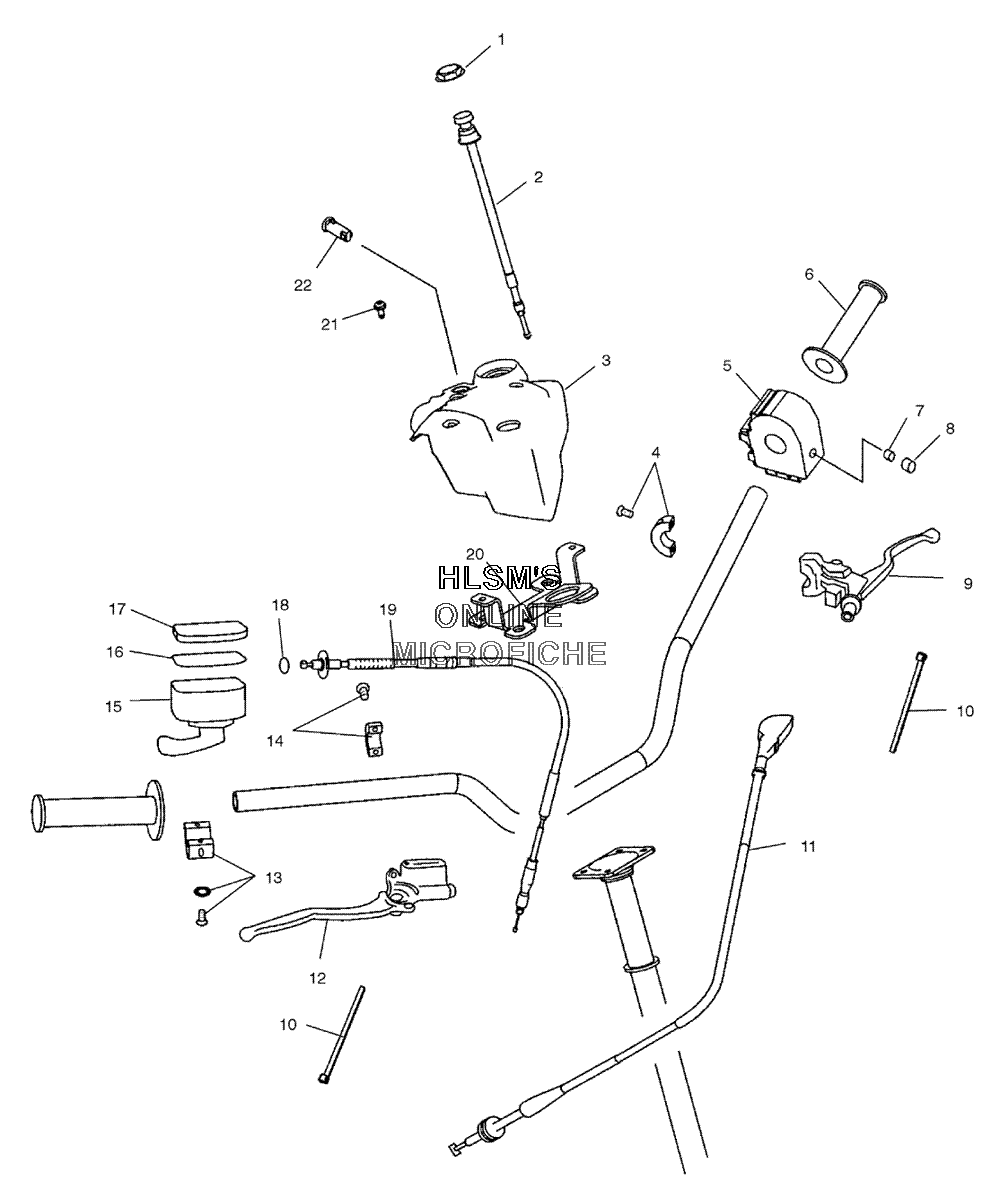

HANDLEBAR - CONTROL ASSY. для Polaris PREDATOR (A04GJ50AC) (MED BLUE MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • ,
    7080922 NUT, CHOKE THREADED HEXAGON (M24X1.5) (M29)
    NUT, CHOKE THREADED HEXAGON (M24X1.5) (M29)
  • 2
    7081097 CABLE CHOKE, FRICTION (31.75")
    CABLE CHOKE, FRICTION (31.75")
  • 3
    5434451-070 PANEL INSTRUMENT (BLACK)
    PANEL INSTRUMENT (BLACK)
  • 5
    4010594 SWITCH HANDLEBAR, H/L/O START
    SWITCH HANDLEBAR, H/L/O START
  • 6
    5434628-070 GRIP, HANDLEBAR (50 DUR) (BLACK)
    GRIP, HANDLEBAR (50 DUR) (BLACK)
  • 7
    7517625 SCREW, SET
    SCREW, SET
  • 8
    5432952 PLUG, HOLE
    PLUG, HOLE
  • 10
    7080138 CABLE TIE
    CABLE TIE
  • 11
    7081034 CABLE CLUTCH
    CABLE CLUTCH
  • 13
    2010191 THROTTLE CLAMP ASSY
    THROTTLE CLAMP ASSY
  • 15
    2010204 THROTTLE CONTROL ASSY, HOBBS
    THROTTLE CONTROL ASSY, HOBBS
  • 16
    5411439 O RING
    O RING
  • 17
    5434113 COVER THROTTLE CONTROL
    COVER THROTTLE CONTROL
  • 18
    5410193 O RING
    O RING
  • 19
    7080967 CABLE THROTTLE (1/4 TURN) (4 STK)
    CABLE THROTTLE (1/4 TURN) (4 STK)
  • 20
    5246383 BRACKET INSTRUMENT PANEL
    BRACKET INSTRUMENT PANEL
  • 21
    7518176 SCREW (10 24X1/2 PH/TX/TRIRD/SEMB)
    SCREW (10 24X1/2 PH/TX/TRIRD/SEMB)
  • 22
    4010728 INDICATOR HOT LIGHT
    INDICATOR HOT LIGHT
  • 22
    4010729 INDICATOR NEUTRAL LIGHT
    INDICATOR NEUTRAL LIGHT
