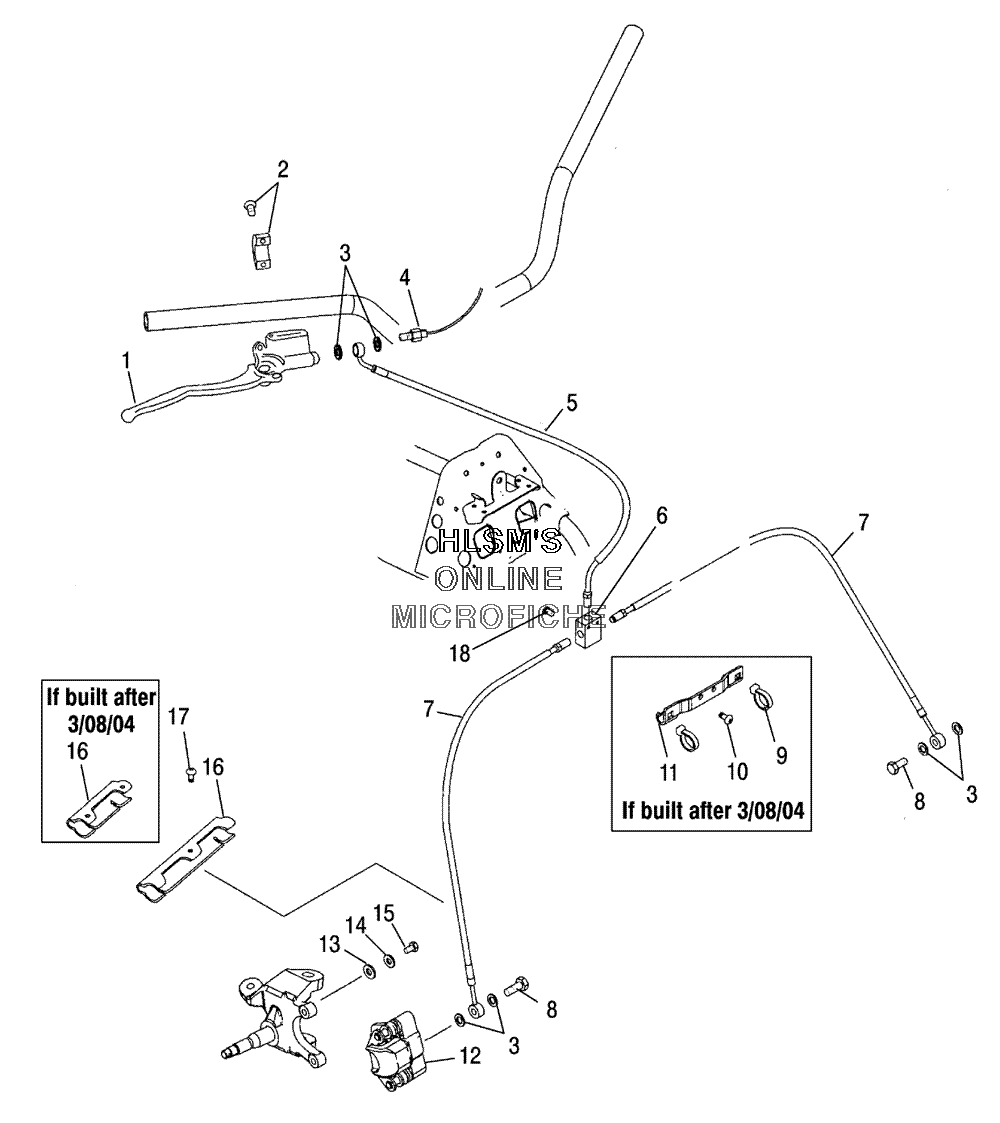

BRAKE - FRONT для Polaris PREDATOR (A04GJ50AB) (BLACK MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1910590 MASTER CYLINDER ASSY, REMOTE (1/2")
    MASTER CYLINDER ASSY, REMOTE (1/2")
  • 3
    5410988 SEAL
    SEAL
  • 4
    4010758 SWITCH PRESSURE, BRAKE W/CONNECTOR
    SWITCH PRESSURE, BRAKE W/CONNECTOR
  • 5
    1910586 LINE BRAKE, MASTER CYLINDER TO J/B
    LINE BRAKE, MASTER CYLINDER TO J/B
  • 6
    7052338 FITTING TEE, BRAKE
    FITTING TEE, BRAKE
  • 7
    1910585 LINE BRAKE, J/B TO CALIPER
    LINE BRAKE, J/B TO CALIPER
  • 8
    1910499 BOLT BANJO (10MMX1.00)
    BOLT BANJO (10MMX1.00)
  • 9
    7080356 TIE, CABLE (IF BUILT AFTER 3/08/04)
    TIE, CABLE (IF BUILT AFTER 3/08/04)
  • 10
    7512017 SCREW (IF BUILT AFTER 3/08/04)
    SCREW (IF BUILT AFTER 3/08/04)
  • 11
    5248601-385 BRACKET JCT BLOCK SUPPORT (SILVER) (IF BUILT AFTER 3/08/04)
    BRACKET JCT BLOCK SUPPORT (SILVER) (IF BUILT AFTER 3/08/04)
  • 12
    1910689 CALIPER ASSY, SC2 BANJO
    CALIPER ASSY, SC2 BANJO
  • 13
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 14
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 15
    7512365 SCREW, CAP
    SCREW, CAP
  • 16
    5435456 RETAINER BRAKE LINE (FRONT) (IF BUILT BEFORE 10/01/03)
    RETAINER BRAKE LINE (FRONT) (IF BUILT BEFORE 10/01/03)
  • 16
    5435496 RETAINER BRAKE LINE (IF BUILT BETWEEN 10/01/03 AND 3/08/04)
    RETAINER BRAKE LINE (IF BUILT BETWEEN 10/01/03 AND 3/08/04)
  • 16
    5435861 RETAINER BRAKE LINE (FRONT) (IF BUILT AFTER 3/08/04)
    RETAINER BRAKE LINE (FRONT) (IF BUILT AFTER 3/08/04)
  • 17
    7517396 SCREW
    SCREW
  • 18
    7512024 SCREW
    SCREW
