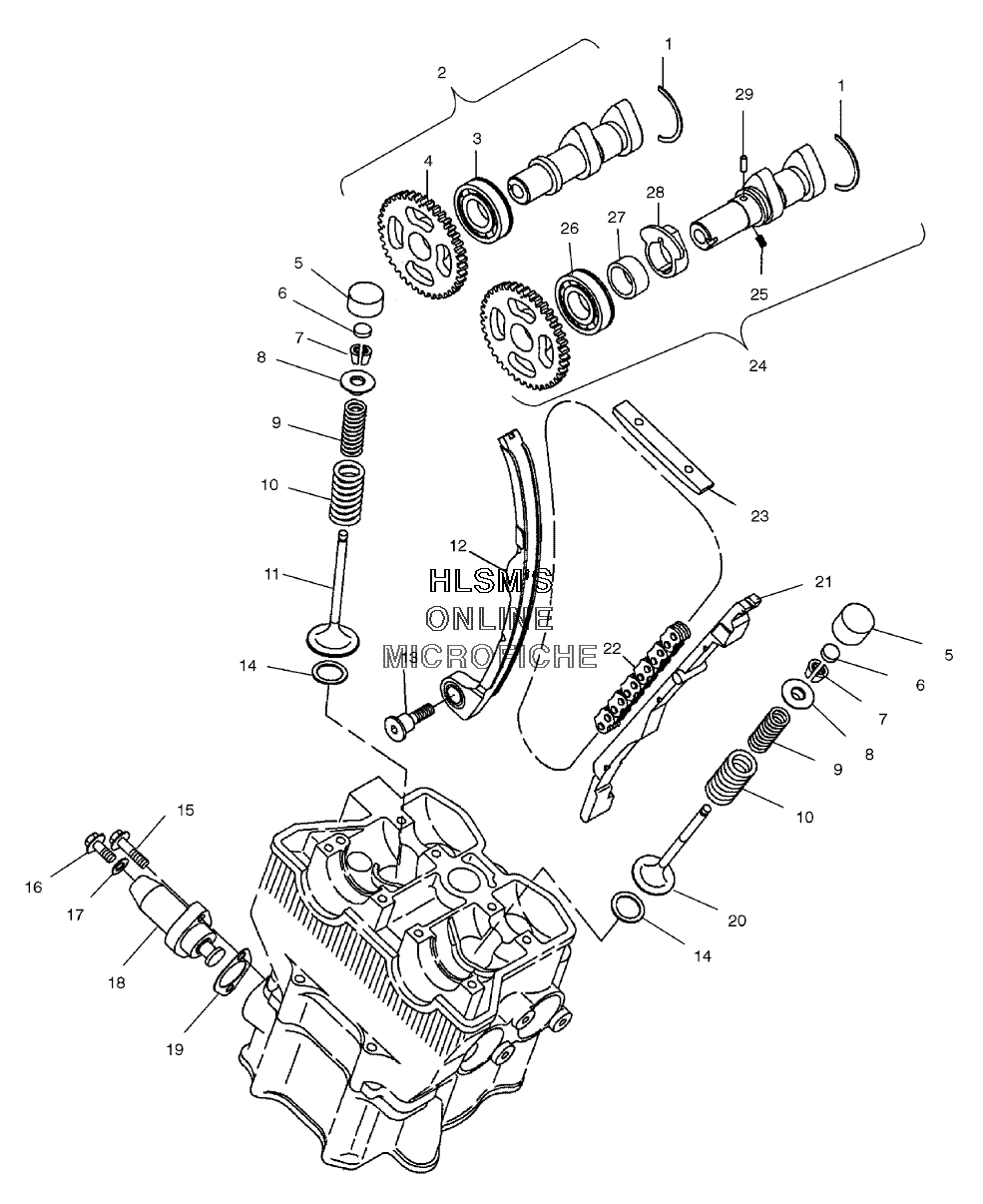

CAMSHAFT W/ VALVE ASSY. для Polaris PREDATOR (A04GJ50AA) (SILVER VENOM MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3087980 STOPPER, BEARING
    STOPPER, BEARING
  • 2
    3087977 CAMSHAFT, INTAKE (INCL. 3, 4)
    CAMSHAFT, INTAKE (INCL. 3, 4)
  • 5
    3087987 VALVE, LIFTER
    VALVE, LIFTER
  • 6
    3087988 PAD, ADJUSTING 1.450
    PAD, ADJUSTING 1.450
  • 6
    3087989 PAD, ADJUSTING 1.500
    PAD, ADJUSTING 1.500
  • 6
    3087990 PAD, ADJUSTING 1.550
    PAD, ADJUSTING 1.550
  • 6
    3087991 PAD, ADJUSTING 1.600
    PAD, ADJUSTING 1.600
  • 6
    3087992 PAD, ADJUSTING 1.625
    PAD, ADJUSTING 1.625
  • 6
    3087993 PAD, ADJUSTING 1.650
    PAD, ADJUSTING 1.650
  • 6
    3087994 PAD, ADJUSTING 1.675
    PAD, ADJUSTING 1.675
  • 6
    3087995 PAD, ADJUSTING 1.700
    PAD, ADJUSTING 1.700
  • 6
    3087996 PAD, ADJUSTING 1.725
    PAD, ADJUSTING 1.725
  • 6
    3087997 PAD, ADJUSTING 1.750
    PAD, ADJUSTING 1.750
  • 6
    3087998 PAD, ADJUSTING 1.775
    PAD, ADJUSTING 1.775
  • 6
    3087999 PAD, ADJUSTING 1.800
    PAD, ADJUSTING 1.800
  • 6
    3088000 PAD, ADJUSTING 1.825
    PAD, ADJUSTING 1.825
  • 6
    3088001 PAD, ADJUSTING 1.850
    PAD, ADJUSTING 1.850
  • 6
    3088002 PAD, ADJUSTING 1.875
    PAD, ADJUSTING 1.875
  • 6
    3088003 PAD, ADJUSTING 1.900
    PAD, ADJUSTING 1.900
  • 6
    3088004 PAD, ADJUSTING 1.925
    PAD, ADJUSTING 1.925
  • 6
    3088005 PAD, ADJUSTING 1.950
    PAD, ADJUSTING 1.950
  • 6
    3088006 PAD, ADJUSTING 1.975
    PAD, ADJUSTING 1.975
  • 6
    3088007 PAD, ADJUSTING 2.000
    PAD, ADJUSTING 2.000
  • 6
    3088008 PAD, ADJUSTING 2.025
    PAD, ADJUSTING 2.025
  • 6
    3088009 PAD, ADJUSTING 2.050
    PAD, ADJUSTING 2.050
  • 6
    3088010 PAD, ADJUSTING 2.075
    PAD, ADJUSTING 2.075
  • 6
    3088011 PAD, ADJUSTING 2.100
    PAD, ADJUSTING 2.100
  • 6
    3088012 PAD, ADJUSTING 2.125
    PAD, ADJUSTING 2.125
  • 6
    3088013 PAD, ADJUSTING 2.150
    PAD, ADJUSTING 2.150
  • 6
    3088014 PAD, ADJUSTING 2.200
    PAD, ADJUSTING 2.200
  • 6
    3088015 PAD, ADJUSTING 2.250
    PAD, ADJUSTING 2.250
  • 6
    3088016 PAD, ADJUSTING 2.300
    PAD, ADJUSTING 2.300
  • 7
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 8
    3087985 RETAINER, SPRING
    RETAINER, SPRING
  • 9
    3087984 VALVE, SPRING (INNER)
    VALVE, SPRING (INNER)
  • 10
    3087983 VALVE, SPRING (OUTER)
    VALVE, SPRING (OUTER)
  • 11
    3087981 VALVE, INTAKE
    VALVE, INTAKE
  • 12
    3088020 LEVER ASSY
    LEVER ASSY
  • 13
    3088024 BOLT, PIVOT
    BOLT, PIVOT
  • 14
    3087986 VALVE, SPRING SEAT
    VALVE, SPRING SEAT
  • 15
    3084874 BOLT, FLANGE
    BOLT, FLANGE
  • 16
    3085359 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3088023 GASKET, ALUMINIUM
    GASKET, ALUMINIUM
  • 18
    3088021 TENSIONER ASSY
    TENSIONER ASSY
  • 19
    3088022 GASKET, TENSIONER
    GASKET, TENSIONER
  • 20
    3087982 VALVE, EXHAUST
    VALVE, EXHAUST
  • 21
    3088018 CHAIN GUIDE 2
    CHAIN GUIDE 2
  • 22
    3088017 CHAIN, TIMING
    CHAIN, TIMING
  • 23
    3088019 CHAIN GUIDE 2
    CHAIN GUIDE 2
  • 24
    3087978 CAMSHAFT, EXHAUST (INCL. 25, 27, 28)
    CAMSHAFT, EXHAUST (INCL. 25, 27, 28)
  • 25
    3088146 SPRING, DECOMP
    SPRING, DECOMP
