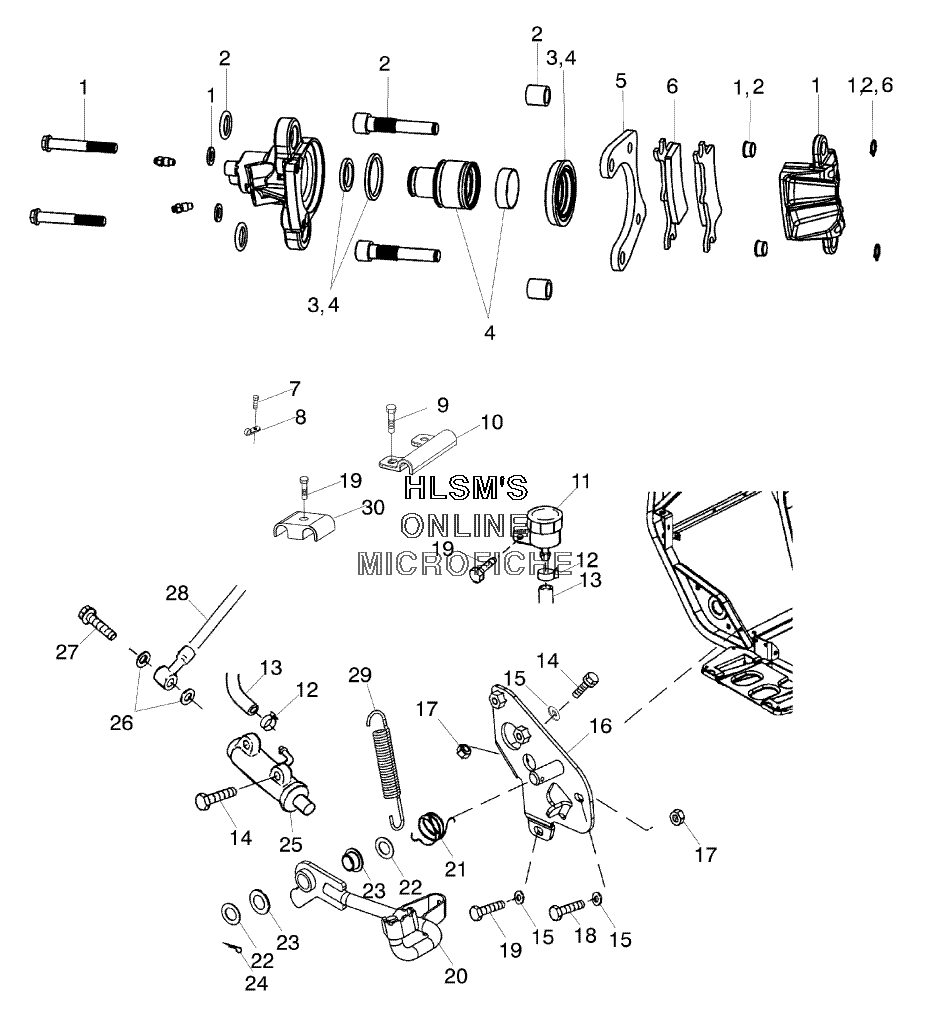

BRAKE - REAR для Polaris MAGNUM 330 4X4 (A04CD32FB) (SILVER MET.) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    2201873 ANVIL BODY KIT
    ANVIL BODY KIT
  • 2
    2201870 SLIDE BOLT KIT (DH4P)
    SLIDE BOLT KIT (DH4P)
  • 3
    2201872 SEAL, KIT (DH4P)
    SEAL, KIT (DH4P)
  • 4
    2201869 PISTON/SEAL KIT (DH4P)
    PISTON/SEAL KIT (DH4P)
  • 5
    2201732 PLATE
    PLATE
  • 6
    2202414 BRAKE PAD ASSY KIT (DH4P)
    BRAKE PAD ASSY KIT (DH4P)
  • 7
    7512018 SCREW
    SCREW
  • 8
    7080573 CLAMP, RUBBER COATED (.562)
    CLAMP, RUBBER COATED (.562)
  • 9
    7512084 SCREW
    SCREW
  • 10
    5434041 CLAMP BRAKE LINE
    CLAMP BRAKE LINE
  • 11
    1930854 RESERVOIR ASSY, BRAKE (REAR)
    RESERVOIR ASSY, BRAKE (REAR)
  • 12
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    1910675 HOSE RESERVOIR, HB
    HOSE RESERVOIR, HB
  • 14
    7515158 SCREW
    SCREW
  • 15
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    1012753-067 MOUNT, PIVOT, BRAKE (REAR/BLACK)
    MOUNT, PIVOT, BRAKE (REAR/BLACK)
  • 17
    7542122 NUT NYLOK
    NUT NYLOK
  • 18
    7512240 BOLT
    BOLT
  • 19
    7517386 SCREW
    SCREW
  • 20
    1014009-067 BRAKE ROD, HB, PIVOT (BLACK)
    BRAKE ROD, HB, PIVOT (BLACK)
  • 21
    7041750 SPRING, TORSION
    SPRING, TORSION
  • 22
    7555919 WASHER
    WASHER
  • 23
    5433189 BUSHING PEDAL PIVOT
    BUSHING PEDAL PIVOT
  • 24
    7661401 PIN, COTTER
    PIN, COTTER
  • 25
    1910311 BRAKE, MASTER CYLINDER ASSY FOOT BANJO (IF BUILT BEFORE 1/05/04)
    BRAKE, MASTER CYLINDER ASSY FOOT BANJO (IF BUILT BEFORE 1/05/04)
  • 25
    1910791 BRAKE, MASTER CYLINDER ASSY FOOT BANJO (IF BUILT AFTER 1/05/04)
    BRAKE, MASTER CYLINDER ASSY FOOT BANJO (IF BUILT AFTER 1/05/04)
  • 26
    5410988 SEAL
    SEAL
  • 27
    1910499 BOLT BANJO (10MMX1.00)
    BOLT BANJO (10MMX1.00)
  • 28
    1910516 LINE BRAKE, FRONT MASTER CYLINDER TO REAR
    LINE BRAKE, FRONT MASTER CYLINDER TO REAR
  • 29
    7042075 SPRING
    SPRING
  • 30
    7670126 CLIP RETAINING, DUAL .250" LINE
    CLIP RETAINING, DUAL .250" LINE
  • 30
    1910680 CALIPER ASSY (DH4P W/INS PADS)
    CALIPER ASSY (DH4P W/INS PADS)
