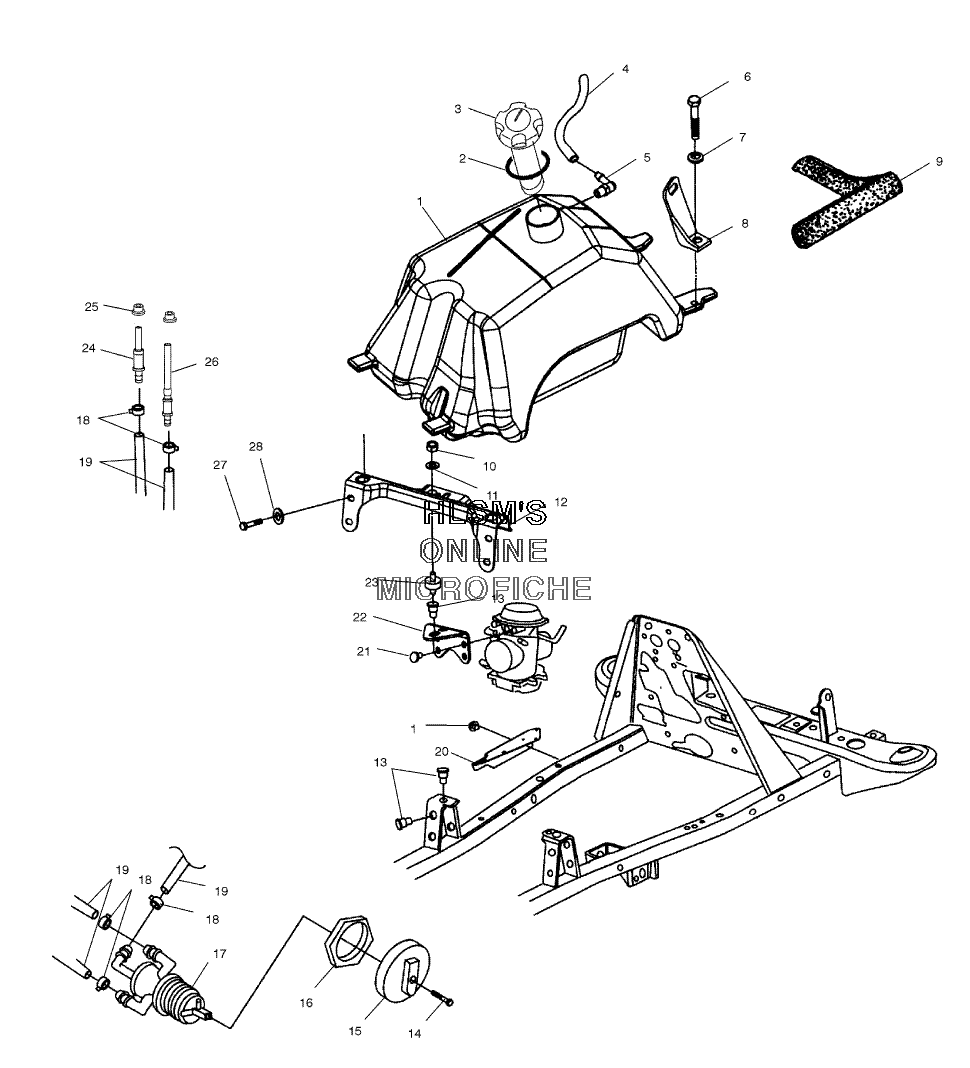

FUEL TANK AND CARBURETOR MOUNTING для Polaris MAGNUM 330 2X4 (A04CB32FC) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    2520362 FUEL TANK ASSY
    FUEL TANK ASSY
  • 2
    5812123 GASKET
    GASKET
  • 3
    2873626 GAUGE, FUEL KIT
    GAUGE, FUEL KIT
  • 4
    8360009-600 LINE, FUEL (600 CM.)
    LINE, FUEL (600 CM.)
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7512277 BOLT
    BOLT
  • 7
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 8
    5222154 BRAKET FUEL COVER MOUNT (LEFT)
    BRAKET FUEL COVER MOUNT (LEFT)
  • 8
    5222155 BRAKET FUEL COVER MOUNT (RIGHT)
    BRAKET FUEL COVER MOUNT (RIGHT)
  • 9
    5811899 FOAM SEAL, 17
    FOAM SEAL, 17
  • 10
    7542105 NUT HEXAGON
    NUT HEXAGON
  • 11
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    5245671-067 BRAKET, CARBURETOR SUPPORT (BLACK)
    BRAKET, CARBURETOR SUPPORT (BLACK)
  • 13
    7547069 NUTSERT, HEXAGON
    NUTSERT, HEXAGON
  • 14
    7517505 SCREW
    SCREW
  • 15
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 16
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 17
    7052161 VALVE, 3 WAY
    VALVE, 3 WAY
  • 18
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    8450040-600 LINE FUEL (600 CM.)
    LINE FUEL (600 CM.)
  • 20
    5245394-067 SHIELD SPLASH (LEFT/BLACK)
    SHIELD SPLASH (LEFT/BLACK)
  • 21
    3084205 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 22
    5245674-067 MOUNT, CARBURETOR (BLACK)
    MOUNT, CARBURETOR (BLACK)
  • 23
    3110050 MOUNT, CARBURETOR
    MOUNT, CARBURETOR
  • 24
    7052346 FITTING FUEL OUTLET
    FITTING FUEL OUTLET
  • 25
    7052362 GROMMET FLANGED
    GROMMET FLANGED
  • 26
    7052350 FITTING OUTLET, MAIN
    FITTING OUTLET, MAIN
  • 27
    7512276 BOLT
    BOLT
  • 28
    7555859 WASHER, FLAT
    WASHER, FLAT
