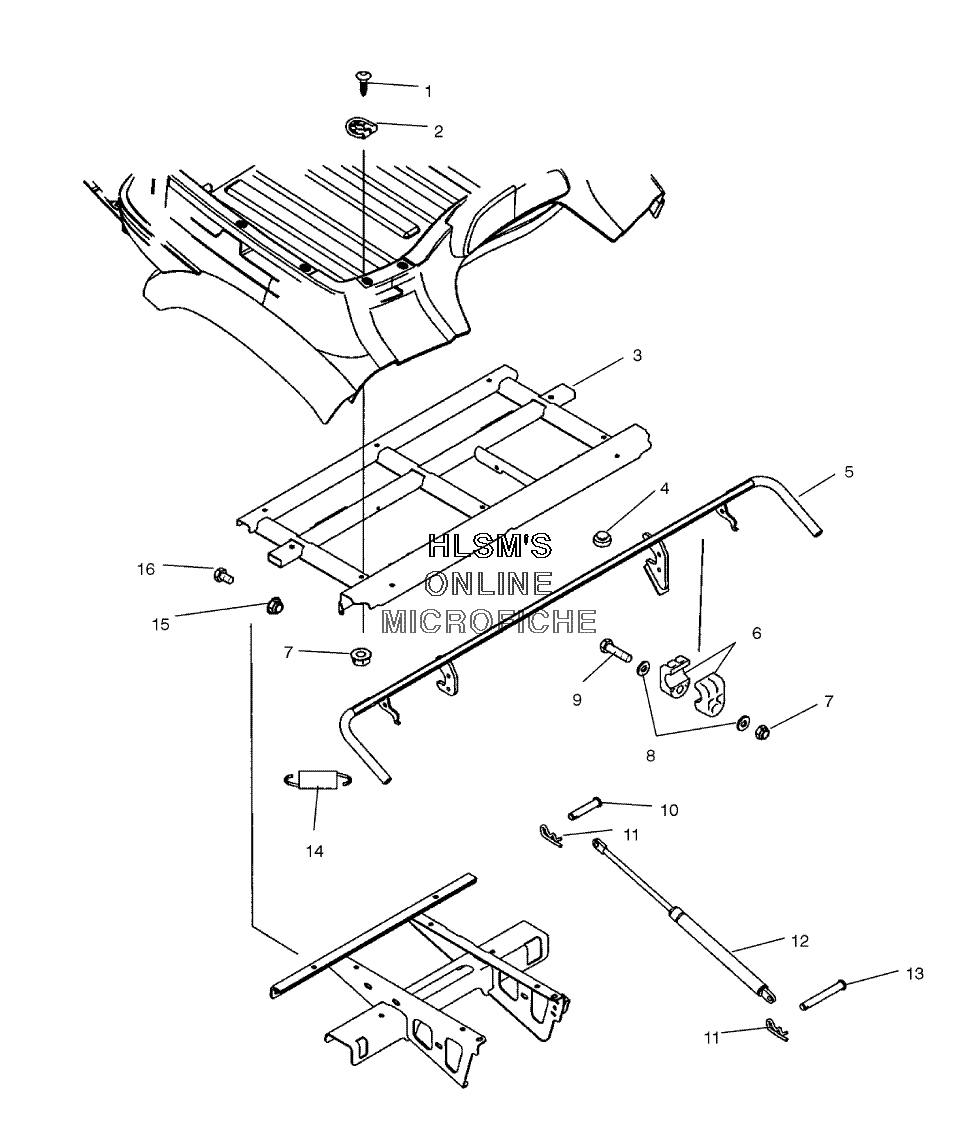

BOX FRAME для Polaris ATP 500 4X4 (A04JD50AB) (N.B.U. SUB. CAMO) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7518235 SCREW
    SCREW
  • 2
    7081101 RING TIE DOWN
    RING TIE DOWN
  • 3
    1014132-067 WELD BOX FRAM ATP KIT (IF BUILT BEFORE 9/02/03)
    WELD BOX FRAM ATP KIT (IF BUILT BEFORE 9/02/03)
  • 3
    1014655-067 WELD BOX FRAM ATP KIT (IF BUILT AFTER 9/02/03)
    WELD BOX FRAM ATP KIT (IF BUILT AFTER 9/02/03)
  • 4
    5412067 BUMPER RUBBER
    BUMPER RUBBER
  • 5
    1014146-067 WELD BOX LATCH (REAR/BLACK)
    WELD BOX LATCH (REAR/BLACK)
  • 6
    5434226 BUSHING BOX LATCH
    BUSHING BOX LATCH
  • 7
    7542324 NUT NYLOK
    NUT NYLOK
  • 8
    7558402 WASHER FLAT
    WASHER FLAT
  • 9
    7515319 BOLT
    BOLT
  • 10
    7661106 PIN CLEVIS (IF BUILT BEFORE 9/02/03)
    PIN CLEVIS (IF BUILT BEFORE 9/02/03)
  • 11
    7661644 PIN HITCH
    PIN HITCH
  • 12
    7042268 SHOCK DUMP BOX
    SHOCK DUMP BOX
  • 13
    7661163 PIN CLEVIS 1/2 (QTY. 2 IF BUILT AFTER 9/02/03)
    PIN CLEVIS 1/2 (QTY. 2 IF BUILT AFTER 9/02/03)
  • 14
    7041687 SPRING
    SPRING
  • 15
    7542449 NUT FLANGE LOCK
    NUT FLANGE LOCK
  • 16
    7512492 SCREW
    SCREW
