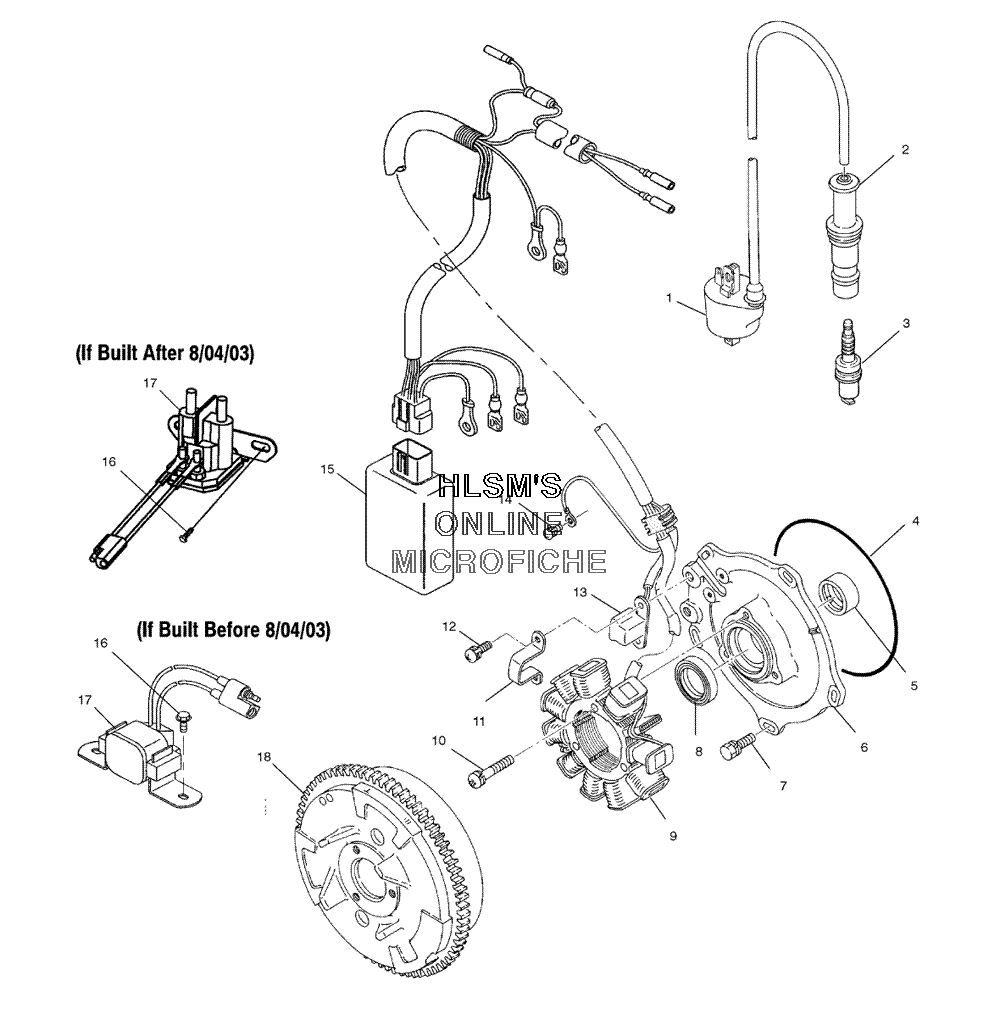

MAGNETO для Polaris ATP 500 4X4 (A04JD50AA) (CAMO GREEN MET.) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3084690 COIL ASSY IGNITION (INCL. 1, 2)
    COIL ASSY IGNITION (INCL. 1, 2)
  • 1
    3084979 COIL IGNITION
    COIL IGNITION
  • 2
    3084980 CAP SPARKPLUG
    CAP SPARKPLUG
  • 3
    3084997 SPARK PLUG BKRGE
    SPARK PLUG BKRGE
  • 4
    3084978 O-RING
    O-RING
  • 5
    3084972 BEARING METAL
    BEARING METAL
  • 6
    3089269 PLATE ASSY (INCL. 5, 6, 8-12, 14)
    PLATE ASSY (INCL. 5, 6, 8-12, 14)
  • 6
    3086981 PLATE
    PLATE
  • 7
    3081657 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 8
    3084973 SEAL OIL
    SEAL OIL
  • 9
    3087168 STATOR (INCL. 13)
    STATOR (INCL. 13)
  • 10
    3086985 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 11
    3085554 BAND PULSE
    BAND PULSE
  • 12
    3084976 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 13
    3085360 COIL PULSER
    COIL PULSER
  • 14
    3081256 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 15
    3087169 CDI SYSTEM
    CDI SYSTEM
  • 16
    3085359 BOLT FLANGE
    BOLT FLANGE
  • 17
    3087196 SWITCH MAGNETIC (IF BUILT BEFORE 8/04/03)
    SWITCH MAGNETIC (IF BUILT BEFORE 8/04/03)
  • 17
    4010930 SWITCH MAGNETIC (IF BUILT AFTER 8/04/03)
    SWITCH MAGNETIC (IF BUILT AFTER 8/04/03)
  • 17
    7542105 NUT HEXAGON (IF BUILT BEFORE 12/15/03)
    NUT HEXAGON (IF BUILT BEFORE 12/15/03)
  • 17
    7547283 NUT HEXAGON JAM Y (IF BUILT AFTER 12/15/03)
    NUT HEXAGON JAM Y (IF BUILT AFTER 12/15/03)
  • 17
    7552801 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 18
    3087166 FLYWHEEL, W/RING GEAR
    FLYWHEEL, W/RING GEAR
